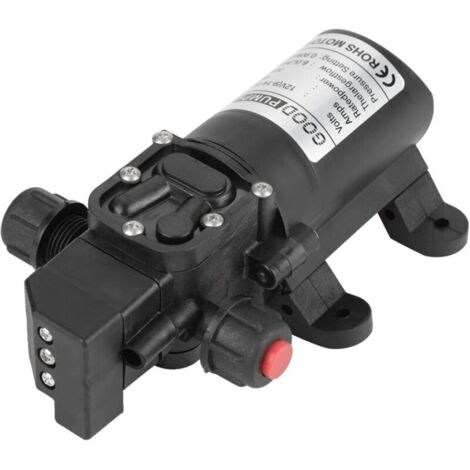

Miniature 12V/24V Electric Diaphragm Pump – High-pressure self-priming water pump, automatic protection, adjustable flow rate up to 6 L/min, for washing, spraying and water systems

~~£73.06~~

Of which environmental contribution £0.01 including VAT.

Sold by Sinocor GmbH

Product information

Description

General Description

This miniature electric diaphragm pump is a compact and powerful solution designed to meet a wide variety of domestic and industrial applications. Operating with a DC motor (12V or 24V), it offers stable performance, simple installation, and exceptional durability. Thanks to its self-priming system and sealed design, it guarantees reliable operation in dry and well-ventilated environments.

Technical Specifications

Adjustable Flow Rate: 0.1 to 6 L/min
Maximum Pressure: 130 PSI (9.0 bar)
Dimensions: 165 × 100 × 62 mm
Fluid Temperature: 0 to 100 °C
Connections: 10 mm (threaded or push-in)

Applications

This pump is ideal for spraying systems, car washes, solar water transfer systems, filtration, dosing or filling devices, and any system requiring precise flow and constant pressure. It is only used with non-corrosive liquids, free of oil and solid particles (pH between 5 and 8).

Other information

Self-priming function for easy starting
Automatic overpressure protection
Adjustable pressure and flow rate as needed
Low energy consumption, stable and quiet operation
Compact, lightweight and easy to install
Compatible with a wide range of domestic and professional applications

Features

Brand
TEHTUY
Integrated non-return valve
Yes
Max. flow rate
6 l/min
Height
6.2 cm
Width
10 cm
Length
16.5 cm
Material
Leather
Power
1 W
Voltage
12 V
Irrigation pump type
High pressure
ManoMano Reference
ME98942299
MMID
820297369698
Product code
mano-HWLX-06953
EAN
6282768359949
