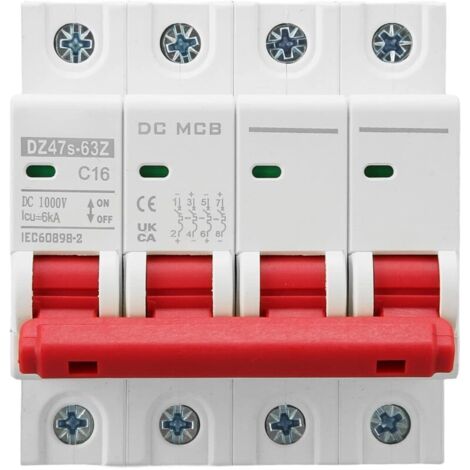

Miniature 4P Solar PV System Circuit Breakers 16A DIN Rail Mounting 6000A Segmented Capacity DC1000V DZ47s 63Z C16
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
AUXILIARY ARC EXTINGUISHING SYSTEM: DC arc extinguishing is more difficult than AC arc extinguishing; this DC circuit breaker has an auxiliary magnetic arc extinguishing system, which makes it easier.
IMPORTANT PARAMETER: Model: DZ47s 63Z; Material: PA66; Rated Current: 16A; Rated Voltage: 1000VDC;
35MM DIN RAIL MOUNTING: The circuit breaker features a modular design, uses screw clamps, and is designed for 35mm DIN rail mounting.
Fast Tripping: The electromagnetic tripping system trips immediately when the circuit is short-circuited, effectively protecting circuit safety.
Multifunctional: The circuit breaker protects power distribution installations from overloads and short circuits and can also be used for control and isolation.
Model: DZ47s 63Z
Material: PA66
Rated Current: 16A
Voltage Rated: DC 1000V
Rated ultimate short-circuit breaking capacity (home Icn): 6000A
Applications: solar photovoltaic, electric motorcycle, electric car
Mechanical life: 20,000 cycles
Applicable temperature: -35°C to +70°C
Instructions for use:
1. Open the package and remove the product
2. Install the circuit breaker in the distribution box
3. Connect the wires to the circuit breaker and use
Package list:
1 miniature DC circuit breaker
IMPORTANT PARAMETER: Model: DZ47s 63Z; Material: PA66; Rated Current: 16A; Rated Voltage: 1000VDC;
35MM DIN RAIL MOUNTING: The circuit breaker features a modular design, uses screw clamps, and is designed for 35mm DIN rail mounting.
Fast Tripping: The electromagnetic tripping system trips immediately when the circuit is short-circuited, effectively protecting circuit safety.
Multifunctional: The circuit breaker protects power distribution installations from overloads and short circuits and can also be used for control and isolation.
Miniature DC Circuit Breaker, Solar PV System Isolator, DC Circuit Isolator, Mini DC Circuit Breaker, DC Disconnect Switch, DC Circuit Breaker
Item Type: Miniature DC Circuit BreakerModel: DZ47s 63Z
Material: PA66
Rated Current: 16A
Voltage Rated: DC 1000V
Rated ultimate short-circuit breaking capacity (home Icn): 6000A
Applications: solar photovoltaic, electric motorcycle, electric car
Mechanical life: 20,000 cycles
Applicable temperature: -35°C to +70°C
Instructions for use:
1. Open the package and remove the product
2. Install the circuit breaker in the distribution box
3. Connect the wires to the circuit breaker and use
Package list:
1 miniature DC circuit breaker
Features
- BrandTEHTUY
- Length1 cm
- Width10 mm
- Height10 mm
- Weight1 g
