General description

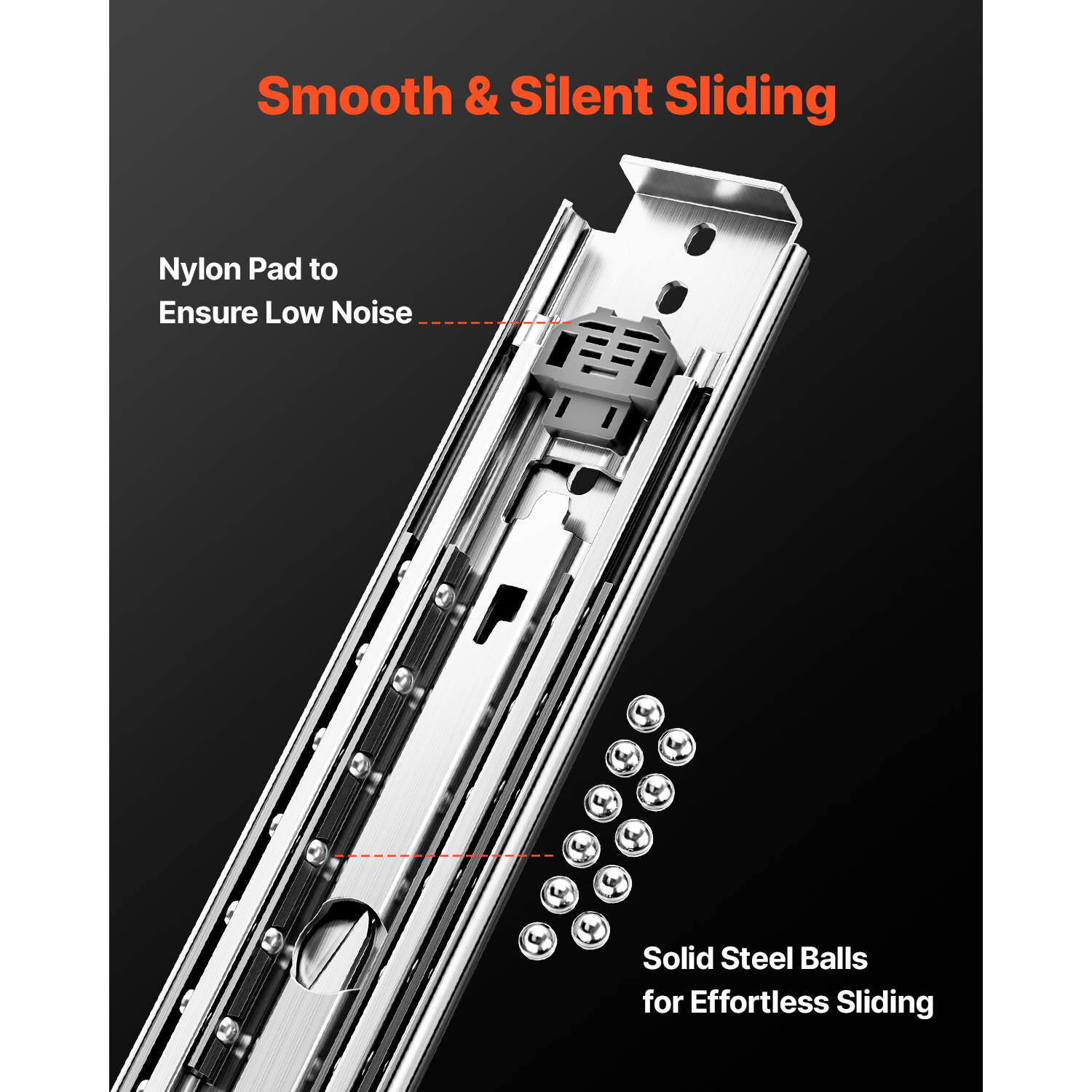

The Mophorn Full-Extend Drawer Slides are designed for heavy-duty applications, supporting up to 500 lbs. Constructed from durable steel, these slides ensure smooth operation with minimal noise. They are ideal for various uses, including cabinet storage, industrial drawers, and customized vehicles. The package includes clear installation instructions and necessary screws for easy setup.
Technical specifications
- Load Capacity: 500 lbs / 226.8 kg
- Load Capacity (Fully Extended): 343 lbs / 155.58 kg
- Suitable Drawer Length: 30.5" / 774 mm
- Extension Length: 30" / 762 mm
- Net Weight: 16.76 lbs / 7.6 kg

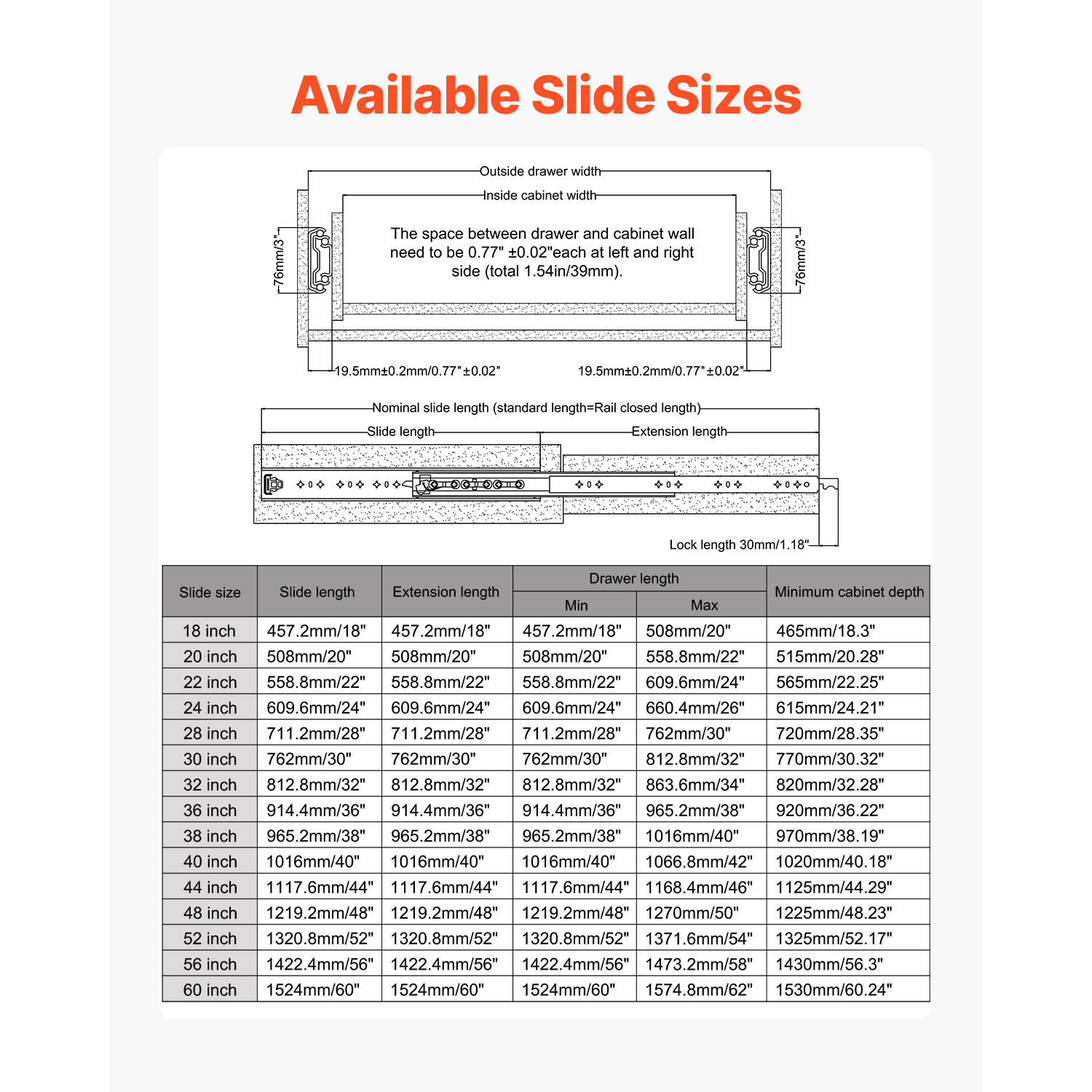

- Product Dimensions: 31 x 3 x 0.77" / 793 x 76 x 19.5 mm
Installation
For optimal installation, tighten the bolts connecting the slide and the drawer from the outer side inward. Similarly, secure the drawer to the cabinet by tightening the bolts from the inner side outward. The installation process is straightforward, aided by clear guidelines provided in the package.
Usage
These drawer slides are versatile and can be used in various applications, including:
- Cabinet storage
- Industrial drawers
- RVs and trucks
- Vending machines
- Household storage
