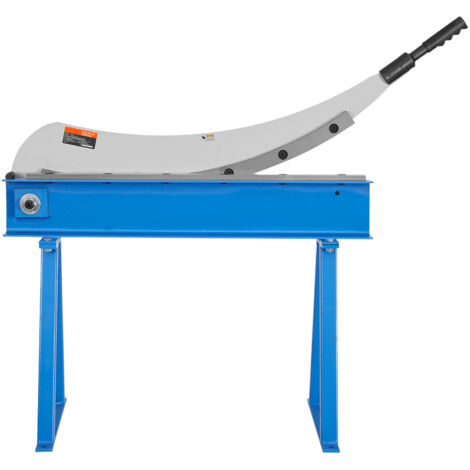

Mophorn 32" Manual Shear for Sheet Metal, Bench Shear Made of Q235 Material for Artisanal Work on Thick Steel with Roller Press

General description

Technical specifications

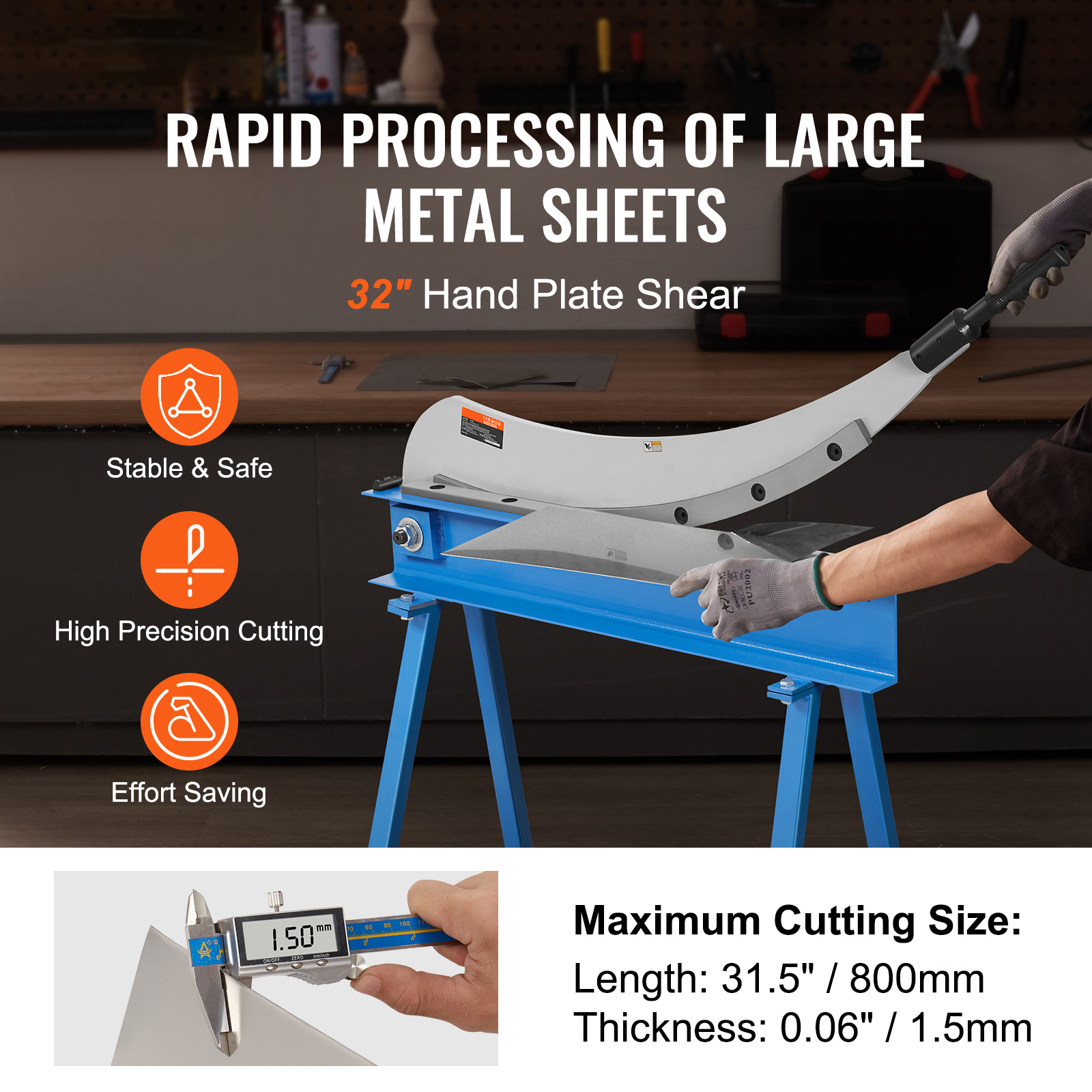

• Max Shearing Length: 31.5" / 800mm
• Max Shearing Plate Thickness: 0.06" / 1.5mm

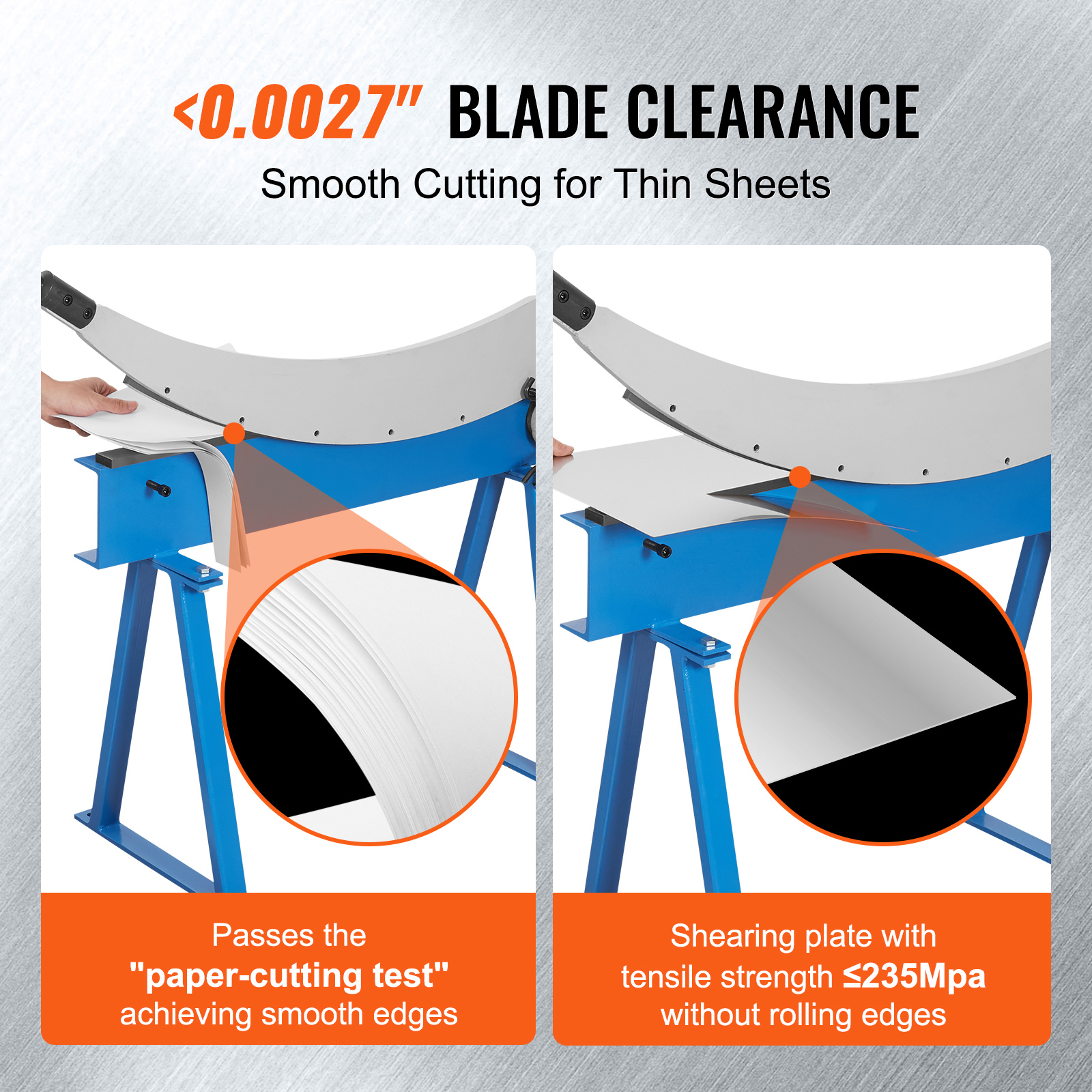

• Blade Clearance: <0.07mm (Cuts Paper)
• Blade Material: T10 Steel
• Blade Hardness: >52HRC
• Blade Thickness: 0.47" / 12mm
• Product Weight: 92.15lbs / 41.8Kg

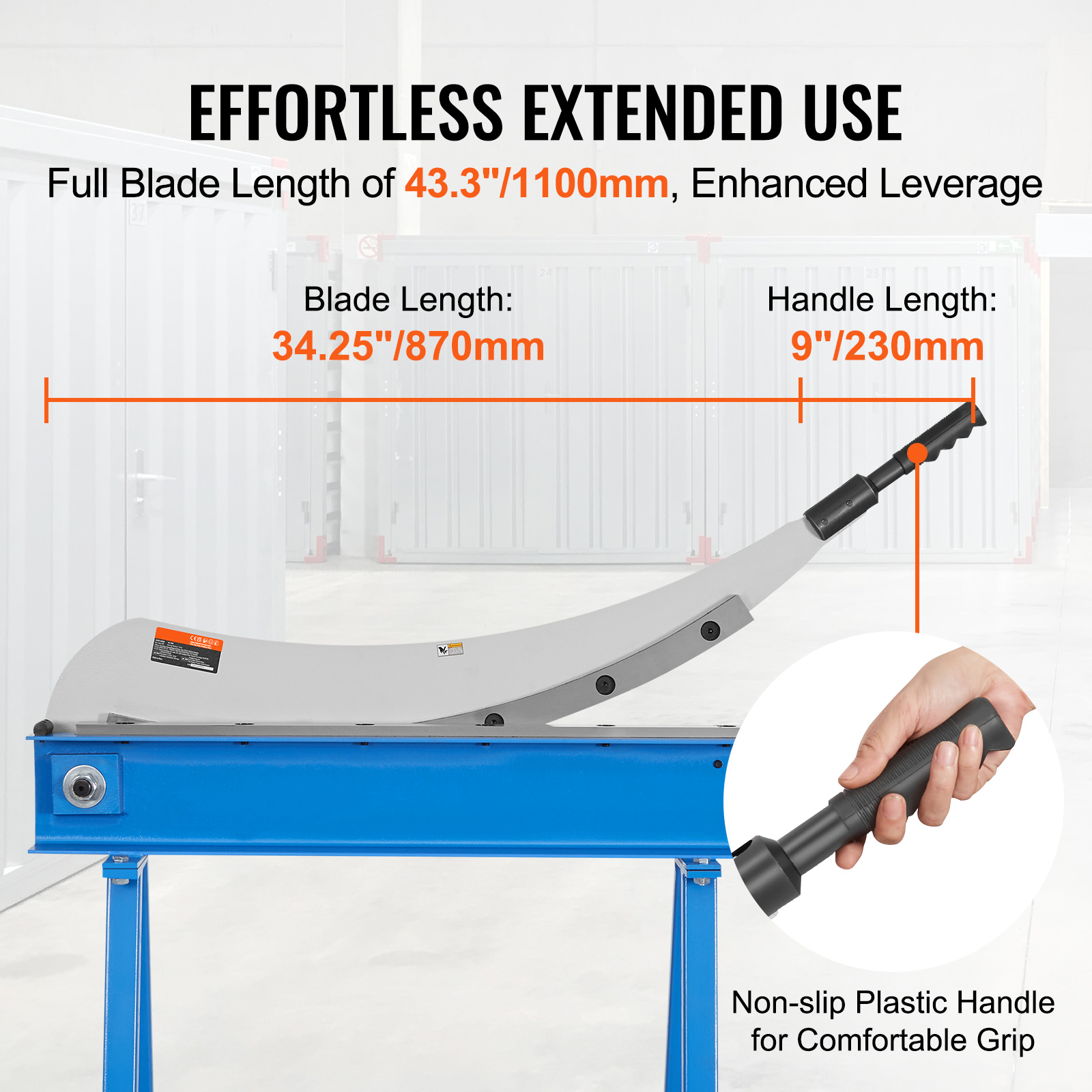

• Handle Length: 9" / 230mm

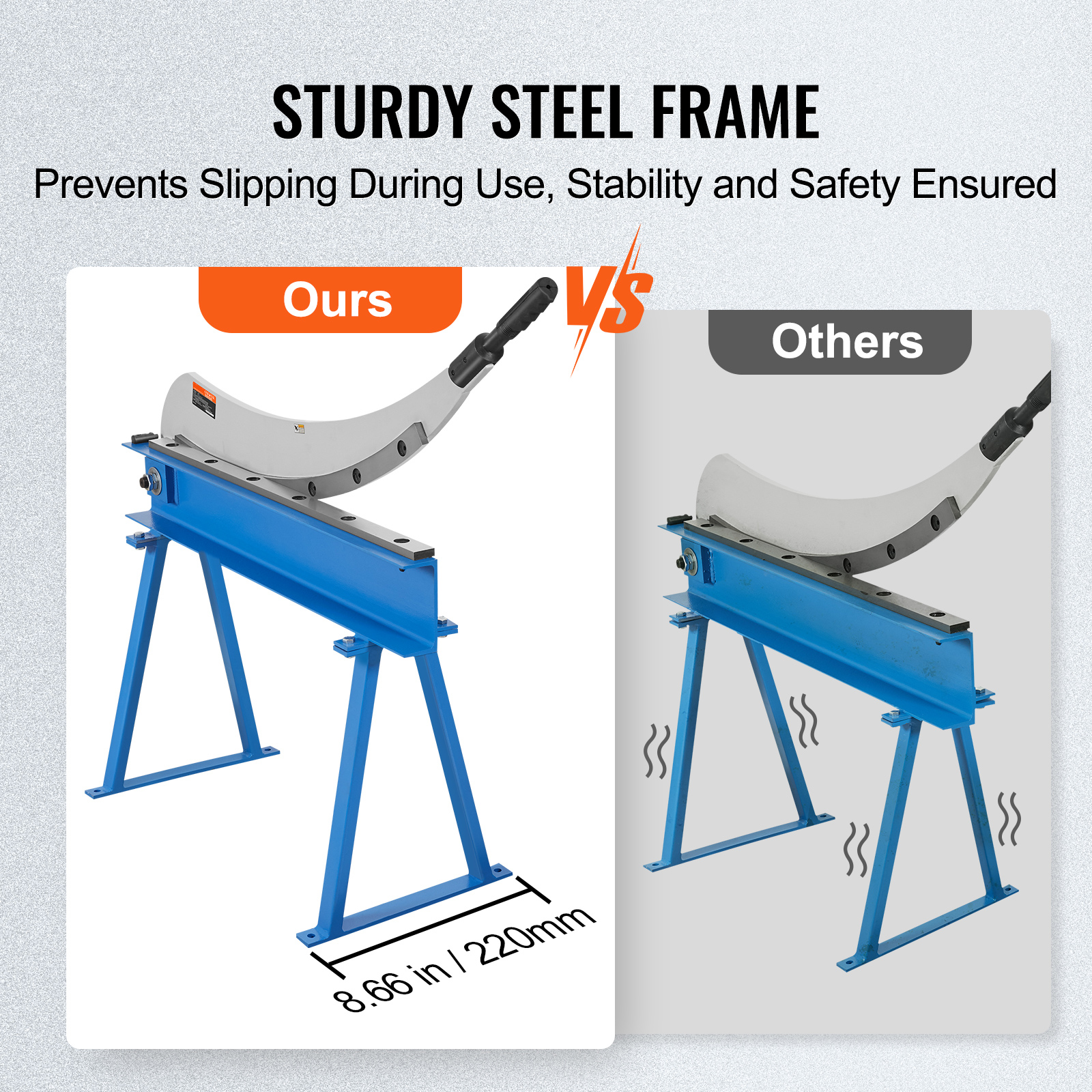

• Product Dimensions: 53.15x8.66x41.34" / 1350x220x1050mm
• Primary Material: Q235, T10
• Shear Plate Tensile Strength: ≤235Mpa
• Surface Treatment: Painted, Blackened Treatment, Blue

Installation

• Base equipped with pre-drilled mounting holes for easy installation on a workbench.

Usage

• Designed for cutting various materials including mild steel, aluminum, aluminum alloys, electro-galvanized sheets, tinned plates, composite steel, and color-coated steel.
• Extended handle design allows for greater force application with minimal effort, making it suitable for thick or tough materials.
• Delivers clean, burr-free edges, minimizing material waste and preventing damage.
