Mophorn Air Hydraulic Pump Power Pack Unit, 10,000 PSI, 103 In³ Capacity, Heavy-Duty All-Metal Construction, Air Hydraulic Foot Pump for Industrial Applications

10,000 PSI Air Hydraulic Foot Pump

Efficient Foot Control with Robust Performance

Designed for maximum efficiency and reliability, this air-powered hydraulic foot pump delivers high-pressure output with a 1.6L oil tank and a 6.56 ft hydraulic hose. The foot pedal control allows for hands-free operation, giving you precise control over hydraulic applications. Built for durability and consistent performance, this pump is ideal for automotive body shops and other demanding environments where compact and powerful hydraulic pressure is needed.

• Essential Specifications

• Hands-Free Foot Pedal Operation

• Compact and Durable Construction

• Includes Heavy-Duty Oil Hose

• 10,000 PSI for Versatile Applications

Key Features

• Versatile High Pressure

• Designed to handle pressures up to 10,000 PSI, this hydraulic foot pump is ideal for various industrial and construction applications. It efficiently powers single-acting cylinders, making it suitable for a range of rams, presses, and hydraulic pullers.

• Robust and Compact Build

• Constructed with an aviation-grade aluminum pump core and a durable metal shell, this pump is built to withstand demanding industrial environments. The 1.6L ± 0.1L oil tank supports a maximum oil output of 1.3 liters, while the internal relief valve ensures hydraulic protection.

• User-Friendly Foot Operation

• Featuring a foot-actuated design, this air hydraulic pump allows for hands-free operation, enhancing efficiency and reducing operator effort. Its two-stage release mechanism offers either quick or controlled ram return, minimizing hydraulic shock.

• Enhanced Durability with Oil Pipe

• Included is a 6.56 ft / 2 m high-pressure oil pipe reinforced with embedded steel wires and a thick outer layer. The cast steel oil port ensures longevity and leak-proof performance.

• Comprehensive Technical Specifications

• The pump operates with a flow rate of 0.8 liters/min, and its input air pressure ranges from 0.7-1 MPa. It supports various hydraulic oils (HM22/HM32) and features a 3/8" NPT output oil hole, making it highly adaptable for different needs.

Durable Construction

Crafted from high-quality aviation aluminum, the pump core is designed to withstand compression, vibration, and corrosion. The robust metal casing further protects the internal components and maintains structural integrity.

High-Pressure Hydraulic Hose

The included hydraulic hose measures 6.56 ft / 2 m and is built to withstand high pressure, with a 3/8 NPT quick hydraulic coupler ensuring secure and efficient connections.

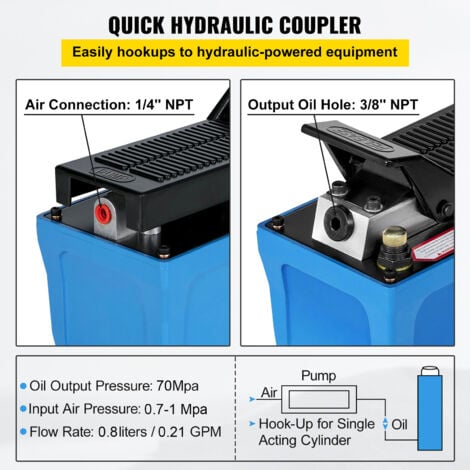

Standard Air and Oil Connections

Equipped with a 1/4'' NPT air inlet and a 3/8'' NPT oil outlet, this air hydraulic pump minimizes oil leakage and seamlessly connects to hydraulic-powered equipment with its 3/8-inch female NPT oil port..

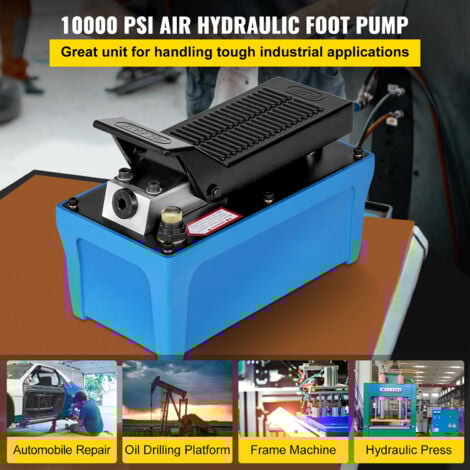

Versatile Applications

Ideal for various tasks including heavy machinery rigging, auto repair, oil rigging, and machine maintenance, this air hydraulic foot pump effectively powers frame machines, hydraulic presses, and more.

Effortless Foot Pedal Operation

The high-intensity frame machine pump allows for easy pumping, load holding, and release using the foot pedal. This design saves time and effort while providing precise control with hands-free operation.

Generous Oil Capacity

Featuring a 1.6L ± 0.1L aluminum alloy oil tank with a capacity of 98 cubic inches / 1.6 liters, this hydraulic air foot pump delivers reliable performance and ample oil supply for your equipment needs.

Specification

• Type: Air Powered Hydraulic Pump

• Action: Single Acting

• Control: Foot pedal pump - Release pressure to return fluid

• Flow Rate: 0.8 liters per minute (0.21 gallons per minute)

• Hydraulic Oil Type: HM22/HM32

• Oil Capacity: 1.6 liters (1600 cc) (98 cubic inches)

• Maximum Oil Output: 1.3 liters

• Oil Output Pressure: 70 MPa

• Input Air Pressure: 0.7-1 MPa

• Air Connection: 1/4" Female NPT

• Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler

• Includes Hydraulic Hose: 2 m (6.56 ft) with 3/8'' NPT - Quick hydraulic coupler

• Shell Material: Reinforced Aluminum Alloy

• Fuel Tank Capacity: 1.6 liters

• Capacity Tolerance: ± 0.1 liters

• Pressure Range: ≥ 0.5

• Max Output Hydraulic Pressure: 700 kg/square cm (10,000 psi)

• Weight: 8.04 kg (17.72 lbs)

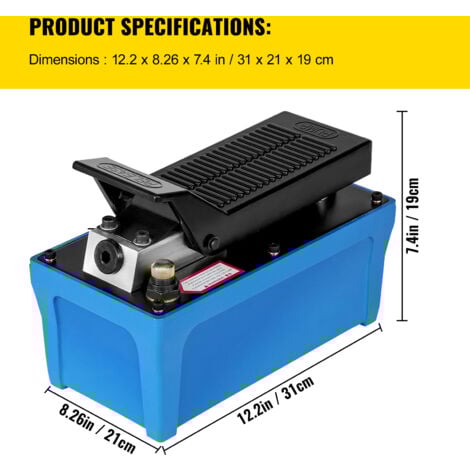

• Dimensions (L x W x H): 31 x 21 x 19 cm (12.2 x 8.26 x 7.4 inches)/li>

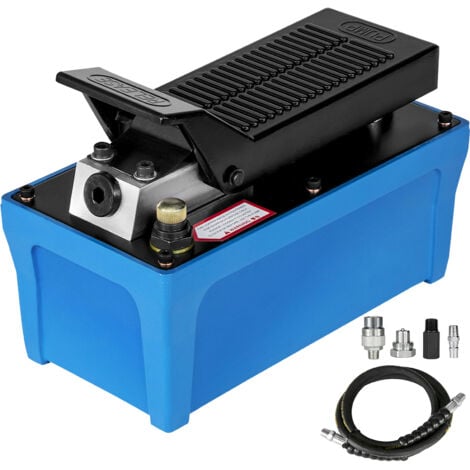

Package Content

• 1 x Air Powered Hydraulic Pump

• 1 x High Pressure Oil Pipe

• 1 x Air Gun Connector with Air Pipe

• 2 x Quick Connector

• 1 x User Manual
