General description

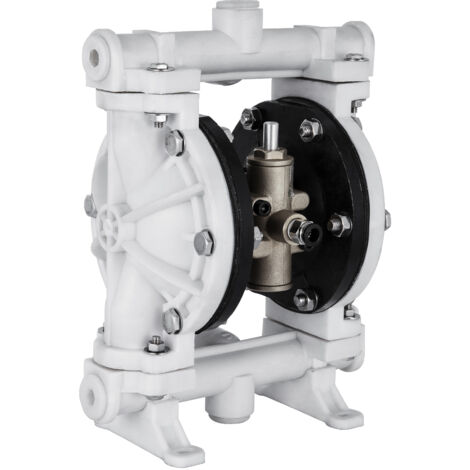

The Mophorn Air-Operated Double Diaphragm Pump is designed for efficiency and reliability, featuring a durable polypropylene body and dual PTFE diaphragms that provide exceptional corrosion resistance and leak-free operation. This pump is ideal for transferring viscous and flammable liquids, making it suitable for various applications across industries such as petroleum, metallurgy, mining, and water treatment.
Technical specifications
- Body Material: Polypropylene
- Max Suspended Solids: 2.38 mm (3/32 inch)
- Outlet Port: 12.7 mm / 1/2 inch
- Max Head: 69 m (226.4 ft)
- Max Flow Rate: 9.5 L/min (2.5 GPM)
- Suction: 0-5 m (0-16.4 ft)
- Air Inlet Size: 6.35 mm / FNPT 1/4 inch
- Max PSI: 5.5 bar (80 psi)
- Temperature Rating: -29℃ ~ 65℃ (-20℉ ~ 150℉)
- Inlet Port: 12.7 mm / 1/2 inch
- Self-Priming Dry: 3 m (10 ft)
- Self-Priming Wet: 4.6 m (15 ft)
- Model: QBY-15PP
- Ball Material: Santoprene®
Usage
This diaphragm pump is capable of transferring a wide range of fluids, including waste oil, alcohol, hydraulic fluid, gasoline, diesel, detergent, and drinking water, providing versatility for different applications.
