General description

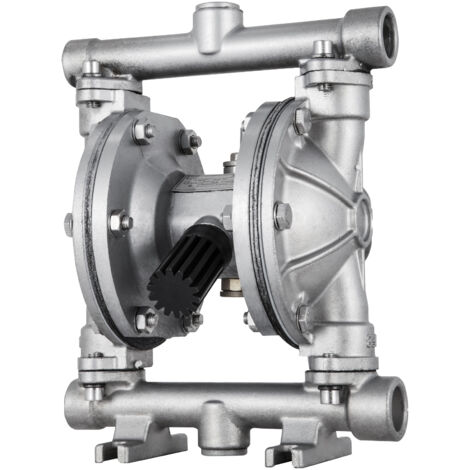

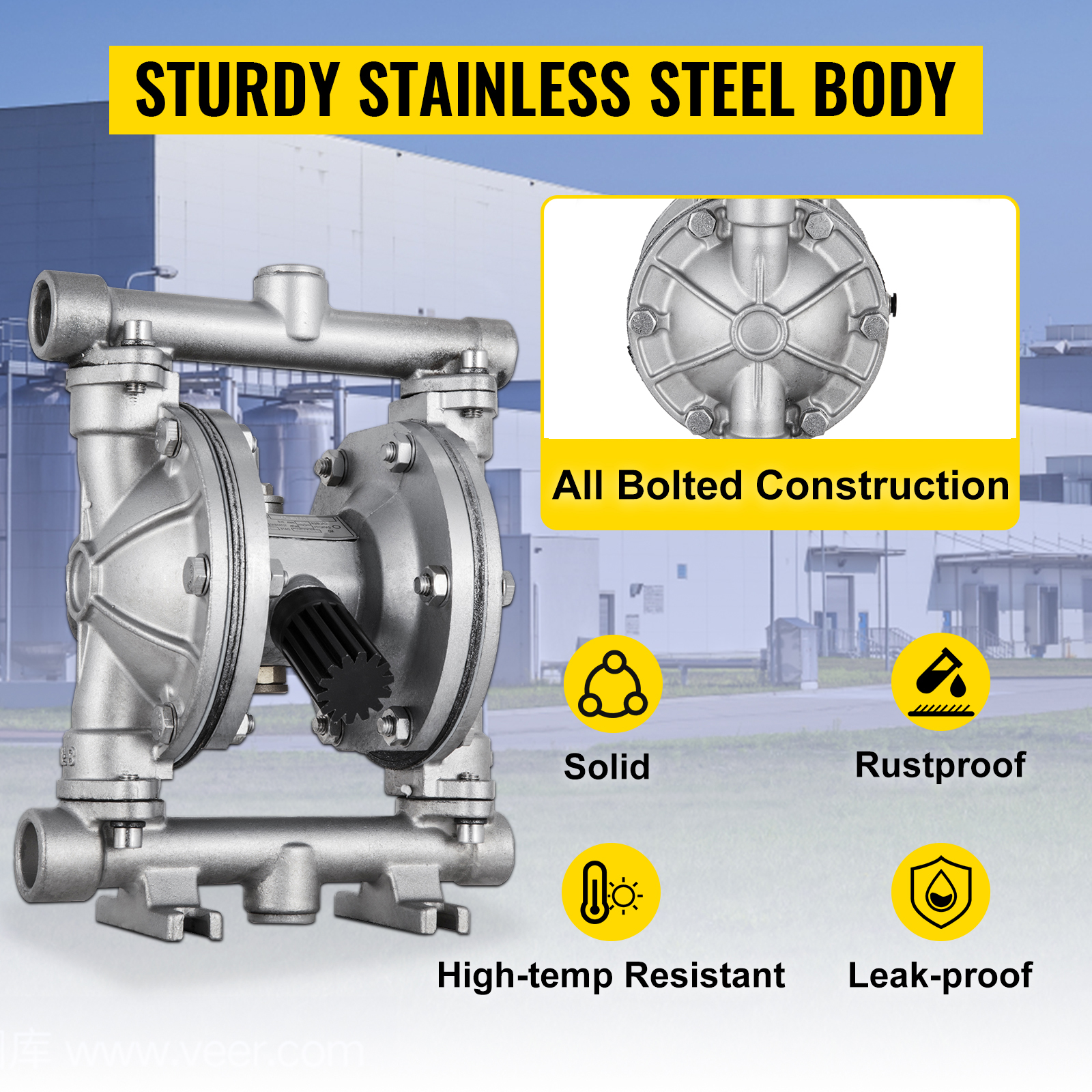

VEVOR Air-Operated Double Diaphragm Pump is designed for efficient transfer of petroleum, diesel, oil, and low viscosity fluids. Featuring a robust stainless steel body and double PTFE diaphragms, this pump ensures durability and corrosion resistance. With a maximum flow rate of 3 GPM and a pressure capacity of up to 90 PSI, it is ideal for handling viscous and flammable liquids.Technical specifications
- Model: QBK-15P
- Pump Body Material: Stainless Steel

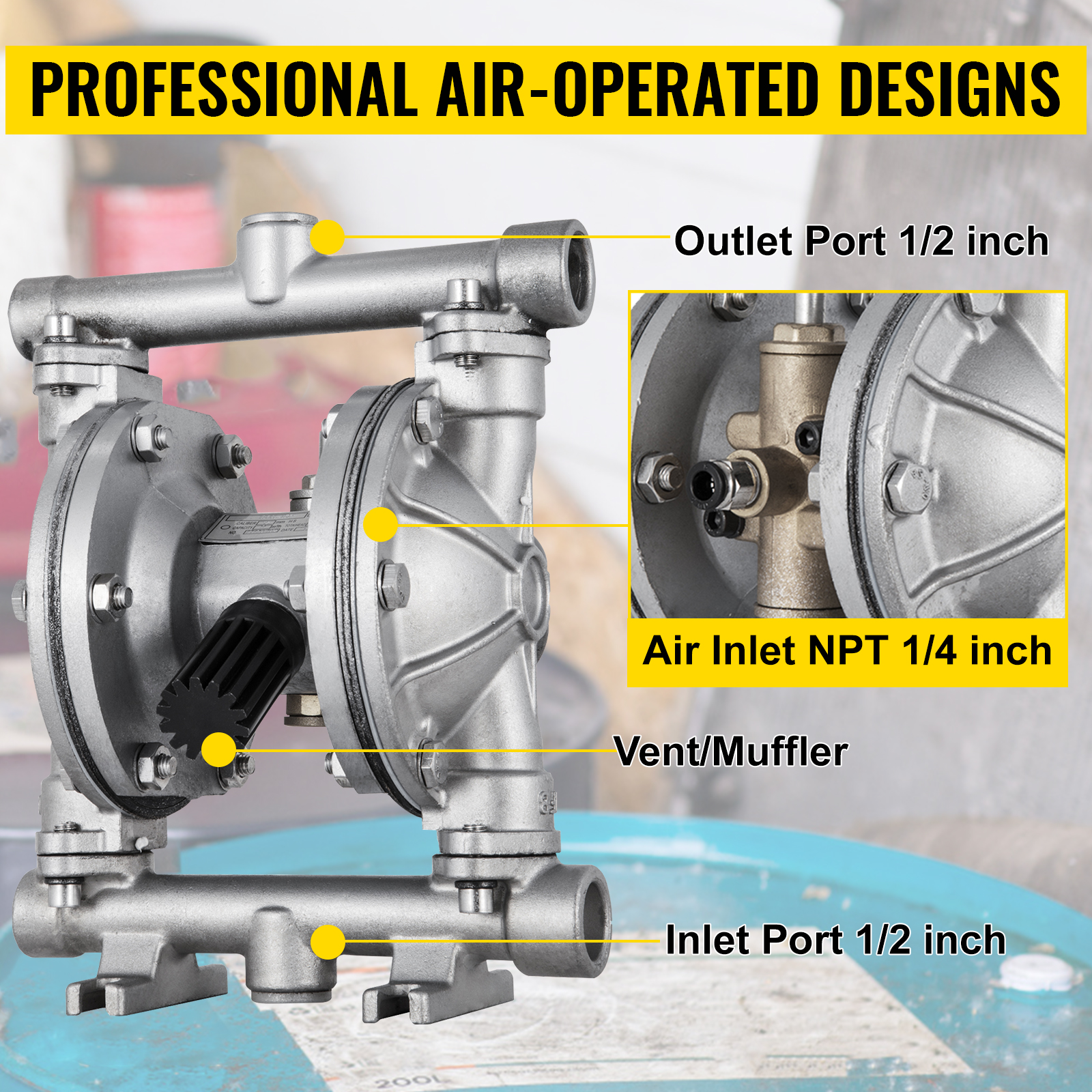

- Inlet Port: 1/2 inch (12.7 mm)
- Outlet Port: 1/2 inch (12.7 mm)
- Air Inlet Size: 1/4 inch (6.35 mm)
- Gas Nozzle: 0.32 inch (8 mm)
- Max Suspended Solids: 1/8 inch (3.18 mm)
- Max Flow Rate: 3 GPM
- Suction: 0-5 m (0-16.4 ft)
- Max Head: 196.85 ft/60 m ±15%
- Max PSI: 90 psi
- Max Fluid Temperature: 150 ℉ (66 ℃)
- Average Air Consumption: 10 CFM
Compatibility and accessories
- 1 x Air-Operated Double Diaphragm Pump
- 1 x Product Manual
