General description

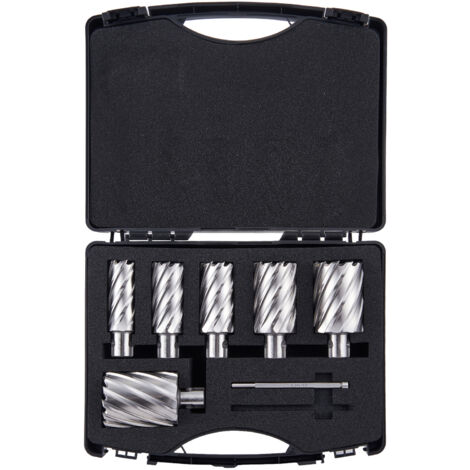

The Mophorn Annular Cutter Set is designed for effortless cutting in various projects. Made from high-quality M2AL steel, these mag drill bits provide exceptional durability and performance. The set includes a portable case lined with protective foam for safe transport. With a unique geometric blade design, these cutters excel at layered circular cuts, enhancing energy efficiency while reducing wear and preventing breakage. The innovative center pins secure your workpiece for accurate positioning, making this set a versatile addition to your toolkit.
Technical specifications
- Blade Length (Including Shank): 86.5 mm / 3.41 in
- Cutting Depth: 50.8 mm / 2 in
- Net Weight (Including All Accessories): 1.73 kg / 3.81 lbs
- Cutting Diameter Options: 25.4 mm, 28.6 mm, 31.8 mm, 38.1 mm, 44.5 mm, 50.8 mm
- Material: High-Speed Steel M2AL
- Hardness: HRC 62.5-67.5
- Item Model Number: 10190010216
- Shank Type: Universal Shank
- Carrying Case Dimensions: 280 x 235 x 70 mm / 11.02 x 9.25 x 2.76 in
Compatibility and accessories
- Includes 6 drill bits with Weldon shank sizes ranging from 1 to 2 inches
- Comes with 2 pilot pins (6.34mm x 103mm) for enhanced positioning and coolant management
- Portable carrying case for easy transport
Installation
The set features a quick release mechanism that allows for tool-free bit replacement in just one second, making it ideal for tasks that require agility, especially in elevated positions.
Usage
These HSS mag drill bits are suitable for various applications, including:
- Steel fabrication
- Bridge building
- Ship construction
- Drilling platforms
- Mechanical manufacturing
They accommodate a wide range of materials and are designed to optimize load distribution for quicker cuts.
Other information
Designed with both pointed and flat blades, these drill bits effectively manage chip removal, minimizing resistance and energy consumption during the cutting process.
