General description
The VEVOR Electrical Enclosure is a robust and reliable solution for protecting electrical components in both indoor and outdoor environments. Measuring 24 x 24 x 8 inches, this enclosure is constructed from high-quality cold-rolled carbon steel, ensuring durability and resistance to harsh weather conditions. It features a precise lock design, high-strength hinges, and a rain hood to safeguard your equipment from moisture and dust. Ideal for various applications, including construction sites and industrial settings, this enclosure guarantees optimal protection and consistent performance throughout the year.Technical specifications
- Model: ST6620
- Color: RAL 7035 (White Gray)
- Body Material: 0.06 in / 0.15 cm Cold-Rolled Carbon Steel
- Inner Plate: 0.06 in / 0.15 cm Galvanized Plate
- Finish: Powder Coating (Surface Pickling and Passivization)
- Ratings: NEMA Type 4
- Protection Grade: IP65, IK10
- Construction: Continuously Welded
- Ambient Temperature: -40 to 122℉ / -40 to 55°C
- Gasket Material: Seamless Foam/Nylon (washer or plug)
- Outer Dimensions (H x W x D): 24 x 24 x 8 in / 60 x 60 x 20 cm
- Inner Dimensions (H x W x D): 23.5 x 23.5 x 7 in / 59.7 x 59.7 x 17.7 cm
- Galvanized Backplate Dimensions (H x W): 22.2 x 22 in / 56.5 x 55 cm
- Mounting Hole Diameter (± 0.2 cm): 0.35 in / 0.9 cm
- Net Weight: 55.56 lbs / 25.2 kg

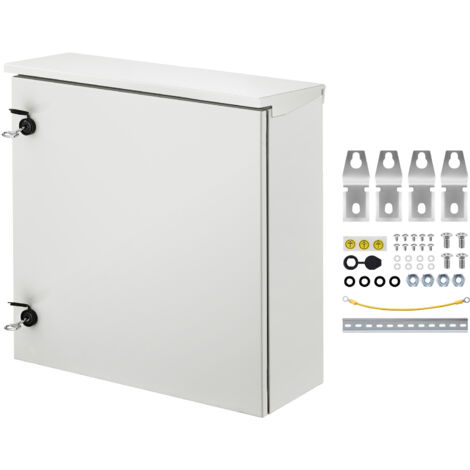

Compatibility and accessories
- 1 x Guide Rail
- 1 x Rain Hood
- 4 x Hanging Lug
- 1 x Gasket (For Enclosing Plate)
- 1 x Earth Wire
- 3 x Earth Label
- 2 x Key
- 8 x Plug
- 1 x Set of Accessories Package
- 1 x Set of Fasteners (Quantity Various on Type)
Installation

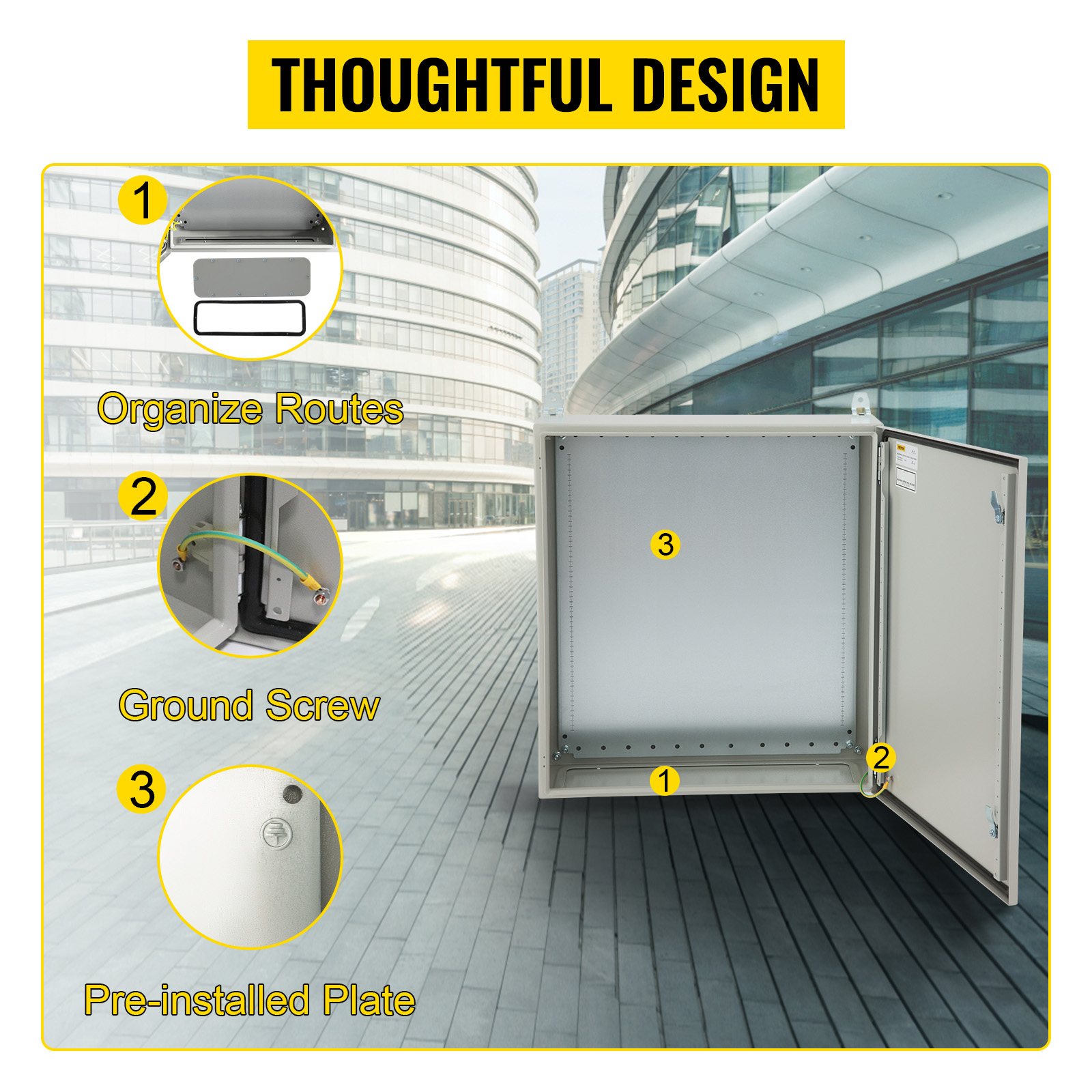

The VEVOR Electrical Enclosure features a detachable galvanized mounting backplate, making it easy to install electrical components. It includes four mounting holes on the back for quick wall mounting, ensuring a secure and stable setup.Usage
This electrical enclosure is suitable for a wide range of applications, including factories, construction sites, shopping malls, and other environments where circuit protection is essential. It effectively safeguards electrical components from dust, moisture, and other environmental factors.Other information
