VEVOR Heat Exchanger, 5"x 12" 50 Plates Brazed Plate Heat Exchanger, Copper/316L Stainless Steel Water To Water Heat Exchanger For Floor Heating, Water Heating, Snow Melting, Beer Cooling

Unleashing Ultimate Heat Efficiency

Our heat exchanger is compact and lightweight, offering excellent thermal performance. Made with 316L stainless steel and 99% copper brazing for durability, it is perfect for solar heating, oil heat recovery, engine cooling, and condensation.

• High-Quality Materials
• Efficient Heat Transfer
• Large Heat Exchange Area
• Tight and Leak-Proof

Unleashing Ultimate Heat Efficiency

Our heat exchanger is compact and lightweight, offering excellent thermal performance. Made with 316L stainless steel and 99% copper brazing for durability, it is perfect for solar heating, oil heat recovery, engine cooling, and condensation.

Key Features

• High-Quality Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. CE certified for reliable quality.

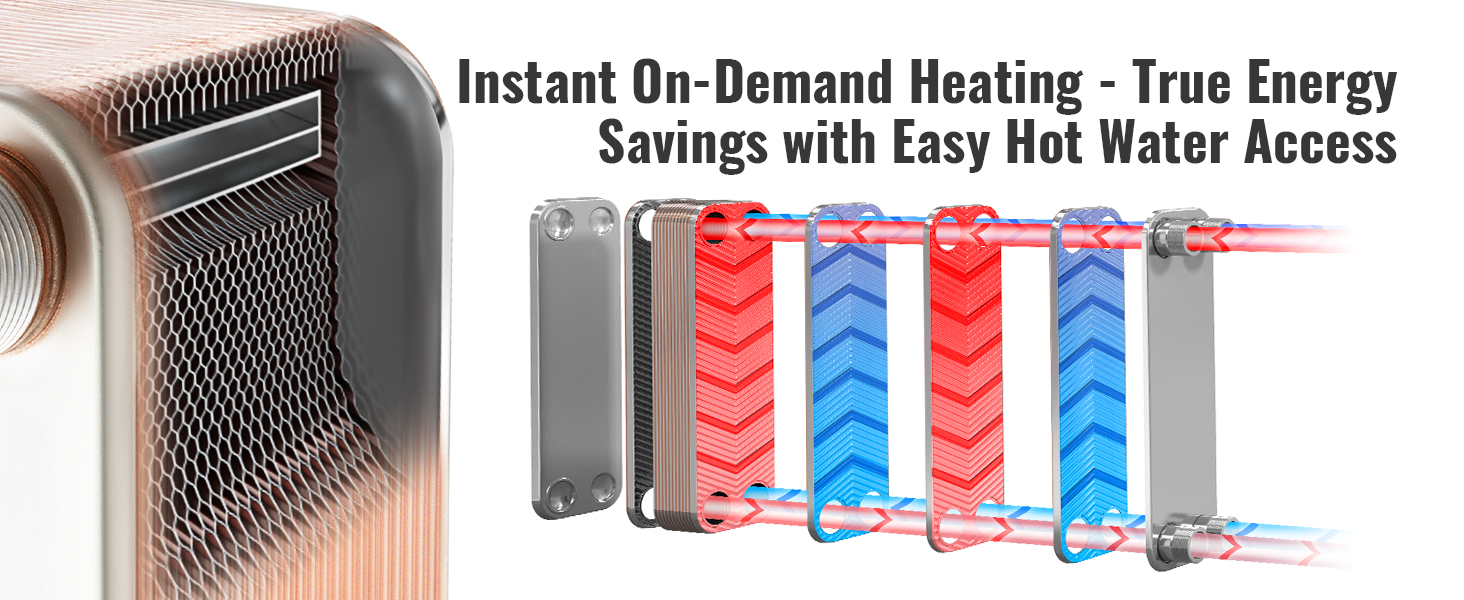

• Efficient Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling. With up to 99% heat efficiency, it generates 500-660K BTU per hour, saving pump power and electricity, reducing overall application costs.
• Large Heat Exchange Area: The heat exchanger features 5”x12” plates with up to 50 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292℉ to 392℉.
• Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability.
• Stable Installation: Includes two stainless steel brackets made of 304 stainless steel, offering excellent rust resistance and stability for easy and secure mounting of the heat exchanger.

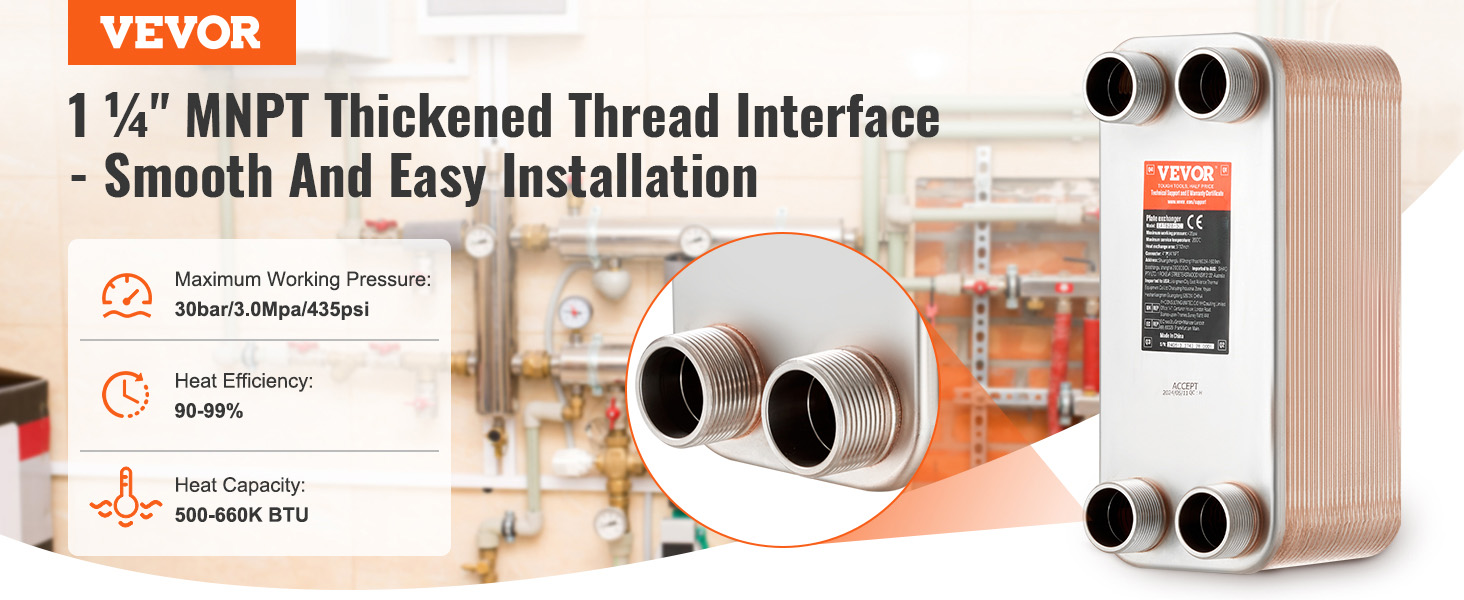

Our heat exchanger features a 1 ¼” MNPT interface with smooth threads for easy and convenient connection.

This heat exchanger heats liquids with irregular plates, requiring no electricity or wood burning, providing hot water at low cost, making it cost-effective and practical.

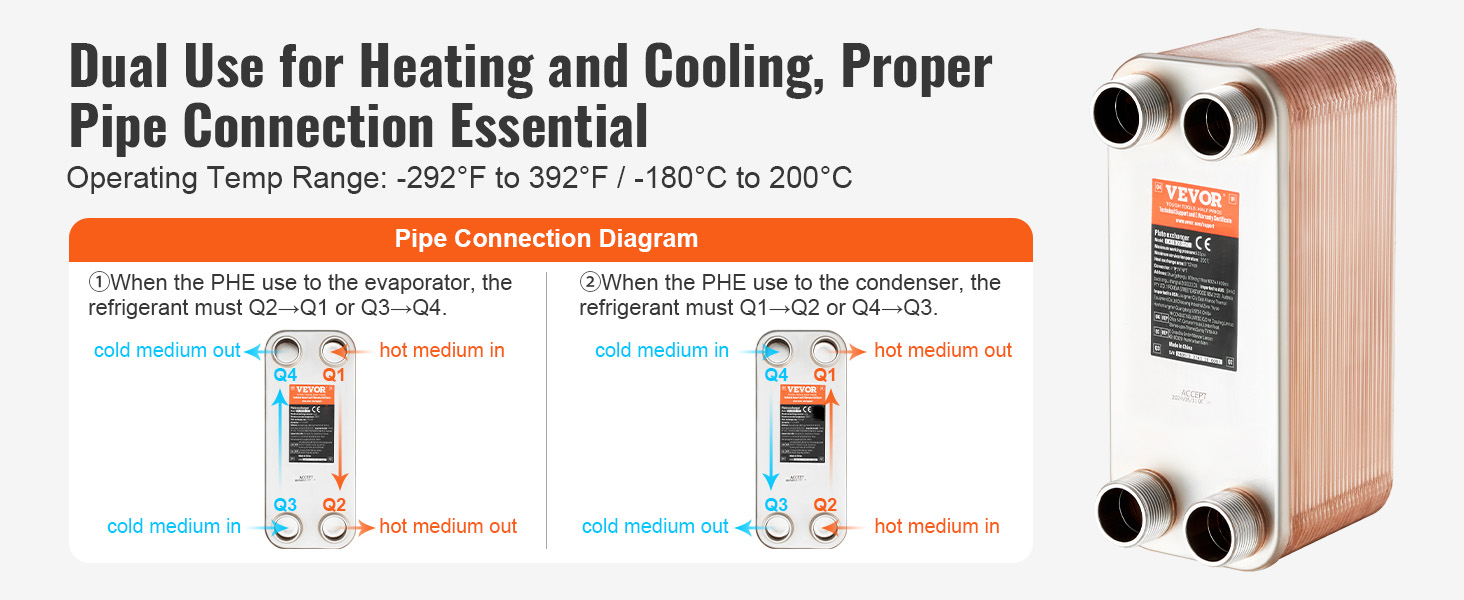

Equipped with 4 interfaces, the heat exchanger accommodates different media needs with correct piping and operates within -292℉ to 392℉ temperature range.

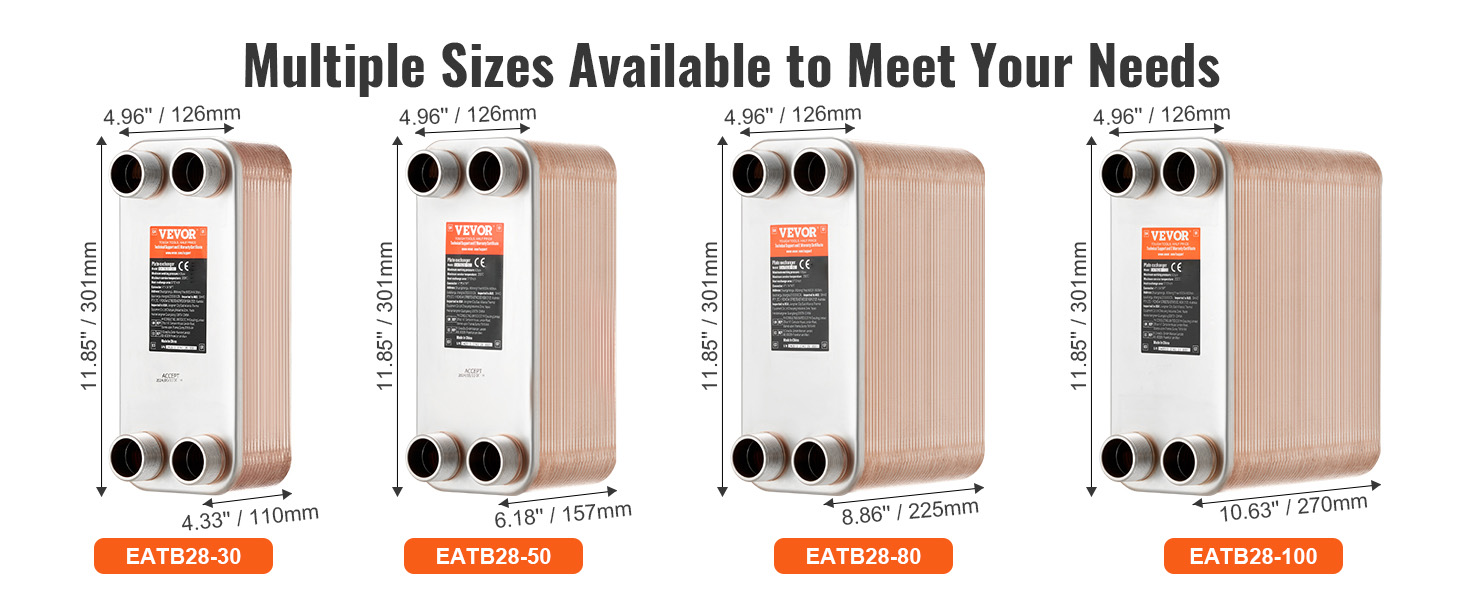

Our heat exchanger comes in 4 different sizes to meet your needs.

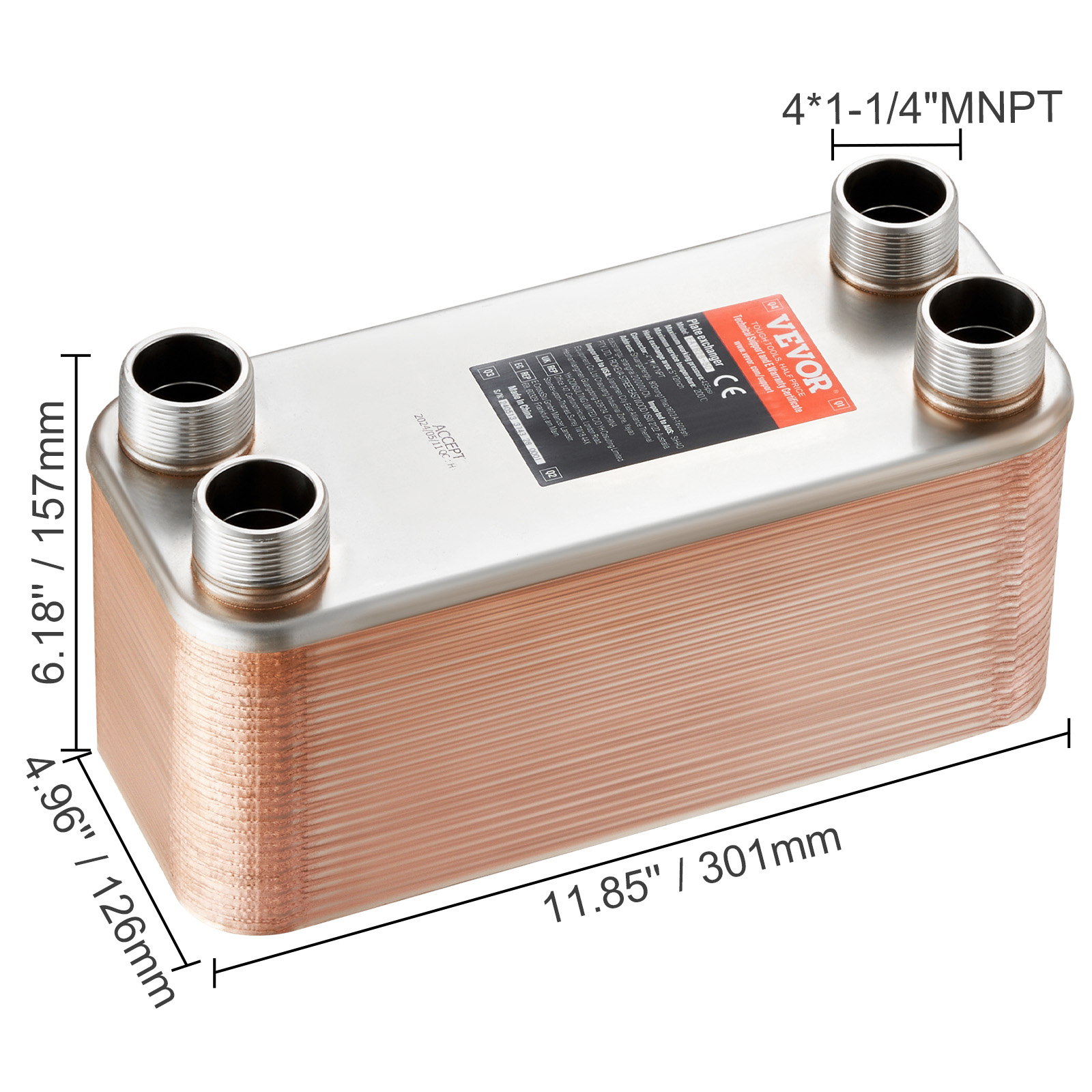

	Specification Model: EATB28-50 Thermal Efficiency: 90～99% Heat Capacity: 500-660K BTU Plate Area: 5x12 inch/ 127x305mm Plates Quantity(pcs): 50 Port: 4*1-1/4" MNPT External Thread Color: Stainless Steel + Copper Color Material: 304/316 Stainless Steel, Solder: 99.9% Copper Brazing Net Weight (with Accessories): 18.78lb / 8.52kg Product Dimensions (L x W x H): 11.85x4.96x6.18" / 301x126x157 mm
	Package Content Heat Exchanger x 1 Mounting Brackets x 2
