General description
This Mophorn Outdoor Channel Kit is a trench drainage system designed to efficiently collect and channel water away from various areas. Constructed from durable HDPE plastic, it offers reliable performance and longevity. The system features an interlocking connection for straightforward installation, making it ideal for gardens, driveways, pools, walkways, and other outdoor spaces.Technical specifications
- Model: PSG100*100
- Material: HDPE Plastic
- Color: Black
- Load Rate: B125
- Amount: 3 Pack

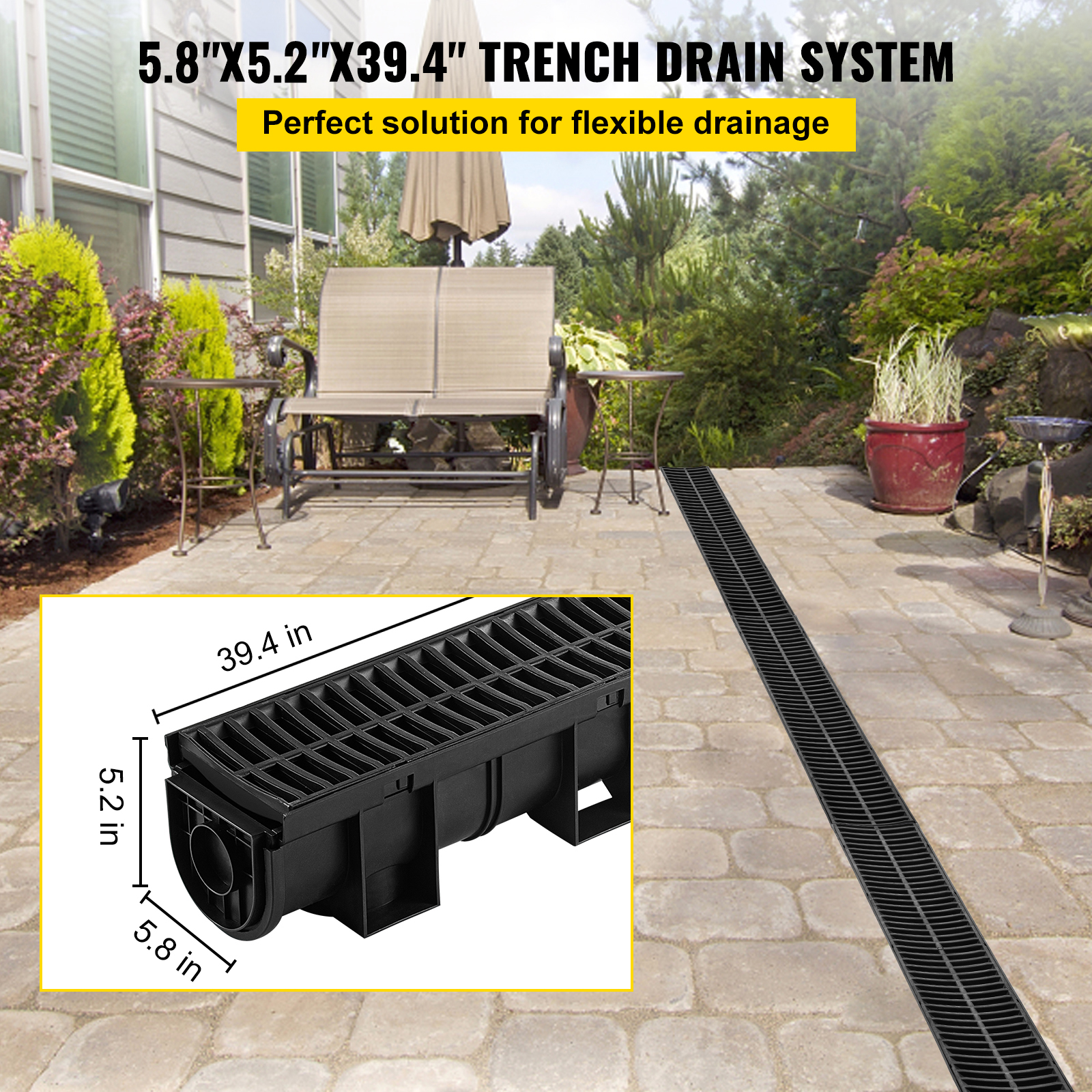

- External Item Dimensions: 5.9 x 5.1 x 39.4 inch / 15 x 13 x 100 cm
- Internal Item Dimensions: 3.9 x 3.9 x 39.4 inch / 10 x 10 x 100 cm
- Item Weight Each: 2.93 kg / 6.5 lbs
- Maximum Working Temperature: 120℃ / 248℉
- Minimum Working Temperature: -40℃ / -40℉
Compatibility and accessories

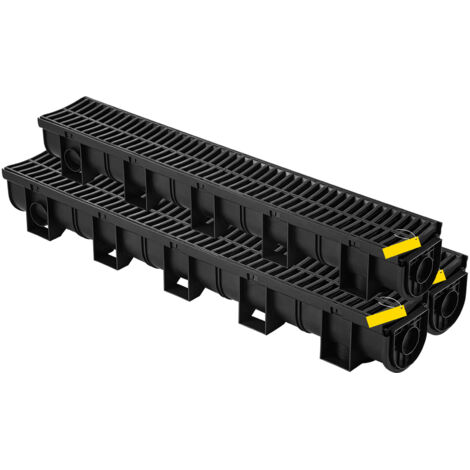

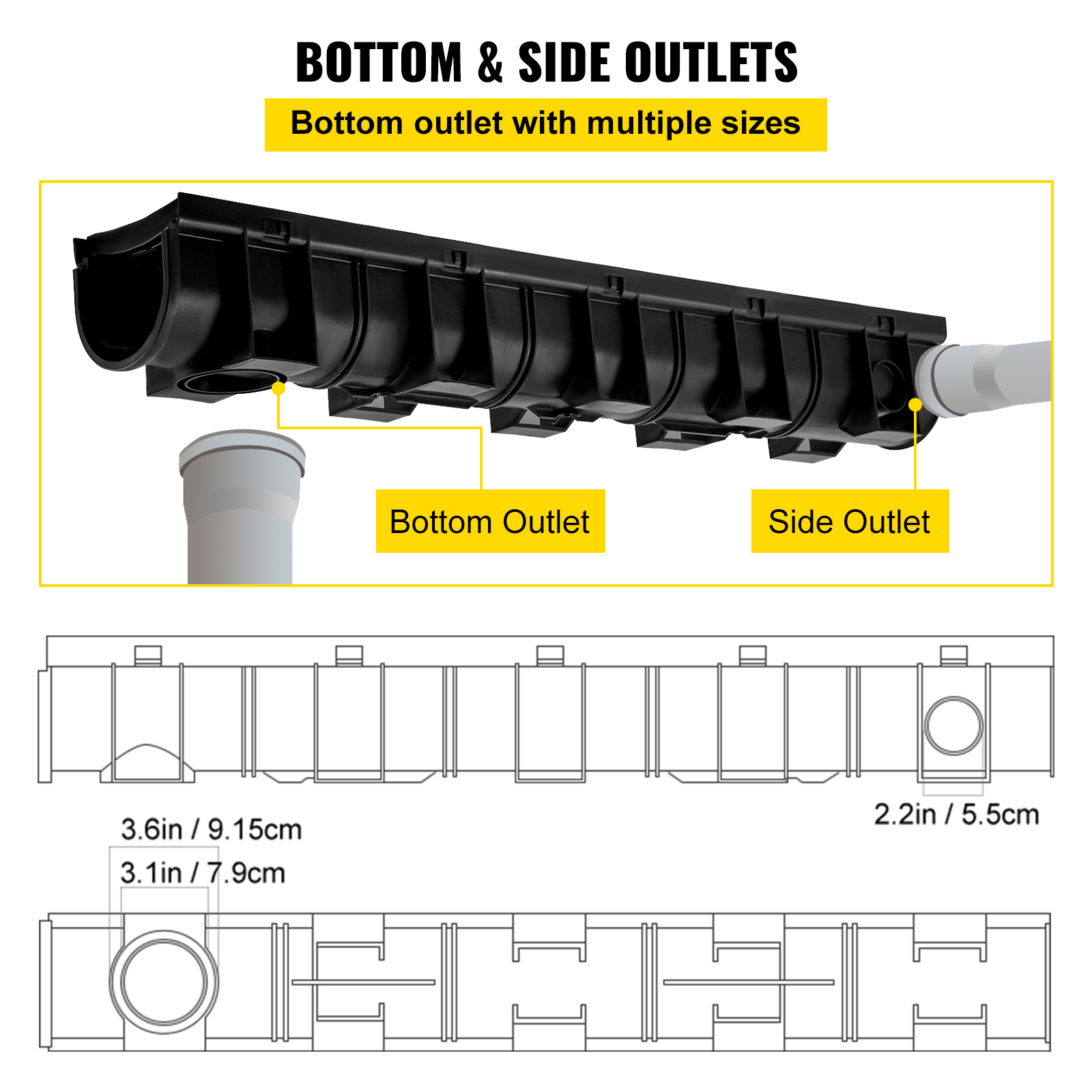

- Includes 3 trench drains with integrated bottom outlets
- 3 plastic grates
- 3 end caps
Installation

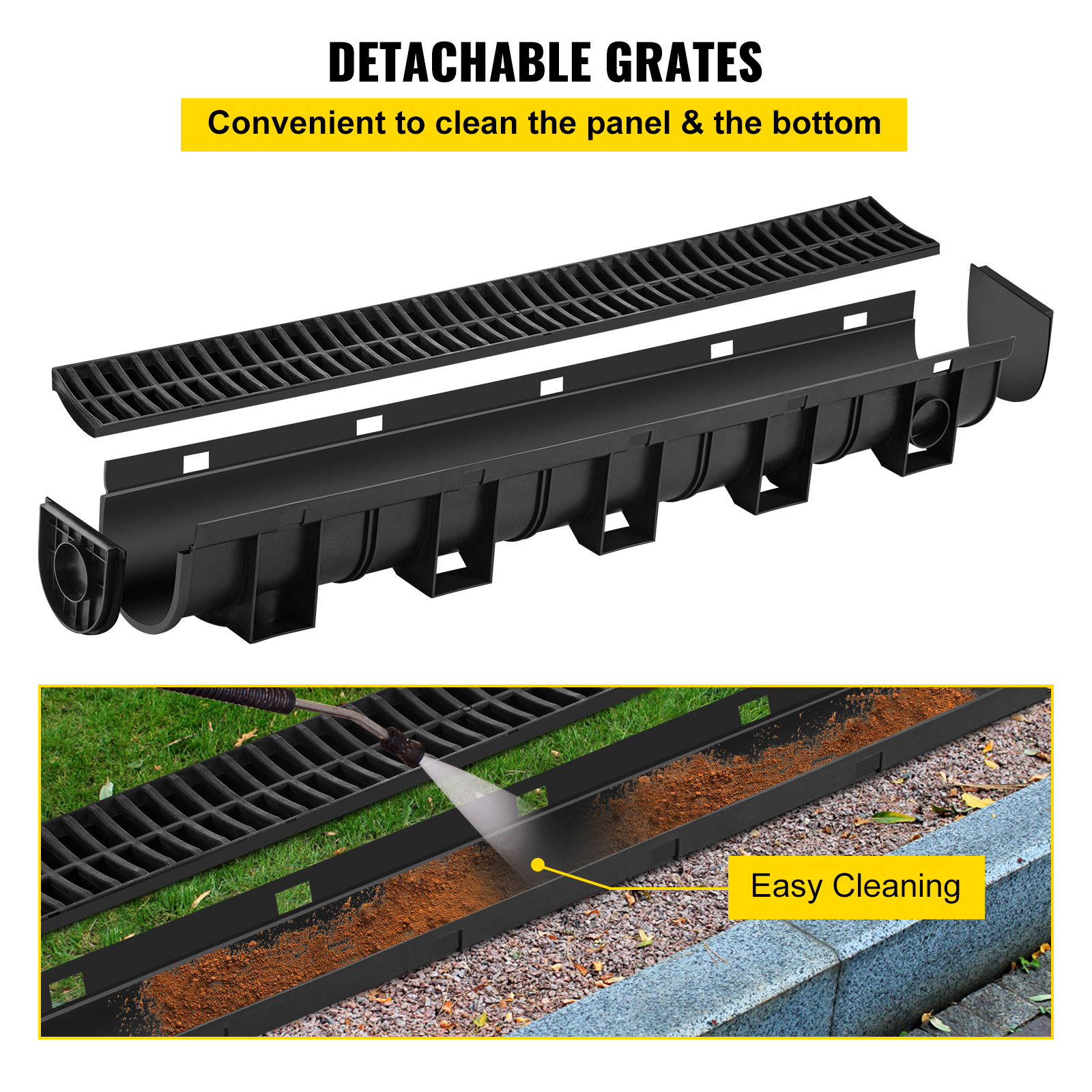

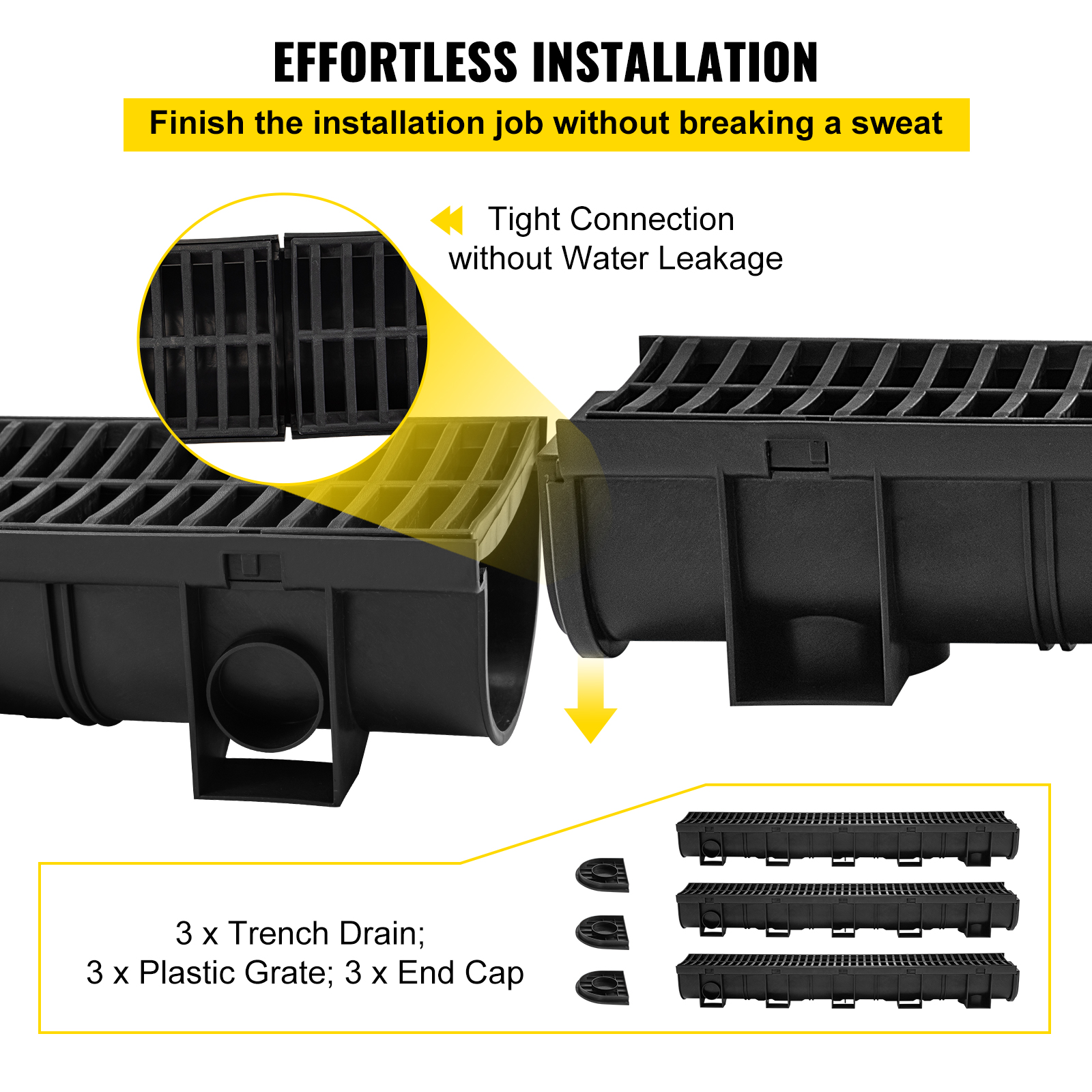

Each section of the trench drain measures one meter in length and can be easily interlocked to create a drainage system tailored to your needs. The installation process is simple, requiring no tools for the grate, which can be removed for cleaning.
Usage
This drainage system is suitable for a variety of applications, including:
- Gardens
- Swimming areas
- Sports fields
- Patios
- Pathways
- Driveways
