General description

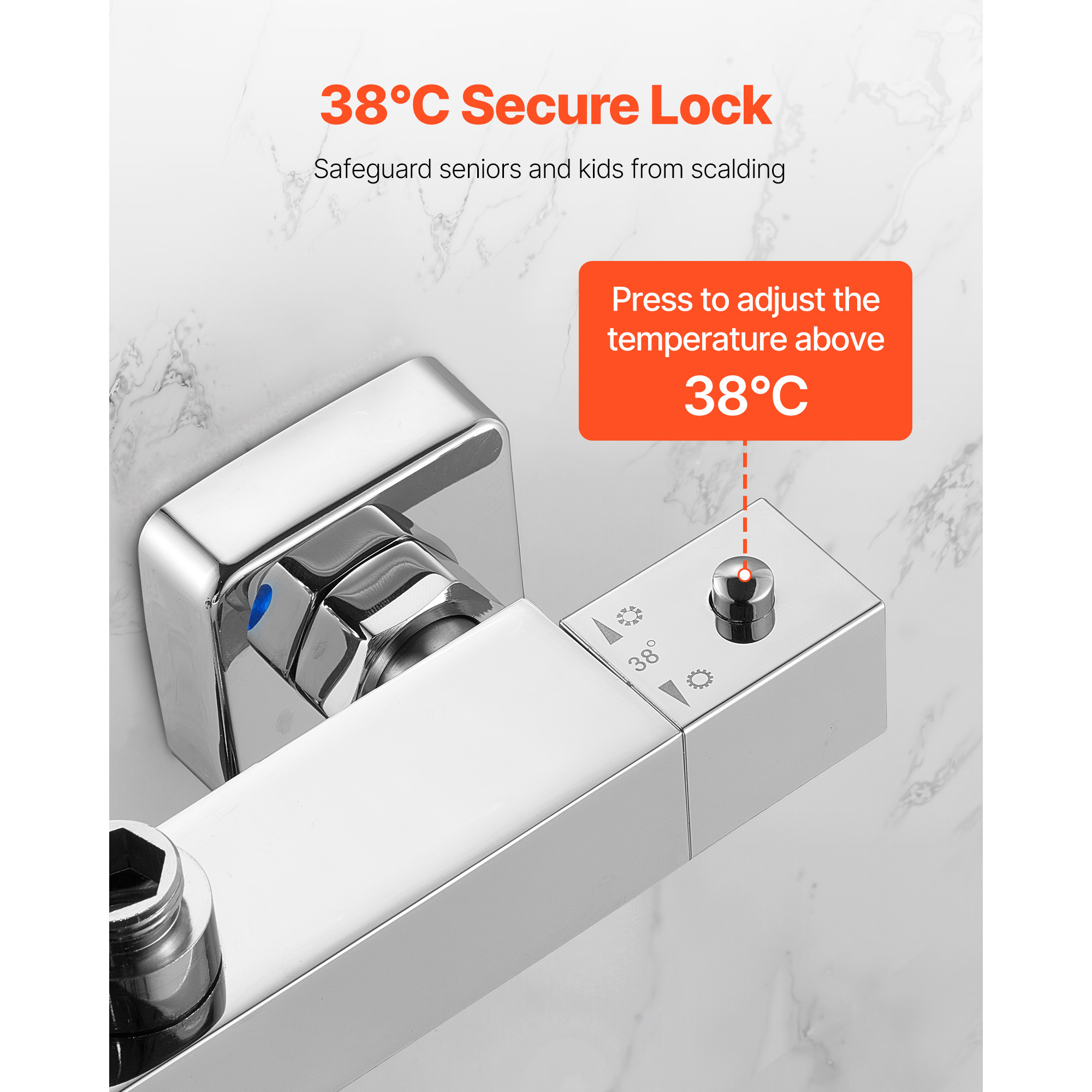

Upgrade your shower experience with the Mophorn Thermostatic Shower Faucet Valve. This valve allows you to effortlessly set the water temperature to a comfortable 38°C/100°F with a single adjustment, ensuring consistent temperature control. It features a safety button for higher heat settings, crafted from durable brass to prevent leaks and ensure longevity.

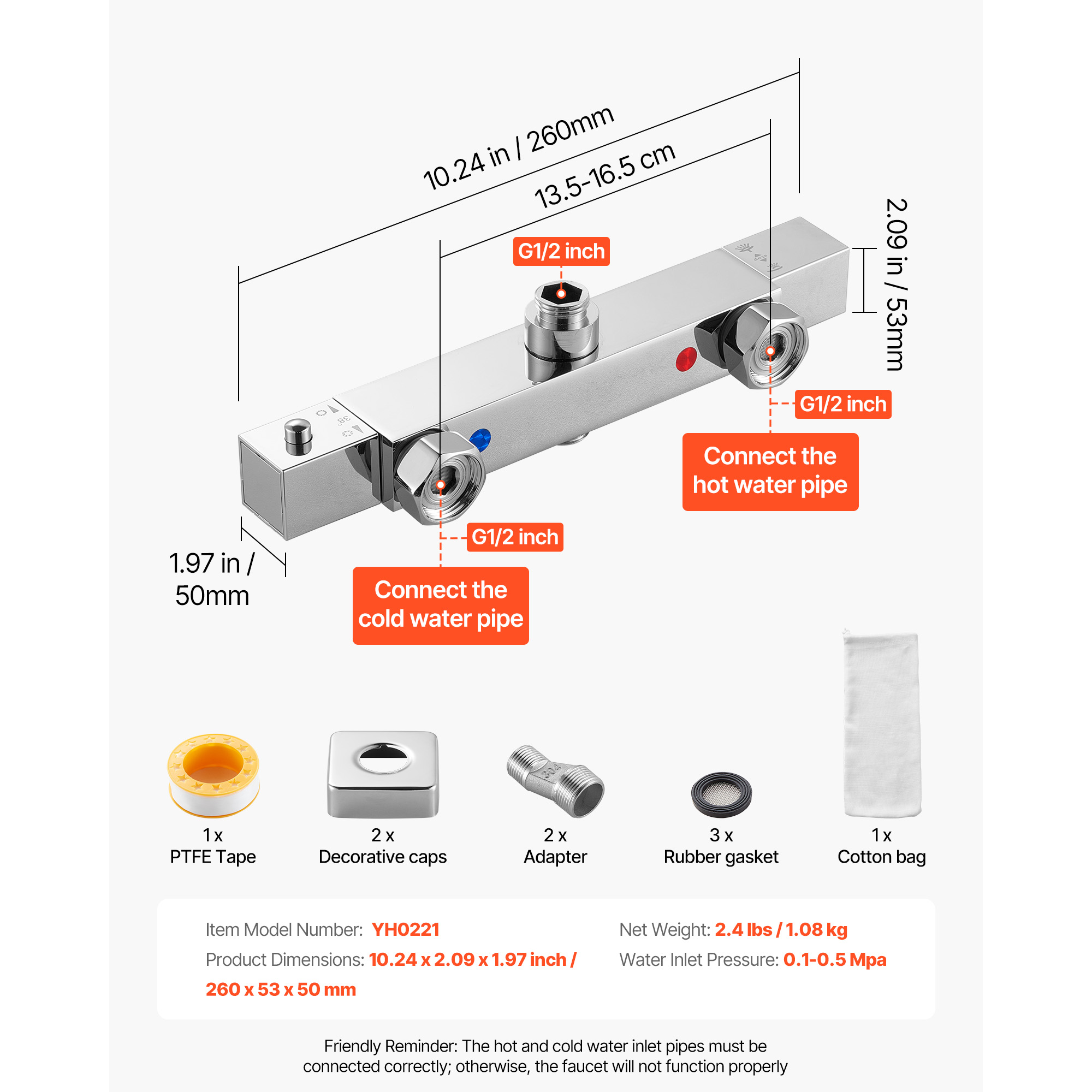

Technical specifications
- Item Model Number: YH0221
- Inlet Thread: G1/2 inch
- Top Outlet Thread: G3/4 inch
- Bottom Outlet Thread: G1/2 inch
- Hole Spacing: 5.31-6.5 inch / 13.5-16.5 cm
- Cold Inlet Temperature: 46.4-84.2℉ / 8-29℃
- Hot Inlet Temperature: 131-185℉ / 55-85℃
- Outlet Temperature Range: 68-122℉ / 20-50℃
- Water Inlet Pressure: 0.1-0.5 Mpa
- Color: Chrome Silver
- Main Material: Brass (Grade A)
- Surface Finish: Chrome Plated
- Net Weight: 2.4 lbs / 1.08 kg
- Product Dimensions: 10.24 x 2.09 x 1.97 inch / 260 x 53 x 50 mm
Installation
This thermostatic shower valve trim features distinct red and blue indicators for easy identification. Connect the red inlet to the hot water supply and the blue inlet to the cold water line. Ensure the connections are correctly set before use to maintain functionality and performance.
Usage

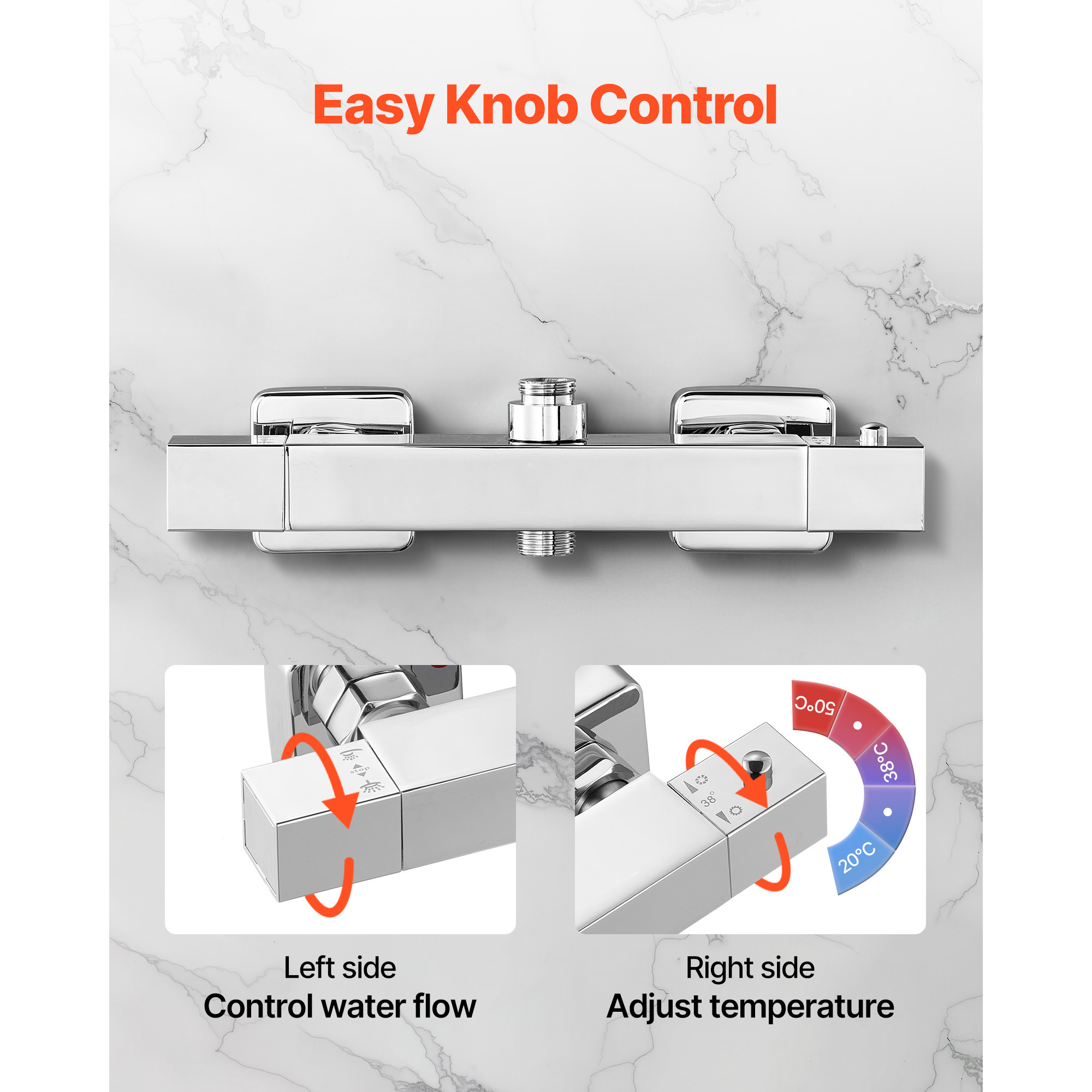

This thermostatic shower valve allows for precise adjustment of water temperature between 20–50℃, ensuring a consistent and comfortable flow. The dual control knobs enable you to easily adjust both the water flow and temperature to suit your preferences, whether you prefer a gentle rinse or a more powerful shower.
