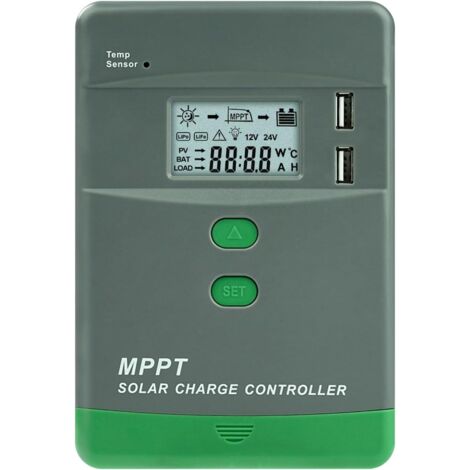

MPPT 20A Bluetooth Solar Charge Controller, Dual USB, Automatic Identification, 12V/24V Solar Panel Regulator, Max Voltage 60V, LCD Screen MRL20

【20A MPPT Solar Charge Controller】: This MPPT solar charge controller has a built-in Bluetooth module that allows you to remotely monitor the operating status of your solar panels via the "Solar Power" app. The controller is compatible with 12V/24V system voltage, has a rated discharge current of 20A, and a maximum open-circuit voltage of 60V. It features dual 5V/2A USB outputs, supporting charging of mobile phones and batteries within the solar system. 【LCD Display】: The MPPT 100/30 charge controller features a backlit LCD screen, allowing you to intuitively understand the controller's operating status. The panel is equipped with a temperature sensor for real-time temperature monitoring, and the controller offers simple button operation and adjustable working parameters. Thickened heat sink to protect against overheating.
【MPPT Control Algorithm】: MPPT regulator with advanced MPPT tracking technology, tracking efficiency up to 99%, circuit energy conversion efficiency up to 98%. Even when the solar panel is blocked, it can still accurately track the maximum power point.
【Applicable to a wide variety of batteries】: Solar charge controller supports lithium ternary batteries, lithium iron phosphate batteries, colloidal batteries, sealed batteries, and open batteries (12V/24V battery voltage automatically detected). Supports trickle charge, undervoltage charge, and equalization charge to better protect the battery. Solar regulator with 4 charge control modes: all-day operation, light-only control, light-time control, and reverse control.
【Multiple Functions of [Protection]: This 12V solar battery charge controller features PV panel reverse polarity protection, battery reverse polarity protection, battery overvoltage protection, battery over-discharge protection, and overcharge protection.

Parameters:

Material: PC

Model: MRL20

Maximum Open Circuit Voltage of Battery Plate: <60V

System Voltage: 12V/24V Automatic

Rated Charging Current: 20A

Maximum Input Power of Photovoltaic Panel: 12V 260W/24V 520W

Rated Discharge Current: 20A

USB Output: 5V/2A ×2

Control Mode of the Charging: MPPT

Floating charging voltage: 13.8V/27.6V/41.4V/55.2V

Undervoltage charging: 14.4V/28.8V/43.2V/57.6V

Equalization charging: 14.6V/29.2V/43.8V/58.4V

Undervoltage protection: 10.8V/21.6V/32.4V/43.2V

Undervoltage recovery: 12.6V/25.2V/37.8V/50.4V

Operating ambient temperature: -20~+55°C

Temperature compensation: -24mV/°C for the 12V system

Battery type: Battery Lithium ternary battery, lithium iron phosphate battery, colloidal battery, sealed battery, open battery

Charge control mode: all-day operation, pure light control, light duration control, reverse control

Communication mode: Built-in Bluetooth

Product size: 123×178×50 mm

Installation hole distance: Ø5

Package includes:

1*Solar charge controller

1*User manual (English)
