Multifunction DC Consumption Meter DC Voltage Current Power Energy Consumption Meter Communication Module Ammeter Voltmeter Module(2)

Features:

1. It is mainly used to measure DC voltage, current, active power, frequency, and power consumption.
2. The current measurement range is 50A, 100A, 200A, and 300A depending on the external shunt specification.
3. There are 10 different kits to choose from, enough to meet your various needs.
4. The physical layer uses the UART to RS485 communication interface, the baud rate is 9600, 8 data bits, 2 stop bits, no parity.
5. The application layer uses the ModbusRTU protocol for communication and only supports function codes such as 0x03, 0x04, 0x06, 0x41, 0x42, etc.

Specifications:

This module is primarily used to measure DC voltage, current, active power, frequency, and power consumption. The module has no display function; data is read via the RS485 interface.
Features:
It is primarily used to measure DC voltage, current, active power, frequency, and power consumption.
The current measurement range is 50A, 100A, 200A, and 300A, depending on the external shunt specification.
There are 10 different kits to choose from, enough to meet your various needs. The physical layer uses the UART to RS485 communication interface, with a baud rate of 9600, 8 data bits, 2 stop bits, and no parity. The application layer uses the ModbusRTU protocol for communication and only supports function codes such as 0x03, 0x04, 0x06, 0x41, 0x42, etc. The voltage threshold can be set, divided into high voltage and low voltage thresholds. When the measured voltage exceeds the threshold, an alarm can be triggered. Specification: Brand: PEACEFAIR Model: PZEM-017 Voltage: Measurement range: 0.05-300V (When the test voltage is high voltage) Resolution: 0.01V Measurement accuracy: 1% Current: Measurement range: 0.02-300A (can be used with 50A, 100A, 200A, 300A four types of shunt) Resolution: 0.01A Measurement accuracy: 1% Power: Measurement range: 0.2-90kW Resolution: 0.1W Measurement accuracy: 1%
Energy Consumption:
Measurement Range: 0-9999kWh
Resolution: 1Wh
Measurement Accuracy: 1%
Reset Energy: Use software to reset
Overvoltage Alarm:
Default High Voltage Threshold: 300V
Default Low Voltage Threshold: 7V
Communication Interface: RS485 interface
Operating Temperature: -20 ~ 60℃
Product Size: Approx. 9*6*2.3cm/3.5*2.4*0.9inch
Weight: Approx. 77g~287g / 2.7oz~10.1oz
Register Address Description Resolution
0x0000 The voltage value 1LSB corresponds to 0.01V
0x0001 The value Current value 1 LSB corresponds to 0.01A
0x0002 Low power value 16 bits 1 LSB corresponds to 0.1W
0x0003 High power value 16 bits
0x0004 Low energy value 16 bits 1 LSB corresponds to 1Wh
0x0005 High energy value 16 bits
0x0006 High voltage alarm state 0xFFFF is an alarm, 0x0000 is not an alarm
0x0007 Low voltage alarm state 0xFFFF is an alarm, 0x0000 is not an alarm
Register Address Description Resolution
0x0000 High voltage alarm threshold (5~350V), default value is 300V 1 LSB corresponds to 0.01V
0x0001 Low voltage alarm threshold (1~350V), default value is 7V. 1LSB corresponds to 0.01V.
0x0002 Modbus-RTU address range is 0x0001~0x00F7.
0x0003 Current range: 0x0000: 100A, 0x0001: 50A, 0x0002: 200A, 0x0003: 300A.
Optional Kit:

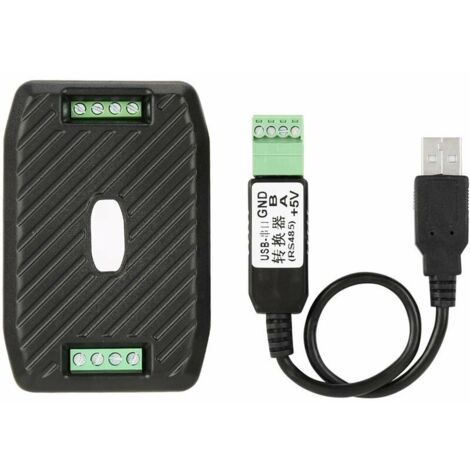

#1 1 x DC power meter
#2 1 x DC power meter, 1 x RS485 to USB cable
#3 1 x DC power meter, 1 x 50A shunt
#4 1 x DC power meter, 1 x 100A shunt
#5 1 x DC power meter, 1 x 200A Shunt
#6 1 x DC Power Meter 1 x 300A Shunt
#7 1 x DC Power Meter 1 x RS485 to USB Cable 1 x 50A Shunt
#8 1 x DC Power Meter 1 x RS485 to USB Cable 1 x 100A Shunt
#9 1 x DC Power Meter 1 x RS485 to USB Cable 1 x 200A Shunt
#10 1 x DC Power Meter 1 x RS485 to USB Cable 1 x 300A Shunt
Note:
The RS485 interface is a passive output, requires an external 5V power supply, and the external power supply must be >100mA.
When the input test voltage is less than 7V, an independent 5V working voltage must be supplied via the port USB.
Do NOT use the USB port provided by your PC as an independent power source, as this may damage your PC.
