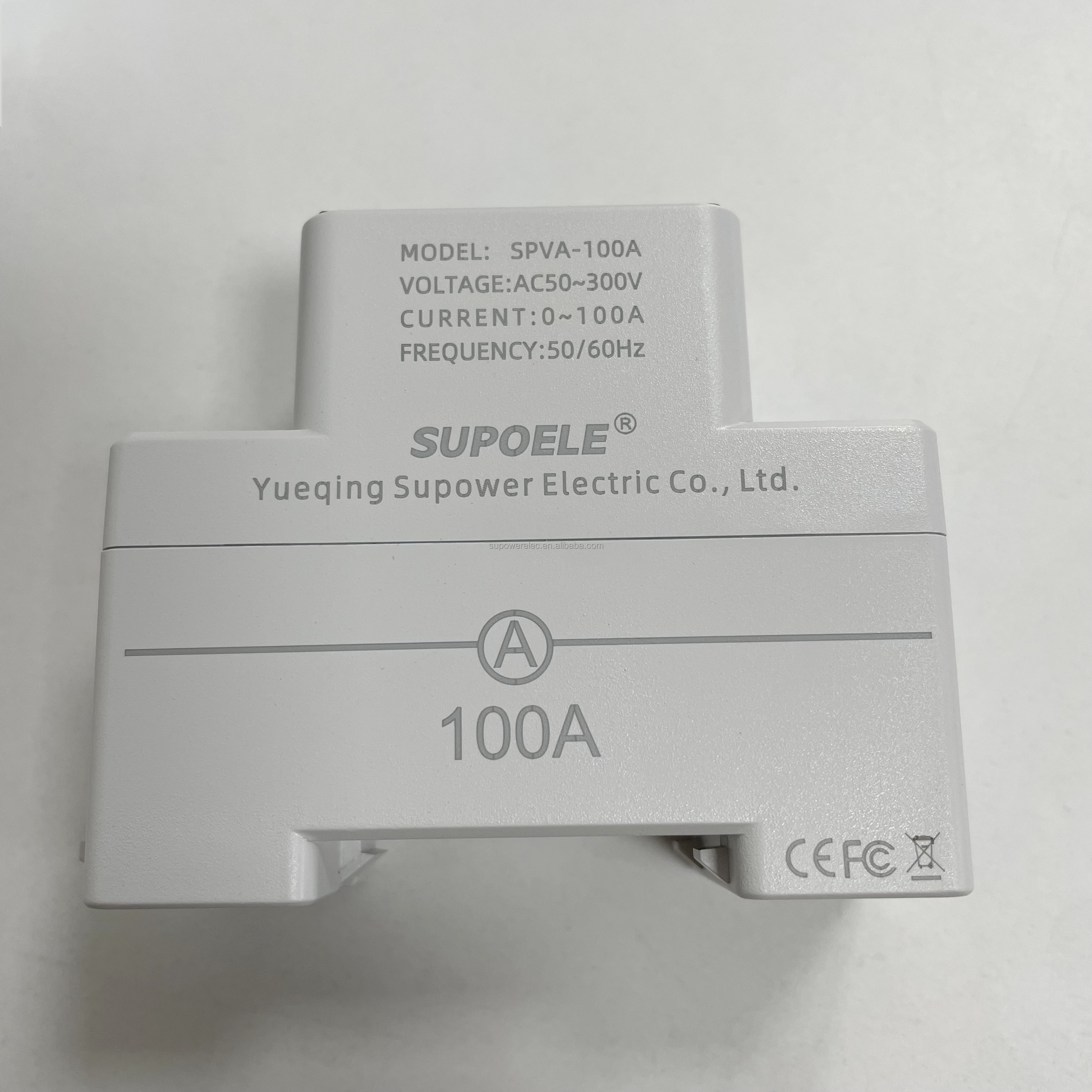

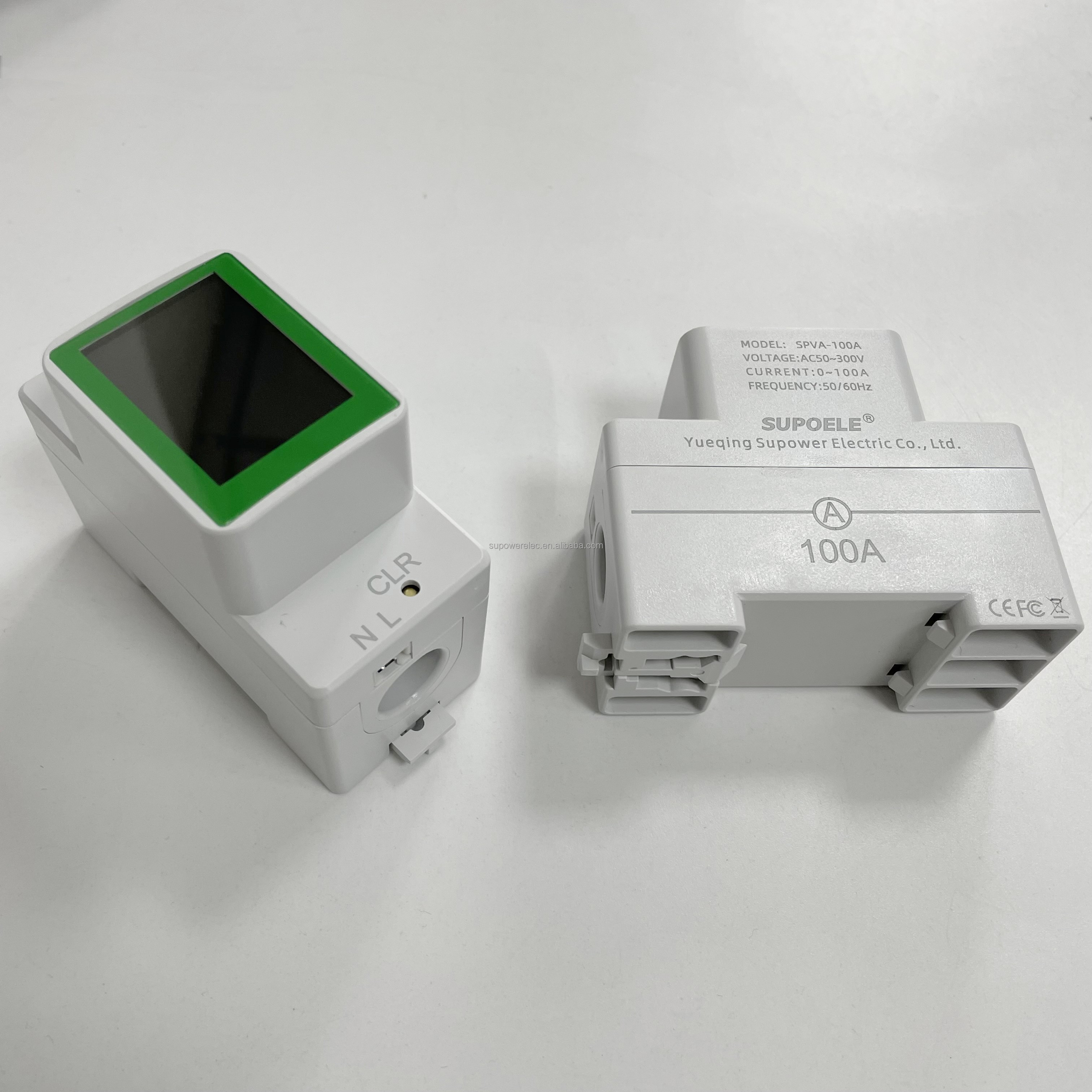

Multifunctional digital multimeter with voltage and current display AC50-300V/100A

General Description

The multi-function digital voltage and current meter is an essential device for measuring voltage, current, active power, and electricity. Designed for indoor use, it features a backlit LCD screen for easy data reading. This wattmeter tester can measure voltage ranges from 50 to 300 V AC and currents up to 100 A, with a measurement accuracy of ±1%. It also retains power status and backlight data after power-off.

Technical Specifications

• Measurement Voltage: 50 ~ 300 V AC
• Starting Voltage: 50 V
• Voltage Measurement Accuracy: ± 1%
• Measurement Current: 0 ~ 100 A
• Starting Current: 0.02 A
• Current Measurement Accuracy: ± 1%
• Active Power: 0 ~ 30 kW
• Starting Power: 0.5 W
• Power Measurement Accuracy: ± 1%
• Electricity: 0 ~ 1999 kWh
• Display: ≥ 10,000 W (example: 30.0 kW)

Operation

To use the meter, briefly press the button to turn the backlight on or off. To reset the battery, press and hold the button for more than 3 seconds until the battery flashes, then release it and press it briefly again. If you do not do this, the flashing will stop after 3 seconds and the battery will not be reset.

Other Information

• Contents: 1 x 4-in-1 Digital Voltmeter, Ammeter, and Wattmeter, 1 x Quick Connect Cable, 1 x English Manual
• Please allow for slight errors due to manual measurement.
• Item color displayed in photos may vary depending on the monitor used.
•
