Description

General description

6 pairs of waterproof MC4 male/female double ring connectors designed for solar panel cables. These connectors are quick and easy to install and come with 1 pair of hex keys. They are waterproof and dustproof, making them suitable for outdoor use in all weather conditions. The self-locking feature ensures a secure connection, and they are specially designed to connect solar PV systems that require high mechanical strength and can withstand extreme weather conditions.

Technical specifications

Rated Voltage: 1000V DC

Rated Current: 25A (2.5-4.0mm²)

Protection Rating: IP67

Flammability: UL94-V0

Test Voltage: 6000 V (50 Hz, 1 min)

Overvoltage Category: Class 2

Pollution Index: CATIII/2

Cable Adapter Outer Diameter: 4.5-7.0 mm (2.5-4.0 mm²)

Contact Connector Resistance: 0.5 mΩ

Insertion Force: ≤ 50 N

Remove Force: ≥ 50 N

Connector Conductor Material: Copper, tinned

Connection Method: Crimping

Connector Insulation Material: PPO or PBT

Operating Temperature Range: -40 to +90°C

Compatible Cable Sizes: 2.5mm²/4mm²/6mm² (AWG 14/12/10)

Package contents

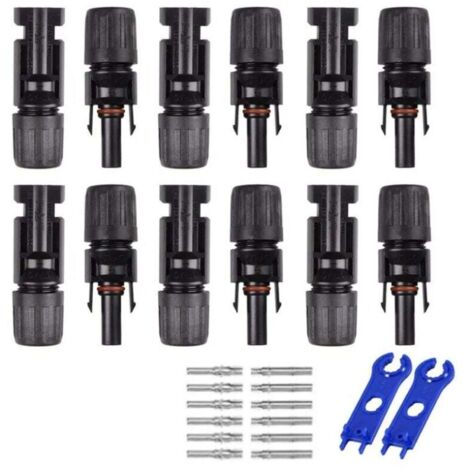

6 male connectors for solar panel cable

6 female connectors for solar panel cable

2 hex keys

Features

Brand
YMYNY
Connection configuration
M-F
Amperage
25 A
Material
Copper
Maximum operating temperature
90 °C
ManoMano Reference
ME93463714
MMID
311404445591
Product code
XHWD-M-XXW-3740
EAN
6941454473948
