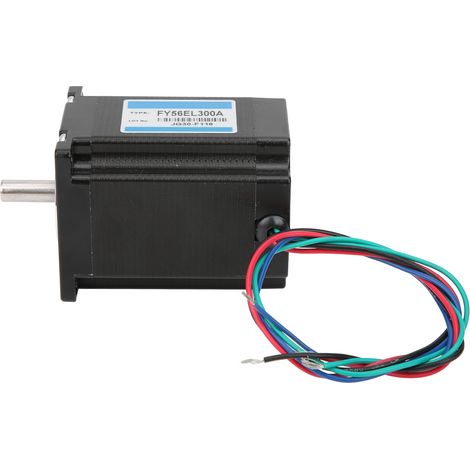

NEMA23 Electric Motor 2‑Phase 56 Stepper 1.8° 1.5Nm Stepping Driver Replacement Tools

1、Imported high‑quality motor steel sheets, bearings made of German technology, low self‑inductance, good responsiveness.

2、The front and rear covers are perfectly connected, the body is black electrophoresis, high‑end atmosphere, and the body size is standard.

3、The inner rotor adopts German technology, and the surface is coated with imported rotor glue to prevent burrs on the surface after carbon steel oxidation and grinding, resulting in increased motor noise.

4、Imported high-quality motor steel sheets, bearings made of German technology, low self-inductance, good responsiveness, and can be directly connected to the load for low-speed operation without gear reduction in the state of close to locked-rotor.

5、The motor can quickly start and stop, frequently rotate CW/CCW, and accurately control, the number of pulses determines the motor position.

Item Type: Electric Motor

Material: Carbon steel

Purpose: Industrial motor control, transmission and transmission occasions

Step Angle: 1.8°

Voltage: Determined by the equipped driver, no fixed voltage

Current: 3.0A

Holding Torsion: 1.5N.m

Resistance: 1.5Ω

Inductance: 3.5mH/phase

Length: Approx. 76mm / 3in

Size: Approx. 7.5mm / 0.3in

Number of Outlets: 4

Shaft Type: Milling single flat table

Step Angle Accuracy: ±5% (full step)

Resistance Accuracy: ±10% (20℃)

Inductance Accuracy: ±20% (1KHZ)

Temperature Rise: 80℃ maximum (rated current, 2-phase energization)

Ambient Temperature: -20℃~+50℃

Insulation Resistance: 100MΩ Min, 500VDC

Withstand Voltage: 500VAC for one minute

Radial Clearance: 0.02mm maximum (450g load)

Axial Clearance: 0.08mm maximum (450g load)

Maximum Radial Load: 75N (20mm from flange surface)

Maximum Axial Load: 15N

1 x Electric Motor
