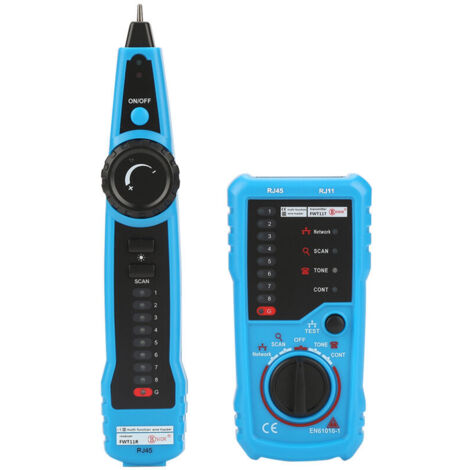

Network Cable Tester, Digital Signal Cable Tracer with Probe Tone, RJ11 RJ45 Detector, Ethernet LAN Cat5 Cat6 Cable Maintenance and Repair, Telephony Line Testing
You may also like
Compare with similar items
Product information
Description
General Description
The network cable tester is a professional tool designed to quickly locate incoming lines in many cable pairs. It is suitable for tracing RJ45 internet cables, RJ11 telephone lines, and other low-current metallic wires. This tester effectively detects wiring errors, short circuits, open circuits, and other connection problems.
Technical Specifications
Brand: BSIDE
Model: FWT11
Material: ABS
Type: Measuring Instruments
Operating Temperature: 0 - 40 °C
Storage Temperature: -10 - 50 °C
Maximum Relative Humidity: 80% (non-condensing)
Maximum Height: < 2000 m
Protection: IP40
Transmission signal distance: approx. 300 m
Transmitter size: 20 x 4 x 2.9 cm
Receiver size: 12.5 x 6.5 x 3.2 cm
Weight: approx. 252 g
Transmitter battery: 6F22 / 9V (not included)
Receiver battery: 6F22 / 9V (not included)
Compatibility and accessories
Compatible with RJ11 and RJ45 cables
Included accessories: 1 x FWT11 transmitter, 1 x FWT11 receiver, 1 x clip adapter cable, 1 x RJ45 adapter cable
Installation
To use To use the tester, connect one end of the cable to be tested to the corresponding port on the transmitter and the other end to the receiver. Follow the specific instructions for each test function.
Use
The tester can be used for:
Cable continuity testing
Identifying wiring errors
Checking the condition of telephone lines
Detecting positive and negative polarity
Features
- BrandXISRENS
- Voltage1 V
- Main detection technologyMagnetic induction
- ManoMano ReferenceME98144367
- MMID628419061113
