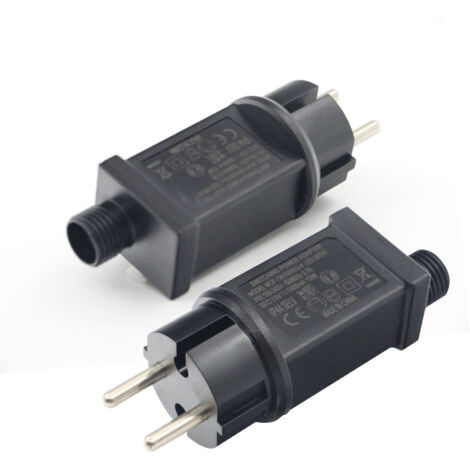

[NEVER USED] 12V LED power supply, LED transformer IP44 low voltage LED adapter driver for Christmas light, string lights
You may also like
Compare with similar items
Product information
Description
Product never used, packaging damaged during transport. Unopened product, repackaged in our warehouses, in perfect working condition, warranty available.
Input: 100-240V AC, 50-60Hz; Output: 12V DC, rated power 12W.
Wide Application: The 12V 12W 1A LED adapter is suitable for low voltage LED lights, such as Christmas tree lights, string lights, spotlights, lawn lights, curtain lights, holiday lights, etc.
Note: Please check the voltage, current, wattage and the (+/-) two connection holes for your device before purchasing.
IP44 WATERPROOF: This IP44 rainproof case is waterproof. The low voltage adapter features continuous operation and can be used indoors and outdoors.
p>
1. Reliability
Temperature rise (burn-in): 85% to 95% load per unit, 40+/-5 degrees, 4 hours
Leakage current: 0.25 mA, 240 VAC max.
Dielectric withstand voltage (between primary and secondary sides), 3000 VAC, 60 s, 5 mAMax
MTBF: per MIL-HDBK-217F, full load, 25 degrees, over 50,000 hours
2. Protection Function
Short circuit protection: The switching power supply can resume normal operation when the short circuit is eliminated
Overcurrent protection: Once the fault overcurrent is eliminated, the switching power supply will automatically resume normal operation
Overvoltage protection: When the output voltage of the switching power supply exceeds 150% to 180% of the rated voltage, the switching power supply will enter the protection state and the switching power supply can resume normal operation after the fault is eliminated.
3. Environment
Operating temperature: 0–40 degrees under full load conditions
Storage temperature: -20–85 degrees
Humidity: 5% at 95% non-condensing
Features
- BrandODIPIE
- Power12 W
- Voltage12 V
- Amperage1000 mA
- MaterialPlastic
