[NEVER USED] pairs MC4 male/female double ring waterproof seal solar panel cable connectors Fontainebleau
Sold by Selphora
Product information
Description
Product never used, packaging damaged during transport. Unopened product, repackaged in our warehouses, in perfect working condition, warranty available.
General Description: 6 pairs of MC4 male/female connectors with double sealing rings, designed for quick and easy installation. These connectors are waterproof and dustproof, making them suitable for outdoor use in all weather conditions. Thanks to their self-locking system, they ensure a secure connection, specifically designed for photovoltaic solar systems subject to high mechanical demands and extreme weather conditions.

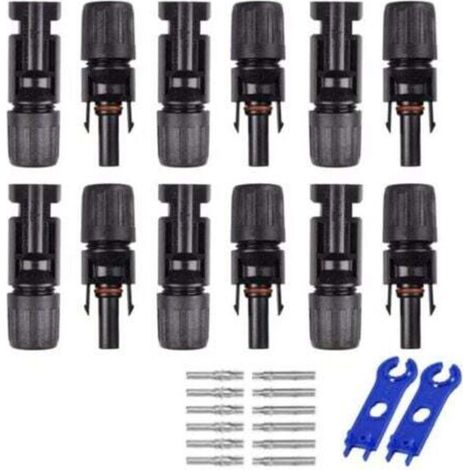

Technical Specifications Rated Voltage: 1000 V DC Rated Current: 25 A (2.5-4.0 mm²) Degree of Protection: IP67 Flammability Rating: UL94-V0 Test Voltage: 6000 V (50 Hz, 1 min) Safety: Class 2 Overvoltage Category/Pollution Rating: CAT III/2 Cable Adapter: OD 4.5-7.0 (2.5-4.0 mm²) Connector Contact Resistance: 0.5 mΩ Insertion Force: ≤ 50 N Removal Force: ≥ 50 N Conductor Material: Copper, Tin Connection: Crimp Insulation Material: PPO or PBT Operating Temperature Range: -40 ~ +90 °C Suitable for 2.5 mm²/4 mm²/6 mm² cables (AWG 14/12/10) Package Contents 6 x Solar Panel Cable Male Connectors 6 x female solar panel cable connectors, 2 x hex keysFeatures
- BrandOTHERS
- IP ratingIP67
- Connection configurationM-F
- Maximum operating temperature90 °C
- ManoMano ReferenceME102251551
