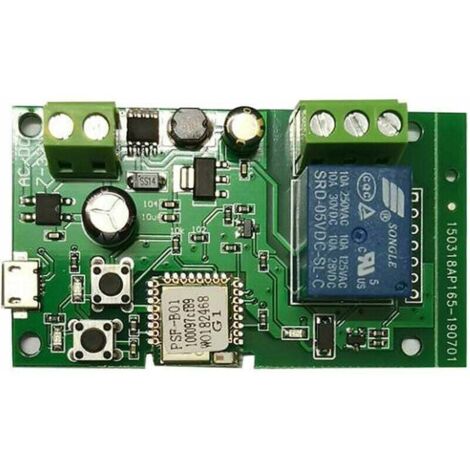

[NEVER USED] WiFi Switch Wireless Relay Module, DC5V 12V 24V 32V

Product never used, packaging damaged during transport. Unopened product, repackaged in our warehouses, in perfect working condition, warranty available.

Note: You can scan the QR code on the package to download the user manual. Overview: This wireless switch is a cost-effective and affordable device that allows users to remotely arm/disarm connected devices of various types and brands via the EWeLink app from anywhere in the world. Setting synchronization schedules for your devices allows you to live worry-free. It supports progressive/self-locking mode. In self-locking mode, customers can remotely turn on/off connected devices instantly. In step mode, customers can select two wiring modes: turn on 1, then automatically turn off, turn off 1, then automatically turn on.

Features: *Supports WiFi network. Supports many WiFi smart switches on one smartphone. *Supports status tracking: Device status will be pushed to EWeLink in a timely manner. br/> * The brackets allow you to remotely turn on/off connected devices, e.g. light, kettle, electric rice cooker, electric curtain, etc. * Supports a maximum of 8 scheduled timers/countdown/loop timers enabled for each device. * Voice Control: Perfectly compatible with Amazon Alexa, for Google Home/Nest, IFTTT.

Features:< br/ > Working voltage: 5V / 7-32V DC LED: 3 LED (show working mode, WiFi status, relay on/off status) Two input interfaces Support for different voltage ranges More convenient power supply via USB port Consumption recommendation: <1W Standby current: 80mA Maximum input current: 10A Maximum power: 2200W Relay lifespan: ≥ one million times Resistance 100m electrical insulation Electric shock voltage: 1000V Maximum relay pull time: 15ms Maximum relay release time: 5ms Working mode: Inching / Self-locking Wireless standard: 2.4GHz, 802.11 b/g/n Mobile application: EWeLink on Android / IOS Application: Access control, turn on PC, garage door, etc. Computer application: Remote control of the computer Operating Temperature: -40 degrees to +70 degrees Operating Humidity 40% ~ 80% RH Item Size: 67 * 41 * 20 (mm) Package Information: Package Size: Approx. 10 * 7 * 4 cm / 3.9 * 2.8 * 1.6 in Package Weight: Approx. 35 g / 1.2 oz Packing List: 1 * Wireless Switch Module
