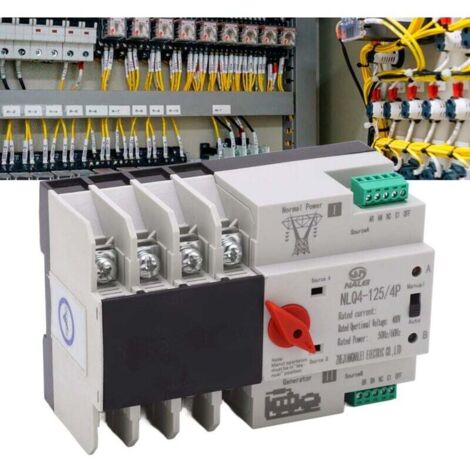

NLQ4-125 4P Dual Power Automatic Transfer Switch, for Shopping Centers, Factories (100A)
You may also like
Compare with similar items
Product information
Description
【Excellent Insulation】: The dual-power automatic transfer switch offers reliable transmission, excellent insulation, easy installation and maintenance, and a longer lifespan.
【Use Scenario】: The automatic transfer switch is widely used in various situations where a continuous power outage is unacceptable, such as homes, shopping malls, factories, laboratories, farms, etc.
【Operating Process】: When the normal power supply fails, the backup power supply activates immediately to ensure continuity, reliability, and safety of the power supply, and to achieve the effect of a non-stop power supply.
【PC and Silver】: Excellent flame-retardant PC material, high-temperature resistant, anti-aging, safe and reliable, using silver for good conductivity.
【Millisecond Switching】: The dual-power automatic transfer switch can be operated automatically or manually, millisecond switching without power, compact structure.
Specification:
Item Type: Dual Power Automatic Transfer Switch Model: NLQ41254P Material: PC, Silver Rated Frequency: 50Hz/60Hz Insulation Voltage: AC690V/50Hz Rated Voltage: AC400V50HZ Grade: PC grade Specification: 4P Electrical Life: 2000 times Mechanical Life: 5000 times Rated Short-Circuit Current: 50kA Fuse: RT160063A Rated Pulse Withstand Voltage: 8kV Control Circuit: Rated Control Voltage Us: AC220V85%Us-110%Us Auxiliary Circuit: Two relays, each with two sets of capacitors: AC220V50HZle5y Touch Time: Operation Conversion Time: Return Time: Shutdown Time: Usage: Switch to standby mode in case of power failure, switch to mains mode when incoming call
Package List:
1x Dual Power Automatic Transfer Switch 1x Instruction Manual
Note: 1. The maximum ambient temperature must not exceed 40°C, the minimum temperature must not be below -5°C, and the average temperature over 24 hours must not exceed 35°C. 2. The altitude of the installation site must not exceed 2000m. 3. When the maximum temperature is 40°C, the relative humidity of the installation site must not exceed 50%; when the temperature is the lowest (-5°C), the relative humidity is higher. For example, when the temperature is 25°C, the relative humidity is 90%. Due to temperature changes, special measures must be taken to address occasional condensation on the product surface.
Features
- BrandSNQ
- Voltage400 V
- Amperage100 A
- MaterialPolystyrene (PS)
- ColourWhite
