General description

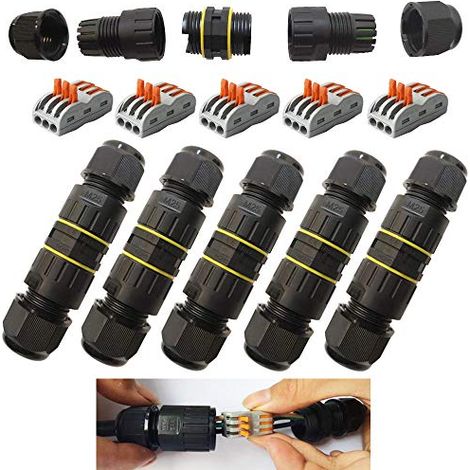

IP68 waterproof outdoor junction box designed for 3-way connections, suitable for cables with an outer diameter of 6 to 11mm. This package includes 5 junction boxes and 5 quick connect terminals, making it ideal for repairing and extending power cables safely in home, garden, or outdoor lighting applications. The junction box is perfect for quick connections to exterior lighting and external wiring, ensuring reliable performance in harsh industrial or outdoor environments.Technical specifications
- Material: Plastic + Metal
- Product size: 11 x 3 cm
- Rated voltage: 450V
- Rated current: 16A
- Rated power: 5.85KW
- Operating temperature: -40 to 95 °C / -40 to 203°F
- Waterproof Rating: IP68
- Applicable core: 2/3 core
- Compact wire connectors suitable for various cable strands: hard wire 0.08-4mm²/AWG28-12; soft wire 0.08-2.5mm²/AWG28-14
Installation
- Unscrew the caps on both ends.
- Prepare the wire by stripping the wire sheath to 7-8mm.
- Thread the wire through the lid.
- Push the orange lever 90° and insert a wire.
- Press the orange control handle to ensure there is no looseness.
Usage
The junction box is designed for various applications, including LED billboards, LED tunnel lights, LED road landscape lighting, LED outdoor displays, and LED garden lighting. It provides a solid connection that is quick and easy to install, saving time while ensuring the cable is fully protected.Other information
- Precautions:
- 1. Use within the rated voltage, current, and power range.
- 2. Ensure fire wire, ground wire, and neutral wire match the corresponding wiring holes during installation.
- 3. Tighten the lock nut after wiring is completed to achieve the waterproof effect.
