pairs MC4 male/female double ring waterproof seal solar panel cable connectors
You may also like
Compare with similar items
Product information
Description

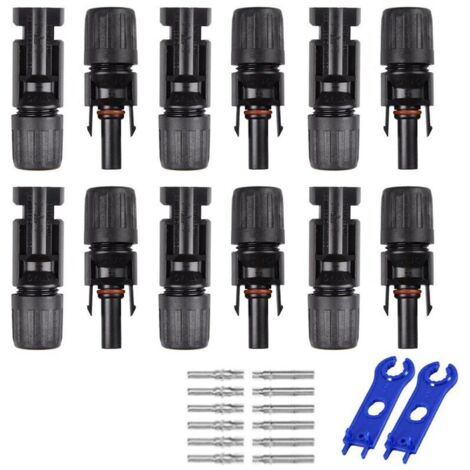

6 pairs of MC4 male/female double ring waterproof seal solar panel cable connectors
Easy and quick installation, comes with 1 pair of hex keys
Waterproof and dustproof, can be used outdoors in all weather conditions
Self-locking provides a secure connection
Specifically designed to connect photovoltaic solar systems with high mechanical requirements and to withstand extreme weather conditions
Product Description
Specification:
Rated Voltage: 1000V DC
Rated Current: 25A (2.5-4.0 mm²)
Protection Rating: IP2 */IP67
Flammability Rating: ul94-v0
Test Voltage: 6000 V (50 Hz, 1 min)
Safety: Class 2
Overvoltage Category/Pollution Index: CATIII/2
Cable Adapter: OD4.5-7.0 (2.5-4.0 mm²)
Resistance Contact Connector: 0.5 m; #x3a9;
Insert Force; #x2264; 50 N
Remove Force; #x2265; 50 N
Connector conductive material: copper, tin
Connection: crimp
Connector insulation material: PPO or PBT
Operating temperature range: -40 ~ +90 °C
Suitable for 2.5 mm²/4 mm²/6 mm² cable (AWG 14/12/10)
Snap-on locking system
Drawing
Package contents:
6 x male solar panel cable connectors
6 x female solar panel cable connectors
2 x hex keys
Sold by the store
Features
- BrandKZQ
- Length10 cm
- Power25 W
- Voltage12 V
- Amperage25 A
