Description

General description

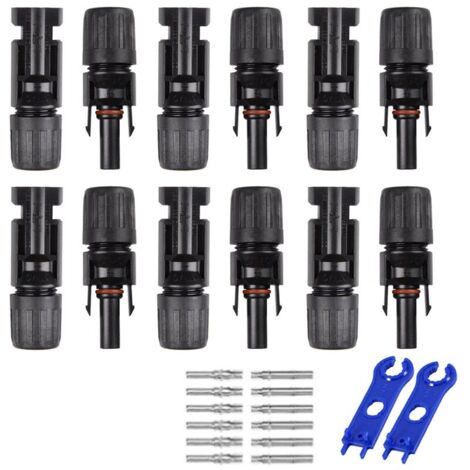

6 Pairs MC4 Male/Female Double Rings Waterproof Joint Connectors are designed for solar panel cable installations. They are easy to install and provide a secure, self-locking connection. These connectors are waterproof and dustproof, making them suitable for outdoor use in all weather conditions. They are specifically engineered to meet the high mechanical and extreme weather requirements of solar photovoltaic systems.

Technical specifications

  • Rated voltage: 1000V DC
  • Rated current: 25A (2.5-4.0mm²)
  • Protection grade: IP2*/IP67
  • Flammability rating: UL94-V0
  • Test voltage: 6000V (50 Hz, 1 min)
  • Safety: Class 2
  • Overvoltage Category/Pollution Index: CATIII/2
  • Connector Contact Resistance: 0.5 mΩ
  • Insertion Force: ≤ 50 N
  • Removal Force: ≥ 50 N
  • Connector Conductor Material: Copper, Tin
  • Connection: Crimp
  • Connector Insulation Material: PPO or PBT
  • Operating Temperature Range: -40 ~ +90°C
  • Compatible with 2.5mm²/4mm²/6mm² (AWG14/12/10) cable

    • Package Content

  • 6 x Male Solar Panel Cable Connectors
  • 6 x Female Solar Panel Cable Connectors
  • 2 x Hex Keys

    • Features

    • Brand
      NICEONE
    • Amperage
      25 A
    • Material
      Tin / Polypropylene
    • Connection configuration
      Male
    • Warranty
      1 year(s)
