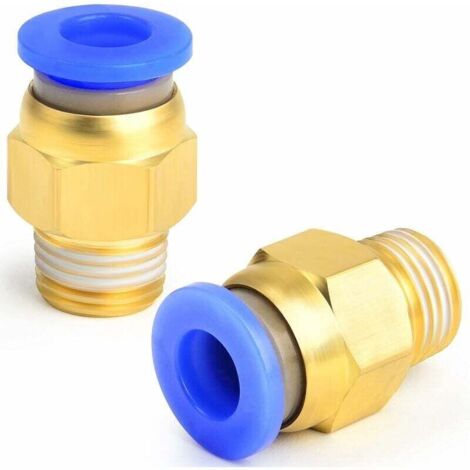

Pcs 6mm Tube OD x 1/8 BSP Mâle Droit Push To Connect Raccords (PC6-01)

~~£22.96~~

Of which environmental contribution £0.01 including VAT.

Sold by CHAO WORLDWIDE

Product information

Description

General Description

PC6-01 fittings are designed for quick and efficient hose connections in pneumatic systems. Made from robust plastic and brass, these fittings offer excellent durability and a long service life. They allow for an easy and reliable connection, while preventing air leaks thanks to their high-quality design.

Technical Specifications

Model: PL6-01
Dimensions: 6 mm OD (tube) x 1/8 BSP (thread)
Operating Pressure Range: 0-1 MPa
Operating Temperature: 0-60 °C
Material: Plastic and Brass
Applicable Hose: PU/PA/PE/PVC

Installation

To install the fitting, follow these steps:

Ensure the cut surface of the hose is vertical and smooth.
Insert the tube fully into the fitting.
Tighten the threaded end to secure the connection.
Pull on the hose to check that it is properly seated fixed.

Use

These fittings are ideal for:

Connecting pneumatic lines and components.
Use in air or vacuum environments.
Applications requiring flexibility and 360-degree free rotation.

Other information

Do not apply external loads (bending, twisting, or pulling) to the hose port to avoid damage or leaks.
Avoid using these fittings in dusty or particulate environments.
The clip connecting the air line ensures a good seal to prevent leaks.
The blue gasket can be rotated 360 degrees for optimal adjustment.

Features

Brand
XISRENS
Length
10 mm
Connection configuration
M-M
Pipe thread size
1/8" (5x10)
Warranty
1 year(s)
