Pcs Butt Connectors 50mm² with 4 Heat Shrink Tubing, Car Audio Crimp Electrical Terminals, 0 AWG Battery Cable Crimp Connector, Brass Butt Cable Terminals

PREMIUM TIN-PLATED COPPER: These professional butt connectors are made of premium tin-plated brass, ensuring optimal conductivity and corrosion protection. Their thick walls and special ribs provide maximum durability for all cable connections. Their solderless design prevents the cable from slipping, even under high tensile force. Stronger than conventional crimp connectors. CONVENIENT ACCESSORIES FOR EASY INSTALLATION: The included Allen key and heat-shrink tubing provide everything you need for easy installation. The Allen key makes tightening the terminals easier, while the heat-shrink tubing offers additional protection. Achieve professional results without extra accessories. QUICK INSTALLATION: With these 50 mm² crimp terminals, make quick and reliable electrical connections. Simply strip the cable, prepare both ends, and insert them into the terminal. Tighten the lug with an Allen key and secure the heat-shrink tubing. Its special brass construction allows for a reliable, solderless connection, ideal for workshops and DIY projects.
UNIVERSAL APPLICATIONS: These high-quality cable connectors meet all current electrical standards and are suitable for environments subject to vibration or movement, providing a safe and reliable connection. This butt connector allows for the connection of heavy-duty 0-gauge power and ground wires, such as amplifier ground wires and audio amplifiers in truck depots, boats, and trolling boats.
NOTES: 1. Tighten the screws to a torque of 4 Nm. Overtightening will damage the threads. 2. Heat the heat-shrink tubing evenly from the center to the end (hot air to 120°C). 3. Suitable for solid, stranded copper wires only (not suitable for aluminum wires). 4. Maximum cable cross-section: 50 mm².

High-quality butt connectors for professional cable connections
The ideal connection solution for 50 mm² cables: for automotive electrical systems, solar systems, and industrial applications!
High-quality materials: Tin-plated brass connectors with firm knurling for maximum grip.
Easy installation: Allen key and color-coded (red/black) heat-shrink tubing included.

[Environmental Conditions] Temperature and Humidity Limits
Operating temperature: -40°C to +105°C (125°C for short periods).
Not suitable for permanent immersion (despite the IP68 rating).
In salt spray conditions: Additional protective coating is recommended.

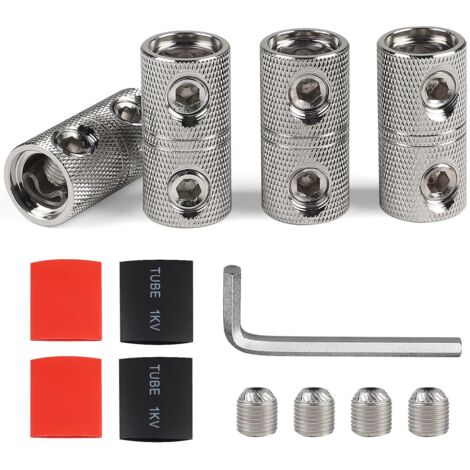

[Maintenance Intervals] Regular maintenance for long-term stability. Every 2 years: check the screw tightness (3 to 5 Nm). Visually inspect the insulation for any cracks. If there are signs of corrosion: replace the connection. [Compatibility] Not suitable for all cable types. Only for solid, stranded copper conductors (not suitable for aluminum conductors). Maximum sleeve size: 50 mm². Not compatible with soldering flux or acidic fluxes. Safety instructions: Ensure the device is switched off; always unplug it. Before any work, disconnect the battery or power supply terminals. Cable ends must be carefully deburred. Specifications: Material: Nickel-plated brass Dimensions: 20 x 40 mm Cable cross-section: 50 mm²/0-2 AWG Package contents: 4 x 50 mm² butt connectors 8 x spare screws 2 x red heat-shrink tubing 2 x black heat-shrink tubing 1 x Allen key
