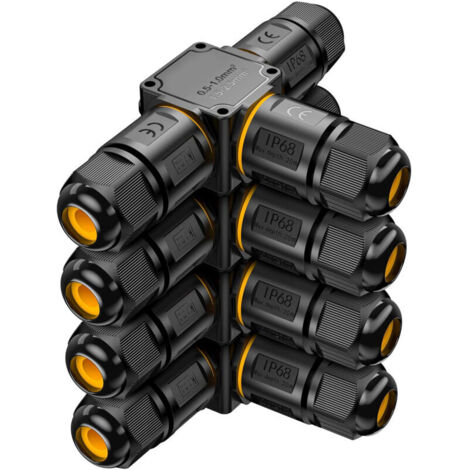

PCS IP68 Waterproof Cable Connectors - 3-Way Junction Box with 3-Wire Waterproof Connector - Outdoor Garden Connection - 6-11mm Cable Branching - Waterproof External Electrical Enclosure

General Description

Made of high-quality PC + PA66 nylon plastic, this IP68 waterproof cable connector is flame retardant and UV resistant, providing complete protection in harsh outdoor environments. It is equipped with a silicone rubber ring for improved sealing, dust resistance, and corrosion resistance, ensuring safe use in various extreme weather conditions.

Technical Specifications

• Waterproof: IP68 (tested with a 20-meter water column for 150 hours)
• Rated Current: ≤ 24A
• Rated Voltage: ≤ 450V
• Cable Diameter: Ø6mm-11mm
• Cable Cross-Section: 3x0.5mm² ~ 3x2.5mm²
• Operating Temperature: -40℃ to 105℃
• Dimensions: 123x83x26.5 mm
• Color: Black

Compatibility and Accessories

Supplied with 2 sets of sealed silica gel pads of different sizes for cables from 6 to 11 mm in diameter.

Installation

Installation type: snap-in connection.

Use

Suitable for various electrical connections such as electrical installations, outdoor equipment, gardens, fountains, streetlights, underground cables, tunnels, etc.
