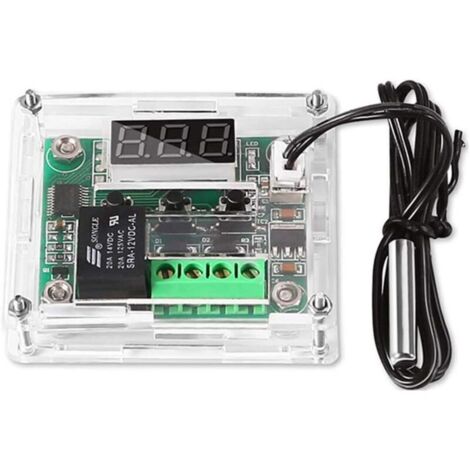

Piece 12V Temperature Regulator Module with Housing, XH W1209 Digital Thermostat Module with Waterproof Display and NTC Probe

The thermostat module controller has a sensor input, buttons, an LED display, and a relay. It can be reprogrammed for control, synchronization, or counting.

Temperature measurement range: -50 ~ 110 ℃. Control accuracy: 0.1 Celsius. Input power (DC): 12 V; Measurement inputs: NTC (10K 0.5%); Waterproof sensor: 0.5 m; Output: 1-channel relay output, capacity: 10 A; Power consumption: static current: 35 mA; Current: 65 mA.

Electronic digital thermostat with a 3-digit red LED display, extremely bright. Operates in both heating and cooling modes for easy control of equipment and appliances.

The output is electronically controlled by a microprocessor to ensure the highest intervention accuracy and excellent temperature reading resolution.

The NTC probe is waterproof and allows for temperature control of even fluids, enabling controlled heating or cooling. Note: The laminated wood casing is actually a transparent plastic housing. You must carefully peel off the outer layer of wood, as it is very thin. (It can protect the inside to prevent scratches.) And you need to assemble and install the case yourself.

Specifications:

Dimensions: 48.5 * 40 * 15.8 mm

Temperature Control Mode: ON/OFF

Temperature Range: -50 - 110℃

Resolution: When the temperature is 0.1℃, the resolution is -9.9 to 99.9; the other temperature segments are 1℃

Control Accuracy: 0.1℃

Hysteresis Accuracy: 0.1℃

Refresh Rate: 0.5 s

High Temperature Protection: 0 - 110℃

Power Supply Voltage: 12 V DC

Standby current: less than 35 mA, attraction current less than 65 mA

Output voltage: 12 V DC

Output power: 20A relay

Measurement input: NTC waterproof sensor (10 K 0.5%)

Environmental requirements: -10 - 60 ℃; Humidity: 20% - 85%

Operating Instructions:

Connect the power supply and the equipment. The measured temperature will be displayed.

Press the "SET" button. Press "+" or "-" to set the desired temperature (press and hold "+" or "-" to increase or decrease quickly).

Press "SET" to confirm the setting and return. The controller will automatically switch the relay ON/OFF.

The thermostat output is a 10A relay, suitable for a variety of high-power loads. LED Indicator: An off LED indicates the relay is off; an illuminated LED indicates the relay is closed.

Digital LED Tubes: "LL" indicates the sensor is open; "HH" indicates an out-of-range condition, and the relay will be forcibly disconnected.

Press and hold the "SET" button to enter the main menu settings.

Press "+" or "-" to switch between P0-P6, then press and hold "SET" or leave it blank for 10 seconds to confirm the setting and return.

Return to factory settings ----- When powered off, press and hold the "+" or "-" button. Then, power on; it will display "888" to restore factory settings.

Package includes:

1 piece 12V DC digital temperature controller board with clear acrylic case
