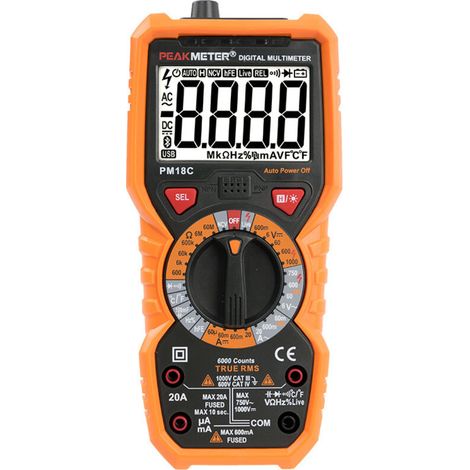

PM18C Digital Multimeter AC/DC Automatic Digital Electrical Tester Non-Contact Voltmeter Ammeter Ohmmeter Voltage Detector Hold with Backlit Display

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by AINSCO

Product information

Description

General Description

The PM18C digital multimeter is a versatile and essential tool for electricians, DIY enthusiasts, and home users. It allows for the safe measurement of AC/DC voltage, AC/DC current, resistance, diode, capacitance, frequency, and much more. Thanks to its ergonomic design and robust construction, it is both comfortable to use and durable. This multimeter features a 2.75-inch backlit LCD screen, a data hold function, and a built-in flashlight for use in low-light conditions.

Technical Specifications

DC Voltage Range: 600 mV/6 V/60 V/600 V ± (0.5% + 3), 1000 V ± (0.5% + 3)
AC Voltage Range: 6 V/60 V ± (0.8% + 3), 600 V/750 V ± (1% + 10)
DC Current Range: 60 μA/60 mA/600 mA ± (0.8% + 3), 20.00 A ± (1.2% + 3)
AC Current Range Current: 60 mA/600 mA ± (1% + 3), 20 A ± (1.5% + 3)
Resistance range: 600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ ± (0.8% + 3), 60 MΩ ± (1.2% + 3)
Frequency range: 0/600/6k/60k/600k/6m/10 MHz ±1.0% + 3
Temperature range: -20°C to 1000°C / -4°F to 1832°F ±1.0% + 3
Maximum value: 6000
Batteries: 4 x 1.5 V AA (not included) included)

Compatibility and Accessories

Uses type K thermocouples to measure temperatures up to 250°C
Short-circuit protection
Automatic power-off

Applications

The PM18C is ideal for diagnostics, repair, assembly and wiring. It is widely used in schools, laboratories, factories, and other environments requiring precise electrical measurements.
