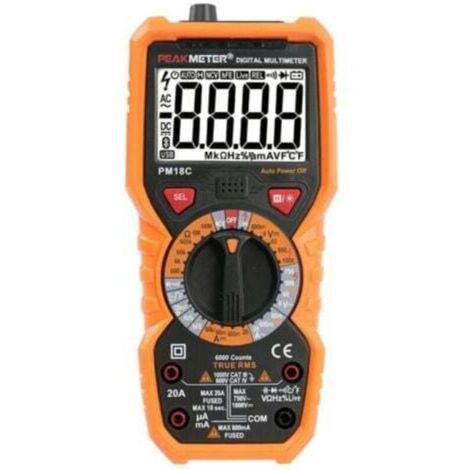

PM18C Digital Multimeter AC/DC Automatic Digital Electrical Tester Non-Contact Voltmeter Ammeter Ohmmeter Voltage Detector Hold with Backlit Display

~~£96.15~~

Of which environmental contribution £0.10 including VAT.

Sold by Sinocor GmbH

Product information

Description

General Description

The PM18C digital multimeter is a versatile tool designed to safely measure AC/DC voltage, AC/DC current, resistance, diode, capacitance, and frequency. It is equipped with type K thermocouples for measuring temperatures up to 250 degrees Celsius and can also measure ambient temperature without a probe. Its ergonomic design and robust construction make it an ideal choice for electricians, DIY enthusiasts, and home use.

Technical Specifications

DC Voltage Range: 600 mV/6 V/60 V/600 V ± (0.5% + 3), 1000 V ± (0.5% + 3)
AC Voltage Range: 6 V/60 V ± (0.8% + 3), 600 V/750 V ± (1% + 10)
DC Current Range: 60 μA/60 mA/600 mA ± (0.8% + 3), 20.00 A ± (1.2% + 3)
AC Current Range: 60 mA/600 mA ± (1% + 3) 20 A ± (1.5% + 3)
Resistance range: 600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ ± (0.8% + 3), 60 MΩ ± (1.2% + 3)
Frequency range: 0/600/6k/60k/600k/6m/10 MHz ±1.0% + 3
Temperature range: -20°C to 1000°C / -4°F to 1832°F ±1.0% + 3
Maximum value: 6000
Batteries: 4 x 1.5 V AA (not included)

Applications

The PM18C is ideal for diagnostics, repair, assembly and The wiring. It is widely used in schools, laboratories, and factories. Thanks to its data hold mode, it allows for easy recording of screen readings, even in low-light conditions, thanks to its 2.75-inch backlit LCD screen.

Other Information

Short-circuit protection
Automatic power-off
Modern and sophisticated design
Built-in flashlight for use in the dark
Non-contact voltage testing for added safety

Features

Brand
TEHTUY
NF certification
NF011
Warranty
1 year(s)
Certification body
S2
Origin
Made in Serbia
