PM18C Digital Multimeter AC/DC Automatic Digital Electrical Tester Non-Contact Voltmeter Ammeter Ohmmeter Voltage Detector with Hold Function and Backlight

Description

General Description

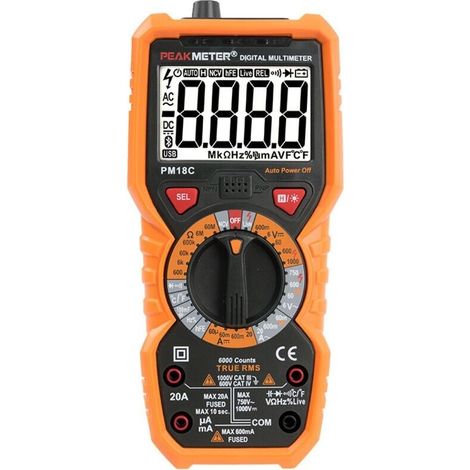

The PM18C digital multimeter is a versatile and indispensable tool for electricians and DIY enthusiasts. It allows for the safe measurement of AC and DC voltage, AC and DC current, resistance, diodes, capacitance, frequency, and much more. Thanks to its ergonomic design and robust construction, it is both comfortable to use and durable. This multimeter features a 2.75-inch backlit LCD display, ideal for low-light conditions, and a data hold function to save readings. Specifications: DC voltage range: 600 mV/6 V/60 V/600 V ± (0.5% + 3), 1000 V ± (0.5% + 3) AC voltage range: 6 V/60 V ± (0.8% + 3), 600 V/750 V ± (1% + 10) DC current range: 60 μA/60 mA/600 mA ± (0.8% + 3), 20.00 A ± (1.2% + 3) AC current range: 60 mA/600 mA ± (1% + 3), 20 A ± Resistance range: 600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ ± (0.8 % + 3), 60 MΩ ± (1.2 % + 3)

Frequency range: 0/600/6 kΩ/60 kΩ/600 kΩ/6 mΩ/10 MHz ±1.0 % + 3

Temperature range: -20 °C to 1000 °C / -4 °F to 1832 °F ±1.0 % + 3

Maximum value: 6000

Batteries: 4 x 1.5 V AA (not included)

Compatibility and Accessories

Uses a type K thermocouple (not included) to measure temperatures up to 250 °C.

Applications

The PM18C is designed for a wide range of applications such as diagnostics, repair, assembly, and wiring. It is widely used in schools, laboratories, and factories and is a reliable tool for troubleshooting household appliances or vehicles.

Further Information

The multimeter is equipped with short-circuit protection and an automatic shut-off function for safe operation. It also features a low-battery warning and an integrated flashlight for working in dark environments.
