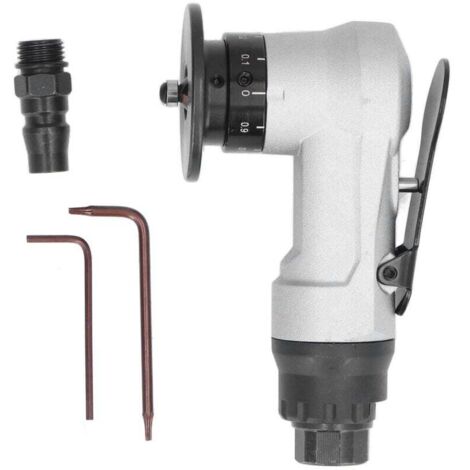

Pneumatic Chamfering Machine Deburring Tool 30000 RPM, Handheld Linear Cutting Deburring Tool with 45° Arc Cutter
Buying for your business?
Negotiated prices excl. VAT up to -20%
You may also like
Bahco 316-1 Pen Reamer Tool De-burring ToolKnife Copper Plastic Brass Pipe
Professional Air-Powered Random Orbital Sander, High-Performance Mini Dual-Action Pneumatic Polisher with 9500 RPM (1 pc, 125 mm)
Compare with similar items
Product information
Description
【Adjustable Mini Chamfering Tool】: The speed can reach 30,000 rpm, and the depth is 0.1-1.5 mm. Five speeds can be freely adjusted to the appropriate speed for use, which can improve blade life and is easy to operate.
【Much Safer】: The pressure plate type safety switch can reduce unnecessary injuries. Steel alloy deflector, safety loop, and metal button switch for safe use.
【Easy to Replace】: Use a hex key to loosen the plumb screw, remove the deflector plate, remove the blade screw with a ring spanner, remove the old blade, and replace it with a new one.
【Stable Speed】: The pneumatic metal chamfering tool can withstand high impact and high speed with minimal vibration, low resistance, and reduced loss. The speed is increased, the chamfer is smoother, and the chamfering machine is more durable.
【High Cutting Efficiency】: The improved version of the pneumatic chamfering tool features a new, fully chrome-plated aluminum shell with high-quality bearings and is equipped with high-precision, heat-treated blades for improved performance and smoother deburring and chamfering.
|
|
|
|
|---|---|---|
Activation SwitchLightweight and easy one-handed operation, quickly cuts straight and rounded corners | Chamfer Size AdjustmentUnscrew the screw, turn to select the scale size and tighten the screw | 360-Degree Rotating Exhaust PortFaster exhaust, lower cylinder temperature |
Package List:
1x Pneumatic Chamfer
1x Hex Key
1x Wrench
1x Pneumatic Connector
1 User Manual
Mini Portable 45 Degree Arc Chamfering Machine
Specification:
Item Type: Pneumatic Chamfering Machine.
Product Material: Tungsten Carbide + Aluminum Alloy
Product Model: KP-5704
Air Consumption: 0.14m³/min
Bevel Capacity: C0.1-C1.5
No-Load Speed: 30000 rpm
Chamfer Opening: Approx. ≥7mm/0.28in
Adjustable Depth: 0.1-0.9mm Steps to Replace the Cutting Head:
1. Use the appropriate wrench to lock the internal hexagon of the deflector;
2. Unscrew the screws and remove the lower deflector;
3. Use the wrench to remove the blade.
Features
- BrandSNQ
- MaterialTungsten carbide
- ManoMano ReferenceME96210614
- MMID569528830561
- Product codeLG-FD-03793
- EAN6919595198617
