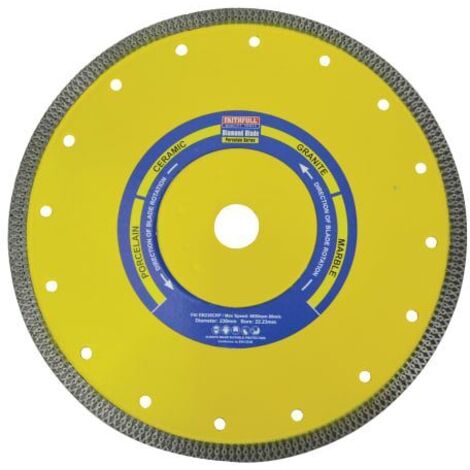

Faithfull Porcelain and Granite Diamond Cutting Blade 230 x 22.23mm FAIDB230CRP

Name: Faithfull Porcelain and Granite Diamond Cutting Blade 230 x 22.23mm FAIDB230CRP
Brand: FAITHFULL
SKU: FAIDB230CRP
Price: 37.21 GBP
Availability: InStock

Sold by GravaHaus and 5 other sellers

Product information

Description

General description

This porcelain diamond blade is designed for cutting porcelain tiles and similar materials. It is engineered to provide clean, precise cuts with durability and efficiency.

Technical specifications

Diameter: 230mm

Bore: 22.23mm

Maximum RPM: 13,300

Depth of rim: 10mm

Compatibility and accessories

Compatible with standard angle grinders and cutting tools that accept a 22.23mm bore

Installation

Ensure the power tool is unplugged before installation

Attach the blade securely to the tool's arbor, ensuring it is properly aligned and tightened

Check that the blade is correctly mounted before use

Usage

Use with appropriate safety gear, including gloves and eye protection

Operate at recommended RPM to prevent damage

Cut slowly and steadily to achieve clean cuts and prolong blade life

Wet cutting is recommended for a longer blade life and dust suppression, but they can also be used dry

Other information

All blades have a centre core reinforcement plate that prevents the blade de-tensioning to increase blade life and reduce vibration

Conforms to EN 13236

Features

Brand
FAITHFULL
Colour
Multicolour
NF certification
NF230
Bore diameter
22.2 mm
Disc / blade diameter
230 mm
