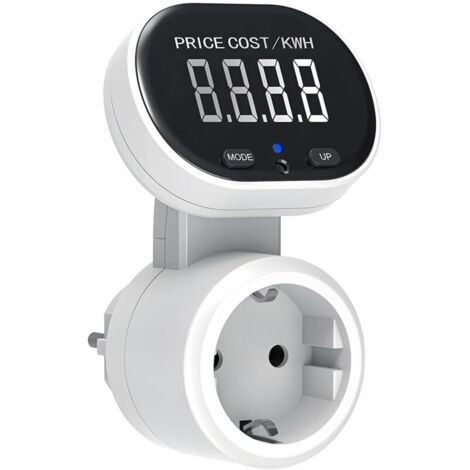

Power Meter Plug-in Energy Meter, Electricity Meter, Power Consumption Plug-in, Measures Power Consumption in Watts, kWh, Price, Cost/kWh, 45° Rotating Display, Backlit, 3680W Max
You may also like
Compare with similar items
Product information
Description
SPECIFICATIONS
Power Supply: 230V~50Hz
Maximum Load: 16A, 3680W
Minimum Power Display: 0.3W
Power Measurement Accuracy: +/-2%
Energy Quantity Accuracy: +/-2%
Minimum Energy Quantity Display: 0.01KWH
Stored Energy Range: 0.00-9999.9KWH
Price Range: 0.00-9999
DATA DISPLAY
Press the MODE button, the data is displayed as follows: W → kWh → PRICE → COST/KWH
1). Plug in the power cord and turn on the device; the meter will display the actual power consumption.
2) Press and release the MODE button again; the meter will display the cumulative kWh consumption.
3) Press and release the MODE button again; the meter will display the total energy price.
4) Press and release the MODE button again; the meter will display the COST/kWh.
SETTING THE COST/kWh PRICE
1) Press and hold the MODE and UP buttons simultaneously while the COST/kWh is displayed. The first digit of the COST/kWh will flash; press the UP button to adjust it.
2) Press and release the MODE button again; the second digit of the COST/kWh will flash; press the UP button to adjust it.
3) Press and release the MODE button again; the third digit of the COST/kWh will flash; press the UP button to adjust it.
4) Press and release the MODE button again; the fourth digit of the COST/kWh will flash. Press the UP button to adjust it. 5) Press the MODE button to confirm all data settings. CAUTION! 1. Do not connect two or more meters together! 2. Do not connect any appliance with a load exceeding 16 Amps. Always ensure that the plug of any appliance is fully inserted into the meter socket. If the meter needs cleaning, unplug it from the mains and wipe it with a dry cloth.
Features
- BrandTEHTUY
- Power1 W
- Voltage1 V
- Amperage1 A
- Frequency50 Hertz
