Pressure Reducer Compressed Air Maintenance Unit 1/4" Pressure Regulator with Water Separator and German Quick Couplers for Compressor Filter and Pneumatic Tools
You may also like
Compare with similar items
Product information
Description

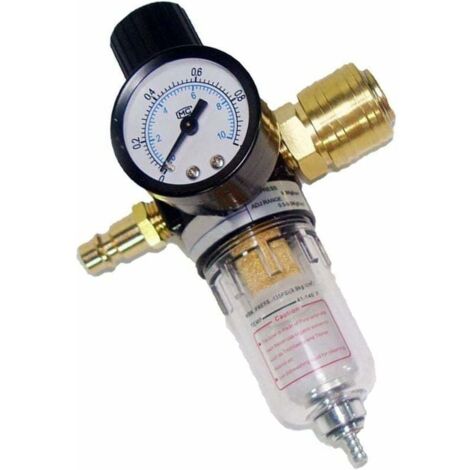

The compressed air filter is an efficient maintenance unit, integrating a filter and a water separator, specially designed for use on compressors. It protects compressed air devices from mechanical impurities and water while maintaining a constant working pressure, ensuring uniform air discharge and optimal operation.
Technical SpecificationsCondition: 100% Brand New
Material: Copper, Stainless Steel, Plastic
Pressure Adjustment Range: 0.5-8.5 kg/cm²
Maximum Adjustable Pressure: 9.5 kg/cm²
Working Medium: Air
Caliber: 1/4 inch
Filter Element Accuracy: 40 μ
Pressure Resistance: 15 kg/cm²
Water Filter Capacity: 15 cc
Operating Temperature Range: 5-60°C
Compatibility and AccessoriesIncludes a compressed air filter and quick couplings.
InstallationEasy to install thanks to its small size and light weight. The oil-water separator allows the distribution of clean, dry air.
UseThe pressure regulator is adjustable by pulling and turning the knob on top to set the desired pressure. It is designed to reduce boiler pressure to operating pressure and to filter condensate.
Other informationReplaceable filter element to intercept oil and water particles in the compressed air.
Semi-automatic drain for easy maintenance.
Built-in pressure gauge for adjusting operating pressure.
Features
- BrandWOIYIC
- Pcs per pack1
- ColourBlack
- Compressor accessory typeFilter
- ManoMano ReferenceME96135566
- MMID657097986736
- Product codeMM-Tina-UN0503
- EAN9324622846640
