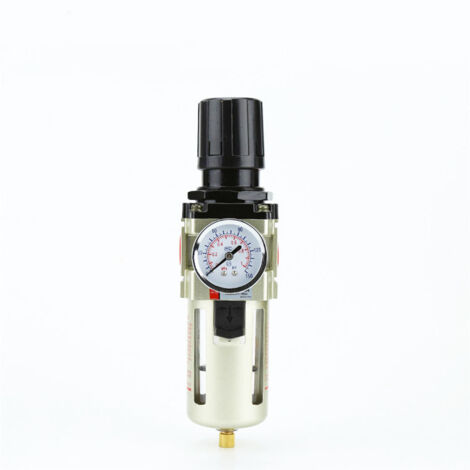

Pressure reducer, compressed air regulator, filter and pressure gauge, 1/2 inch internal thread (G1/2).
You may also like
Compare with similar items
Often purchased together
Product information
Description
This compressed air regulator with filter and pressure gauge ensures dry, clean and pressure-regulated air.
By mounting it on compressors, connecting it to compressed air lines or connecting it to compressed air devices such as paint guns and airbrush devices, the compressed air flowing through is freed of dirt and condensate thanks to a fine fiber filter. This significantly improves the air quality and extends the service life of the tools.
The stepless pressure adjustment is done manually by turning the upper wheel. From now on, you no longer have to worry about pressure fluctuations. The maximum pressure is 10 bar.
The water separator collects the water contained in the compressed air. The separator housing is made of aluminum. The condensate collects in a clearly visible filter bell so that you can control the amount. By operating a valve, condensate can be drained very quickly!
Accessory type: with pressure gauge + bracket
Voltage: No power required
< p>Working pressure: 0.05 ~ 1 MPaDrainage method: differential pressure + manual drainage
Type: pressure regulator filter
Filter accuracy: 40
Features
- BrandAOUGO
- Pcs per pack1
- NF certificationNF138
- OriginMade in Serbia
- ColourSilver-coloured
- Connection configurationFemale
- Pipe thread size1/2" (15x21)
- Height10 mm
- MaterialMetal
- Weight1200 g
- Working pressure10 bar
- Pressure10 bar
- Compressor accessory typeTemperature control
- ManoMano ReferenceME68444491
- MMID354227657879
- Product codeAG-09242
- EAN9412349319131
