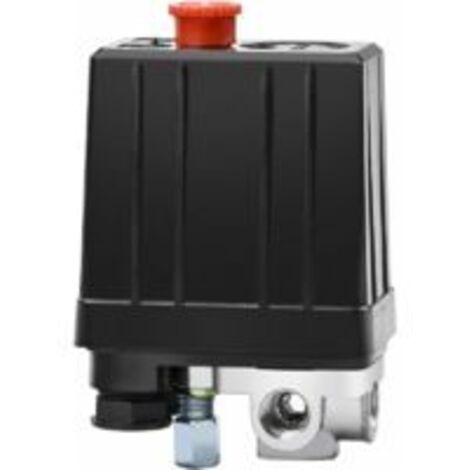

Pressure switch for air compressor with 4 outputs, 90–120 PSI, 240 V, control valve, compressor parts

Sold by HYPERDROP

You may also like

Compare with similar items

Product information

Description

Overview

The SG-3B four-hole switch is designed for efficient use in various pneumatic systems.

Technical Data

  • Pressure range: 0.5–0.8 MPa (90–125 PSI)
  • Model: SG-3A Vertical One-Way Switch
  • Dimensions: 82 x 52 x 127 mm (L x W x H)
  • Rated voltage: 220/380 V
  • Exhaust tube: 6 mm
  • Contact type: Normally closed
  • Connection size: 1/4 inch, female thread approx. Safety connection outer diameter: 9.5 mm
  • Maximum current: 16 A
  • Operating pressure: 5–8 kg (90–125 PSI)
  • Lifespan: 80,000 switching cycles

Compatibility and Accessories

Compatible with standard pneumatic systems requiring a four-hole switch. No additional components are required for installation.

Installation

Easy installation; the switch can be mounted without special knowledge. Be sure to follow the enclosed instructions to ensure correct installation.

Application

Ideal for pressure control in pneumatic systems. This switch allows for efficient control of connected devices.

Further Information

Dimensions may vary slightly due to manufacturing tolerances. Please check the dimensions before installation.

Features

  • Brand
    MIMIY
  • Length
    82 mm
  • Width
    52 mm
  • Height
    127 mm
  • Voltage
    240 V
