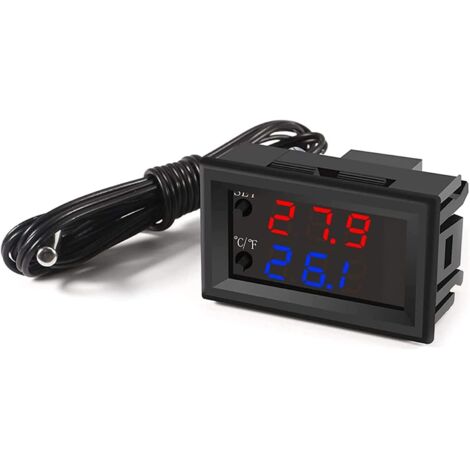

Programmable 12V DC temperature controller -50110℃, red/blue LED display monitor, heating/cooling thermostat control module with 10K NTC waterproof sensor probe
You may also like
Compare with similar items
Product information
Description
Temperature measurement range: -50 to 110 °C (-58 to 230 °C) ℉; Resolution: 0.1℃ at -9.9 to 99.9, and 1℃ between other temperatures; Refresh rate: 0.5 s
Dual-color LED display: The temperature controller monitors the instrument and simultaneously displays the measured temperature (red) and the set temperature (blue). Can be used in cooling/heating mode to test indoor or outdoor temperature.
Waterproof design: The NTC probe (10K 0.5%) is waterproof, allowing you to control the temperature at will. You can also control heating or cooling according to different needs.
Reliable to use: The electronic temperature control switch module has been tested for consistency and reliability, with a control accuracy of 0.1 degrees Celsius and a response accuracy of 0.1 degrees Celsius, featuring high-temperature protection.
Wide range of applications: This electronic thermostat can be widely used in smart home and industrial appliances, household appliances, automatic irrigation, office equipment, audio equipment, automobiles, aquariums, and more.
Temperature setting:
Press the set button for five seconds to enter the main configuration menu. Press STC(+) and C/F(-) to switch to P0 - P8.
Press the STC button and the LED will flash. Press the STC(+) and C/F(-) buttons to reach the set temperature and wait 3 seconds before the module automatically saves the settings and exits.
Index:
Light is on and the relay is closed; Light is off and the relay is off.
LED display:
Red: Measured temperature; Blue: setting temperature
LLL: indicates that the sensor is on
HHH: indicates that the temperature is outside the module's measuring range
: indicates that the module is protected against high temperature Introduction to Programmable Thermostat (Code, description, setting range, factory setting):
P0, heating/cooling, H/C, C
P1, returns difference, 0, 1-30, 2
P2, set maximum limit, +110, 110
P3, set minimum, -50, -50
P4, temperature correction, -15 - +15, 0
P5, delayed start, 0 - 10, 0
P6, high temperature alarm, -50 - +110, off
P7, C/F, CS/FH, CSP8, factory reset, ON-OFF, OFF
Features
- BrandWOIYIC
- Weight250 g
- MaterialPolystyrene (PS)
- ColourBlack
- Thermostat typeProgrammable
