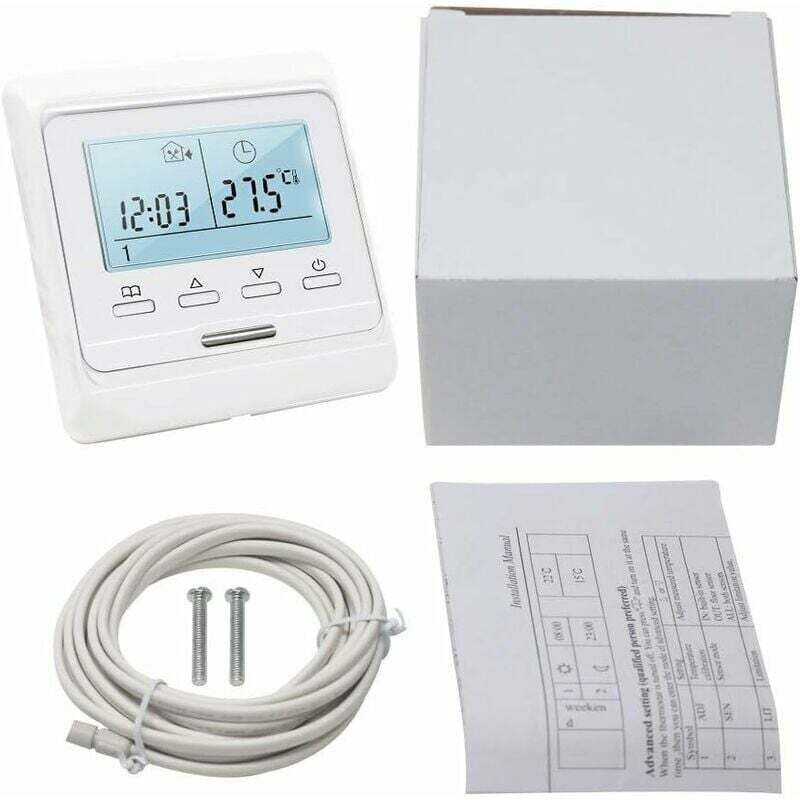

Programmable room thermostat with 16A probe for electric underfloor heating, digital thermostat for electric floor heating

General Description

The programmable room thermostat with 16A probe is designed for electric underfloor heating. It is equipped with a large backlit LCD screen for ease of use. This thermostat is compatible with electric heaters and on/off valve actuators in water heating systems.

Technical Specifications

• Temperature setting range: 5℃ to 90℃
• Power supply: AC 230V, 50/60Hz
• Output: 16A
• Mounting: Flush-mounted
• External temperature sensor: 3 m

Programming

This thermostat offers flexible programming with the following options:

• 5+2 days
• 6+1 days
• 7 days
• It allows up to 6 setting periods per day, optimizing heating according to your needs while reducing energy costs.

Operating Modes

In addition to programming, the thermostat has a manual mode to maintain a temperature constant in the room.

Other information

• Additional functions: temperature calibration, child lock, frost protection, high/low temperature protection, data storage on power off.

•
