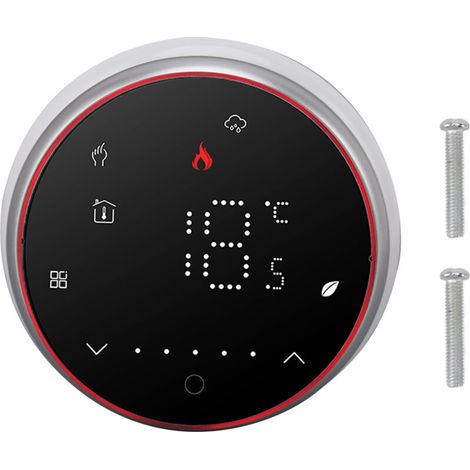

Programmable thermostat for electric heating, round base, 13mm recessed panel, LED display, wireless, smart, AC95 240V, black

General Description

The programmable thermostat for electric heating is a smart, wireless device designed to provide precise temperature control in your home. Its user-friendly LED display makes it easy to view settings and the current temperature. Its recessed panel, only 13 mm thick, adapts to various installation environments, making it both practical and aesthetically pleasing.

Technical Specifications

• Item Type: Programmable Thermostat
• Material: PC, ABS
• Weight: Approx. 200 g / 7.1 oz
• Voltage Range: AC95-240V
• Current: 16A
• Sensor: NTC3950, 10K
• Temperature Error: ±1 degree Celsius
• Temperature Control Range: 5-35 degrees Celsius
• Ambient Temperature Range: 5 to 99 degrees Celsius
• Display Temperature Range: 5 to 99 degrees Celsius
• Normal Operating Environment Temperature: 0 to 45 degrees Celsius
• Humidity Normal working environment: 5 to 95% RH (non-condensing)
• Storage temperature: -10 to 45 degrees Celsius
• Time error: < 1%
• Mounting insertion box: 86 x 86 mm / 3.4 x 3.4 inches or standard European style concealed box
• Connector: 2 x 1.5 mm² or 1 x 2.5 mm²
• Protection rating: IP20
• Key type: Capacitive touch keys

Installation

This thermostat is designed to be installed in a standard 86 mm square concealed box or a 60 mm European style box. The installation steps are as follows:

• Disconnect the main power supply.
• Separate the mounting panel by rotating the frame from the screen.
• Install the screws accordingly.

Usage

The thermostat allows you to program up to 5+1+1 setting modes per week, with 6 programmable time slots per day. This feature allows you to adjust the temperature according to the user's needs, thus promoting energy savings and environmental responsibility.

Other Information

• Power failure protection: saves all user settings, even in the event of a power outage.
