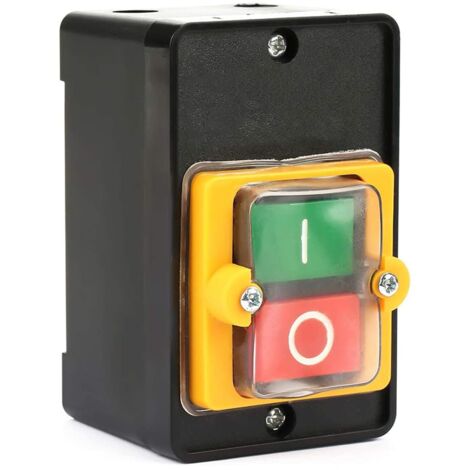

Push Button Switch, AC 220V/380V 10A Waterproof Power Control Button Switch On Off Button Machine Tool Switch Machine Tool

Name: Push Button Switch, AC 220V/380V 10A Waterproof Power Control Button Switch On Off Button Machine Tool Switch Machine Tool
Brand: TINOR
SKU: TiR-UK-04954
Price: 5.99 GBP
Availability: InStock

~~£17.58~~

Sold by Tinor-GB

Product information

Description

General description

The Push Button Switch is a versatile and waterproof power control switch designed for various applications, including mechanical equipment, textile machinery, and industrial settings. It features self-locking ON push buttons and automatically resetting OFF push buttons, ensuring reliable operation. The switch is made from PC flame retardant material, providing durability and protection against water and oil.

Technical specifications

Voltage: AC 220V/380V

Current: 10A

Power capacity: Less than 1500W

Mounting hole distance: Approximately 7.7cm

Frequency: Suitable for AC 50Hz (60Hz) electrical circuits

Installation

Wiring includes hot wire and zero wire

Compatible with both 220V single-phase and 380V three-phase wiring

Inner screw terminals for easy wiring

Usage

Press the green button to turn the switch ON (lock switch)

Press the red button to turn the switch OFF (green button lights up)

Can control motors directly without the need for a contactor

Other information

Waterproof and oil-proof design for longer use

Commonly used in distribution boxes, ships, and operation rooms

Features

Brand
TINOR
Amperage
10 A
With indicator light
Yes
Switch and socket combination
Yes
Complete / Composable
Switch parts
Smart
Yes
Waterproof
Yes
IP rating
IP65
Material
Plastic
Switch mechanism
Push-button
Pack
Yes
Weight
100 g
Voltage
380 V
ManoMano Reference
ME94197501
MMID
244165917341
Product code
TiR-UK-04954
EAN
8420468934068
