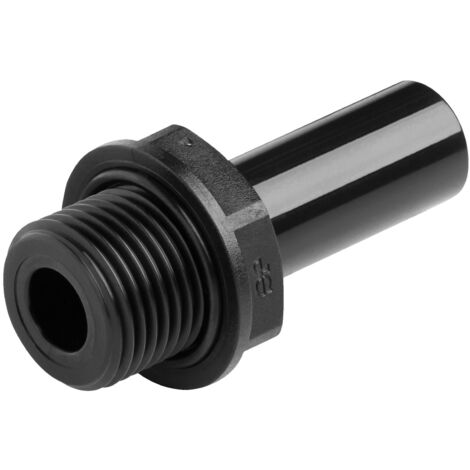

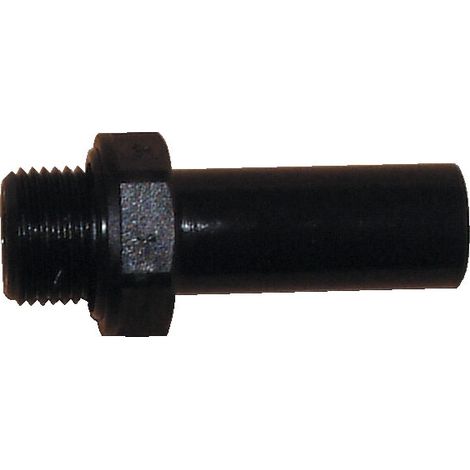

John Guest Speedfit 22mm x 1/2" Stem Adaptor - Black (Pack of 10) PM052214E

Name: John Guest Speedfit 22mm x 1/2" Stem Adaptor - Black (Pack of 10) PM052214E
Brand: JOHN GUEST SPEEDFIT
SKU: ZT1065131X
Availability: OutOfStock

(£1.88/pc)

Product out of stock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Product information

Description

General description

John Guest 22MM X 1/2" BSP Ring Main Stem Adaptor is designed to convert push-fit connections to male thread, making it an essential component for compressed air systems. This adaptor allows for quick and easy installation, minimizing the need for specialized staff and reducing production downtime. The push-fit system enables all connections to be made with a simple push-in action, eliminating the need for preparing threaded pipes or solvents. This system can be easily disconnected, altered, and extended as needed.

Technical specifications

Body Material: Plastic

Diameter: 1/2" (22mm)

Operating Pressure: Up to 10 bar

Operating Temperature Range: -20°C to +70°C

Pipe Outer Diameter: 22mm

Thread (BSP): 1/2 inch

Maximum Torque Values: 3.0 Nm for plastic threads (3/8" and 1/2"), 4.0 Nm for metal threads (1/2" and 3/4"), 5.0 Nm for metal threads (3/4")

Size Tolerances: +0.05 to -0.10mm OD

Size Range: 12mm to 28mm OD

Other information

John Guest 22MM X 1/2" BSP Ring Main Stem Adaptor

Features

Brand
JOHN GUEST SPEEDFIT
Origin
Made in the United Kingdom
Colour
Black
Connection configuration
Male
Bit diameter
22 mm
Inside diameter
22 mm
Pipe thread size
1/2" (15x21)
Output thread
1/2" (15x21)
Fitting shape
Straight coupling
Material
Plastic
Compressor accessory type
Fitting
ManoMano Reference
ME12407011
MMID
795093001054
Product code
ZT1065131X
EAN
0665626063411
