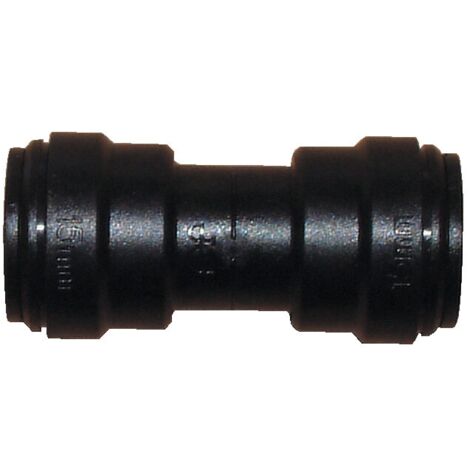

John Guest 15mm Ringmain Straight Connector

Reference: ME12407020

In stock

View full description
£3.49
  • Free delivery (postcode specific)
Available models:
£3.49
  • Free delivery (postcode specific)

Quantity:
- +

Uh oh…it's not possible to order less than 1 unit of this product.

Sorry, you can only order up to 63 units of this product!

Secure payment by debit or credit card

Available delivery options:
  • Standard delivery in 4 to 5 working days (Free delivery)

Delivery to the British Isles only (UK, Jersey and Guernsey)

Sold by: Zoro Tools

John Guest 15mm Ringmain Straight Connector
£3.49

Description

John Guest: 15mm Ringmain Straight Connector

John Guest
Straight Connectors
Used to connect pipe end to end.

Push-fit System - Compressed Air
Range of push-in fittings and pipe provide the ideal connection from compressor to air-line service components through to complete ring main and take off points. A compressed air system can be installed quickly and easily, reducing the need for specialist staff providing reduced production down time.
All the connections can be made with a simple push-in action, no need to prepare threaded pipe or solvent. The system will be ready for use immediately and complex systems much more rapidly than traditional methods. Because of the ease of use, this system can be disconnected, altered and extended.
Suitable for use with a wide range of plastic and soft metal pipes including UPVC, ABS, Polyethylene, nylon, mild steel and copper.
It is recommended that all installations are checked prior to use to determine that a seal has been made. The maximum torque figures quoted are dependent on the mating thread conforming to the relevant British or International thread standard.

Working Temperature Range
Minimum Working Temperature -20°C
Maximum Working Temperature +70°C

Working Pressure
Temperature: +23°C. Pressure: 10bar.
Temperature: +70°C. Pressure: 7bar.

Tolerances
Size: 12mm to 28mm OD. Tolerance: +0.05 to -0.10mm OD.

Maximum Torque Values
Size: 3/8". Plastic threads: 3.0Nm. Metal threads: N/A.
Size: 1/2". Plastic threads: 3.0Nm. Metal threads: 4.0Nm.
Size: 3/4". Plastic threads: 4.0Nm. Metal threads: 5.0Nm.
Size: 1". Plastic threads: N/A. Metal threads: N/A.

MPN: PM0415E

EAN: 0665626061066
John Guest 15mm Ringmain Straight Connector

15mm Ringmain Straight Connector Attributes:

Pipe Outer Diameter : 15mm
Operating Temperature Range: -20 to +70°C
Body Material: Plastic
Diameter: 15mm
Operating Pressure: to 10bar
MFR Part No.: PM0415E
Additional Features: Push-fit System
Product Type: Straight Connector
  • Brand JOHN GUEST SPEEDFIT
  • Material Plastic
  • Shape Straight
  • Threading 3/8"
  • Type of product Threaded
  • ManoMano Reference ME12407020
  • SKU ZT1065151X
