Description

General description

The R503 Circular Round RGB Ring Indicator LED Control is a capacitive fingerprint module sensor scanner designed for various applications such as access control, attendance tracking, and safety deposit boxes. It integrates an image collecting and algorithm chip, allowing it to adapt to different finger conditions, including dry, wet, and aged fingerprints, ensuring a high recognition rate.

Technical specifications

Supply voltage: DC 3.3V

Working current: 30mA (typical), 40mA (maximum)

Fingerprint image entry time: Less than 0.3 seconds

Acquisition window area: 15mm in diameter

Image pixel: 192 x 192 pixels

Image resolution: 508 dpi

Match method: Comparison method (1:1), Search method (1:N)

Storage capacity: 200 fingerprints

Security level: 5 (from low to high: 1 to 5)

False Recognition Rate (FAR): Less than 0.0001%

Authentic Rejection Rate (FRR): Less than 1.0%

Search time: Less than 0.3 seconds (1:1000, average)

Host computer interface: RS232 (TTL logic level, 3.3V)

Communication baud rate: (9600 x N) where N=1~12 (default value N=6, i.e., 57600 bps)

Working environment: Temperature: -20°C to +45°C, Relative humidity: 10% RH to 85% RH (non-condensing)

Thread diameter: 25mm

Fingerprint module height: 19mm

Other information

Features

Brand
TLILY
Length
10 cm
Width
1.9 cm
Height
1.9 cm
Voltage
3.3 V

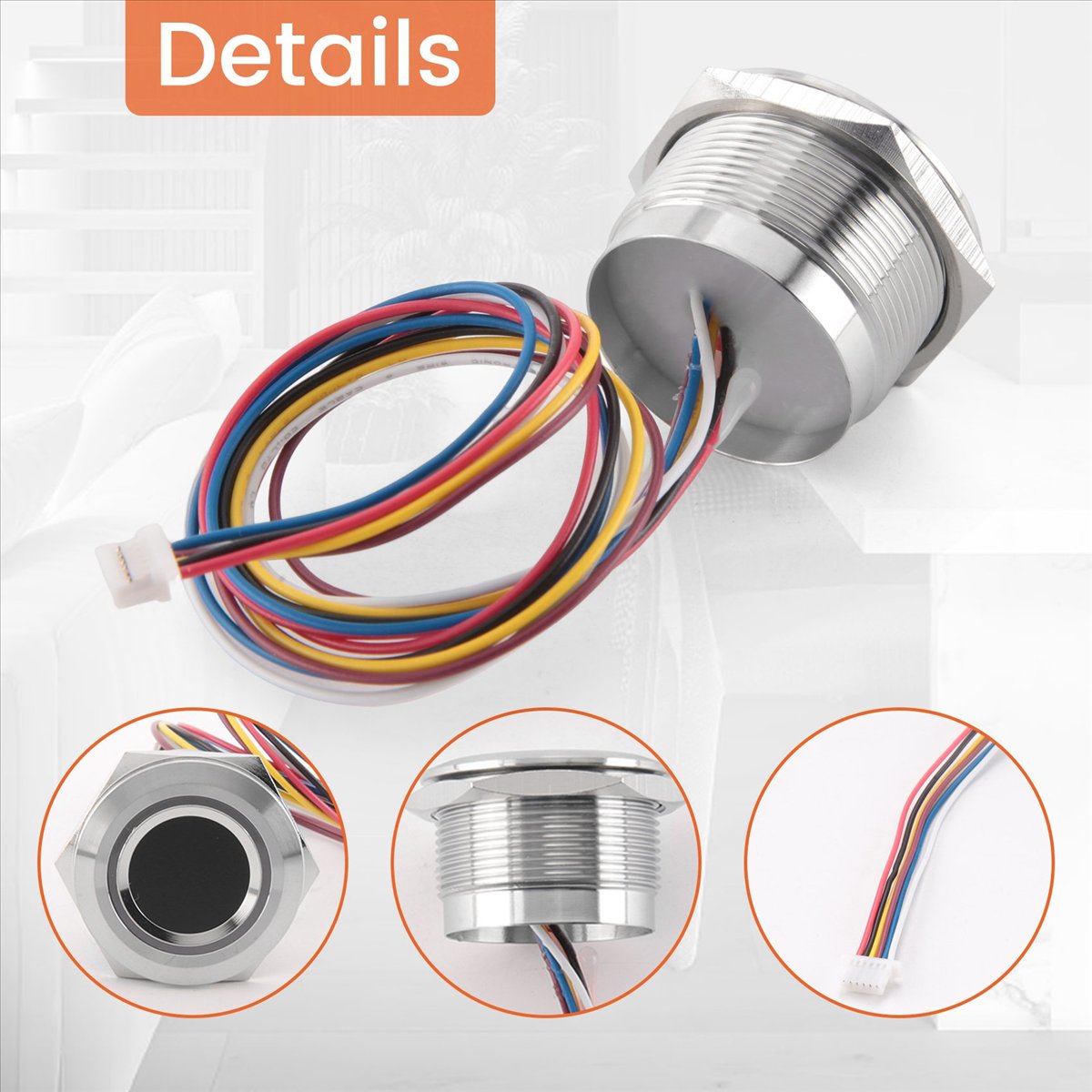

R503 Circular Round RGB Ring Indicator LED Control DC3.3V MX1.0-6Pin Capacitive Fingerprint Module Sensor Scanner, 19Mm
