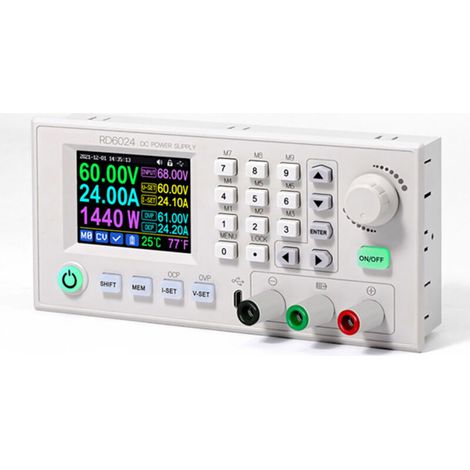

RD6024 24A 12V 36V 48V 60V Adjustable Step-Down Digital Constant Voltage Power Supplies 2.4-inch Colour Display Screen Data Storage Multifunctional PC Software Control

Features:

1. 2.4-inch Color Screen: These power supplies adopt a 2.4-inch color screen for clearer data viewing.
2. 3 Display Styles: The system defaults to the normal style; you can switch to the detailed style and the curve style according to your needs.
3. Supports 5 System Languages: The system language can be switched between Chinese, English, French, German, and Russian; you can choose the appropriate language according to your needs.
4. Output Power Limit: When setting the output voltage and current, the device will automatically adjust to ensure that the power does not exceed the set output power.
5. Data Storage & Call Out: This function is convenient and efficient, thanks to the simple setting to store and recall the adjustment parameters.
6. PC Software Control: The power supplies can be monitored and adjusted via PC software (supports only WIN7 or higher), with a user-friendly interface and powerful functions.
7. Multiple Protections: The output overvoltage (OVP)/overcurrent (OCP) value can be set. When the output voltage/current exceeds the protection value, the power supply will automatically shut off the output to prevent damage to the device.

Specifications:

The RD6024 series is a professional DC and constant voltage power supply, suitable for precision debugging, mobile phone maintenance, enterprise factories, electronic maintenance, and other uses. With a large 2.4-inch screen that offers a better user experience, go ahead and try it; it won't let you down.
Features:
2.4-inch Color Screen: This power supply adopts a 2.4-inch color screen to allow you to view data more clearly.
3 Display Styles: The system displays the normal style by default; you can change the detailed style and the curve style according to your needs.
Supports 5 System Languages: The system language can be switched from Chinese, English, French, German, and Russian; you can choose the appropriate language according to your needs.
Output Power Limit: When setting the output voltage and current, the device will automatically adjust to ensure that the power does not exceed the set output power.
Data Storage and Recall: This function is convenient and efficient, thanks to the simple setting for storing and recalling adjustment parameters.
PC Software Control: Power supplies can be monitored and adjusted via PC software (supports only WIN7 or higher), with a user-friendly interface and powerful functions.
Multiple Protections: The output overvoltage (OVP)/overcurrent (OCP) value can be set; when the output voltage/current exceeds the protection value, the power supply will automatically shut off the output to prevent damage to the device.Specifications: Material: ABS Input Voltage Ranges: 6-70.00 V Output Voltage Ranges: 0-60.00 V Output Current Ranges: 0-24.00 A Output Power Range: 0-1440 W Input Voltage Measurement Resolution: 0.01 V Output Voltage Setting Measurement Resolution: 0.01 V Output Current Setting Measurement Resolution: 0.01 A Battery Voltage Measurement Resolution: 0.01 V Input Voltage Measurement Accuracy: ± (1% + 5 digits) Output Voltage Accuracy Between Settings and Measurement: ±(0.3% + 3 digits)
Output current accuracy between setting and measurement: ±(0.5% + 5 digits)
Battery voltage measurement accuracy: ±(0.5% + 3 digits)
Automatic cutoff current value during charging: user-defined (greater than 100 mA)
Typical output ripple: 100 mV at 12 A, 150 mV at 24 A. VPP
Operating temperature ranges: -10°C ~ 40°C
External sensors Temperature detection ranges: -10°C ~ 100°C / 0°F ~ 200°F
External sensors Temperature detection accuracy: ±3 ℃/±6 ℉
Response time in constant voltage mode: 2 ms (0.1 A to 5 A load)
Charge regulation in constant voltage mode: ±(0.1% + 2 digits)
Charge regulation in constant current mode: ±(0.1% + 3 digits)
Capacity measurement ranges: 0-9999.99 Ah
Energy measurement ranges: 0-9999.99 Wh
Response time in constant voltage mode: ±2%
Maximum output voltage: (input voltage ÷ 1.1) - 1
Cooling fan start-up condition: Current Output >8A or System Temperature >45℃
Cooling Fan Shutdown Condition During Operation: Output Current Overheat Protection: System Temperature >80℃
Screen Brightness Adjustment: 0-5 (6 levels total)
Package Size: 240 * 110 * 90 mm / 9.4 * 4.3 * 3.5 inches
Package Weight: 713 g / 1.6 lb
Package List:
1 * RD6024 Power Supply

Package List:

1 * RD6024 Power Supply
