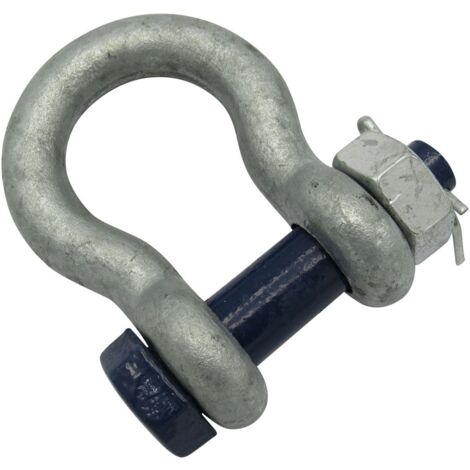

Safety Pin Bow Shackle 85T (Heavy Duty Galvanised 85000KG 80MM)

You may also like

Compare with similar items

Product information

Description

General description

The Safety Pin Bow Shackle 85T is a heavy-duty galvanised shackle designed for various lifting and towing applications. With a safe working load (SWL) of 85 tons, it features a safety screw pin that prevents slipping, ensuring extra security and peace of mind during use. The bow shape allows for a wider lifting point compared to a Dee shackle, making it versatile for both inline lifting and lifting at angles of up to 45 degrees.

Technical specifications

  • Product Code: SFUSSAB85
  • Product Weight: 62 kg
  • SWL: 85 tons
  • Body Finish: Hot Dipped Galvanised
  • Safety Factor: 5:1
  • Dimensions:
  • A (MM): 79
  • B (MM): 80
  • C (MM): 127
  • D (MM): 160
  • E (MM): 335
  • F (MM): 190
  • G (MM): 95
  • Other information

  • Conforms to US Federal Specification RR-C-27IDIV
  • Conforms to BS EN 13889: 2003 + A1: 2008
  • Test Certificate Supplied (Sent Via Email)
  • Features

    • Brand
      SECUREFIX DIRECT
    • Weight
      100 g
    • Material
      Steel
    • Maximum load
      80 kg
    • Pcs per pack
      1
