Safety Pin Bow Shackles X2 - 1.5 Ton Galvanised 13MM 1500KG Omega

Name: Safety Pin Bow Shackles X2 - 1.5 Ton Galvanised 13MM 1500KG Omega
Brand: SECUREFIX DIRECT
SKU: SFUSSAB1.5
Price: 9 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

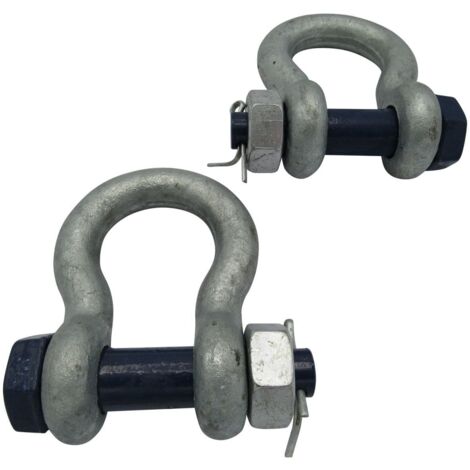

Safety Pin Bow Shackles X2 are designed for heavy-duty applications with a safe working load (SWL) of 1.5 tons (1500 kg). These shackles feature a hot-dipped galvanised finish, providing excellent resistance to rust and ensuring durability over time. The blue painted safety pin enhances security by preventing the pin from slipping, offering peace of mind during use. Bow shackles are versatile and can be used for lifting and towing, accommodating both inline lifting and lifting at angles of up to 45 degrees.

Technical specifications

Product Code: SFUSSAB1.5

Product Weight: 0.42 kg

SWL: 1.5 tons (1500 kg)

Body Finish: Hot Dipped Galvanised

Safety Factor: 5:1

Dimensions:

A (MM): 11

B (MM): 13

C (MM): 20

D (MM): 26.5

E (MM): 41.5

F (MM): 29

G (MM): 14.5

Other information

Conforms to: BS EN 13889: 2003 + A1: 2008

US Federal Specification: RR-C-27IDIV

Test Certificate Supplied (Sent Via Email)

*Please note colour can vary from picture*

Features

Brand
SECUREFIX DIRECT
Width
1.3 cm
Material
Steel
Colour
Multicolour
Maximum load
1500 kg
