Monzana Sand Filter System with 320g Filter Balls Swimming Pool Filtration 4500 L/ h

Clean swimming pool water filter system including connection kit!

The sand filter system MZPP05 by monzana® is equipped with extensive accessories. The top-mount 4-way valve ensures perfect handling. You always have control over the optimal filter process via a convenient pressure display.

The sand filter system has a large tank volume of 12 litres; You can fill the filter bowl with filter sand or filter balls.

The supplied filter balls for sand filter pumps provide an excellent filter result and are recyclable due to the materials used. 320g filter balls replace 12 kg filter sand. The balls are easy to hand wash.

Please note:

1. Before first use, you must fill the filter tank completely with water, after that the sand filter system fills itself.

2. All external threads must be wrapped tightly, over the entire surface and against the direction of insertion with the sealing tape supplied.

3. To ensure proper functioning of the manometer, please leave the opening on the thread of the precision part uncovered.

Settings for the top-mount 4-way valve:

1. Backwash - cleans the filter

2. Rinsing - causes residual cleaning and compaction of the sand

3. Basin filtering - setting for normal operation

4. Winter - recommended position in winter months

Top water quality, water-saving & good for the environment.

Product advantages:

• High delivery rate of 4500 L / h
• Large tank volume: 12 litres
• Detailed operating instructions
• With convenient pressure display (manometer)
• Powerful & durable
• Integrated pre-filter
• Robust pump housing
• Drain valve on the pump housing and pre-filter
• TÜV Rheinland GS certified - GS tested safety
• IPX8 - protected

Technical specifications:

• Maximum flow: 4500 L / h
• Tank volume: 12 litres
• Pumping height: 4.5m
• Power max .: 100 watts
• Protection class: IPX8
• 2 in 1 adapter: Ø 1¼ inch = 32mm | Ø 1½ inch = 38mm
• Colour: black, blue
• Model Number: MZPP05

Product advantages of filter balls:

• 320g filter balls replace 12kg filter sand
• No more sand in the pool
• Recyclable
• Excellent filter result
• High pump efficiency
• Hand wash balls
• Extends the service life of sand filter systems
• Suitable for all sand filter systems!

Technical specifications:

• Material: 100% polyethylene
• Quantity: 320g
• 320g filter balls ~ 12kg filter sand
• Colour: White

Note for pool owners:

We recommend dismantling the system in winter, especially if there is a risk of frost!

• The connecting pipe between the tank and the pump is located in the pipe of the sand filter system's boiler. Please remove this before commissioning and connect it to the intended location.
• The filling aid must be removed after filling the sand filter system.
• When using filter balls, backwashing must not be carried out in our filter system either!
• If you use swimming pool hoses with a 1½ inch connection, you can cut our adapter to the appropriate hose size in order to ensure maximum flow.
• We recommend that you never fill the boiler to the top so that there is sufficient air circulation.
• Filter balls clean the water in the pool thoroughly, but the use of chlorine is also recommended to prevent algae and green discoloration. Especially when it is very hot.

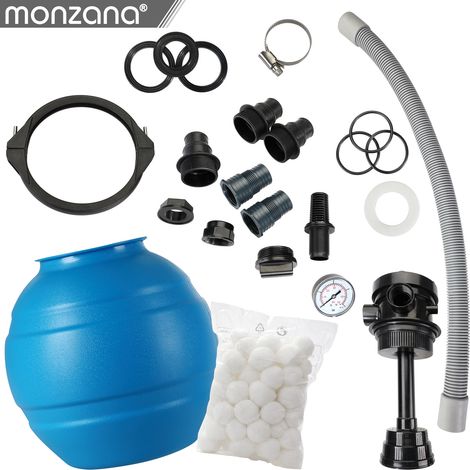

Scope of delivery:

• Sand filter system including pump and accessories
• Operating manual
• 320g filter balls

PLEASE NOTE: Prior to first use, the filter bowl must completely be filled with water, the sand filter system then pumps water automatically. This item is equipped with a 2-Pin EU-plug.An EU to UK conversion / adapter plug is included in the scope of delivery.
