Product information

Description

General description

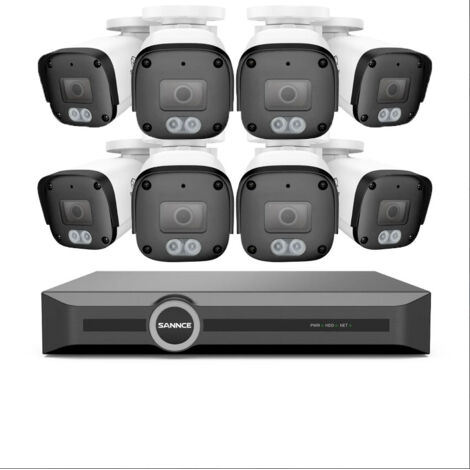

The SANNCE 5MP 8CH Outdoor PoE Security Camera System is designed to enhance your security with advanced features such as human and vehicle detection. This system includes a 5MP IR network bullet camera that provides high-quality video and audio capabilities, making it ideal for both indoor and outdoor use.

Technical specifications

Image Sensor: 1/3" Progressive Scan CMOS

Main Stream: 50 Hz: 20fps (2880x1620), 25fps (2560x1440, 2304x1296, 1920x1080, 1280x720); 60 Hz: 20fps (2880x1620), 30fps (2560x1440, 2304x1296, 1920x1080, 1280x720)

Sub-stream: 50 Hz: 25fps (704x576, 704x288, 640x360, 352x288); 60 Hz: 30fps (704x576, 704x288, 640x360, 352x288)

Wide Dynamic Range: DWDR

Minimum Illumination: Color 0.03 lux (@F2.0, AGC ON); B/W: 0 lux with IR on

Lens: 2.8mm Fixed Focal Length Lens

Angle of View: Horizontal FOV 95.3°, Vertical FOV 54.1°, Diagonal FOV 107.3°

Aperture: F2.0

Storage: Built-in microSD Slot, up to 256GB

Network: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Audio Port: Built-in MIC, Speaker

Video Compression: S+265/H.265/H.264B/H.264M/H.264H

Night Vision Distance: Up to 100 ft/30 m

Operating Power: DC12V±25%, MAX 8W

Operating Temperature: -22 °F – 140 °F/-30 °C – 60 °C

Dimension: 6.45" X 2.6" X 2.6" / 164 X 66 X 66mm

Weight: 0.61 lb./277g

Compatibility and accessories

Supports on-board storage up to 256 GB (microSD card not included)

Compatible with mobile app for remote access

Installation

Supports PoE (Power over Ethernet) for easy installation

Can be powered using DC12V

Usage

Real-time security monitoring with built-in two-way audio

Smart analysis features for human and vehicle detection

Adjustable video parameters including brightness, contrast, saturation, and sharpness

Other information

Features

Width
6.8 cm
Height
6.6 cm
Depth
17.8 cm
Voltage
12 V
Material
Metal

SANNCE 5MP 8CH Outdoor PoE Security Camera System with Human Detection IP67
